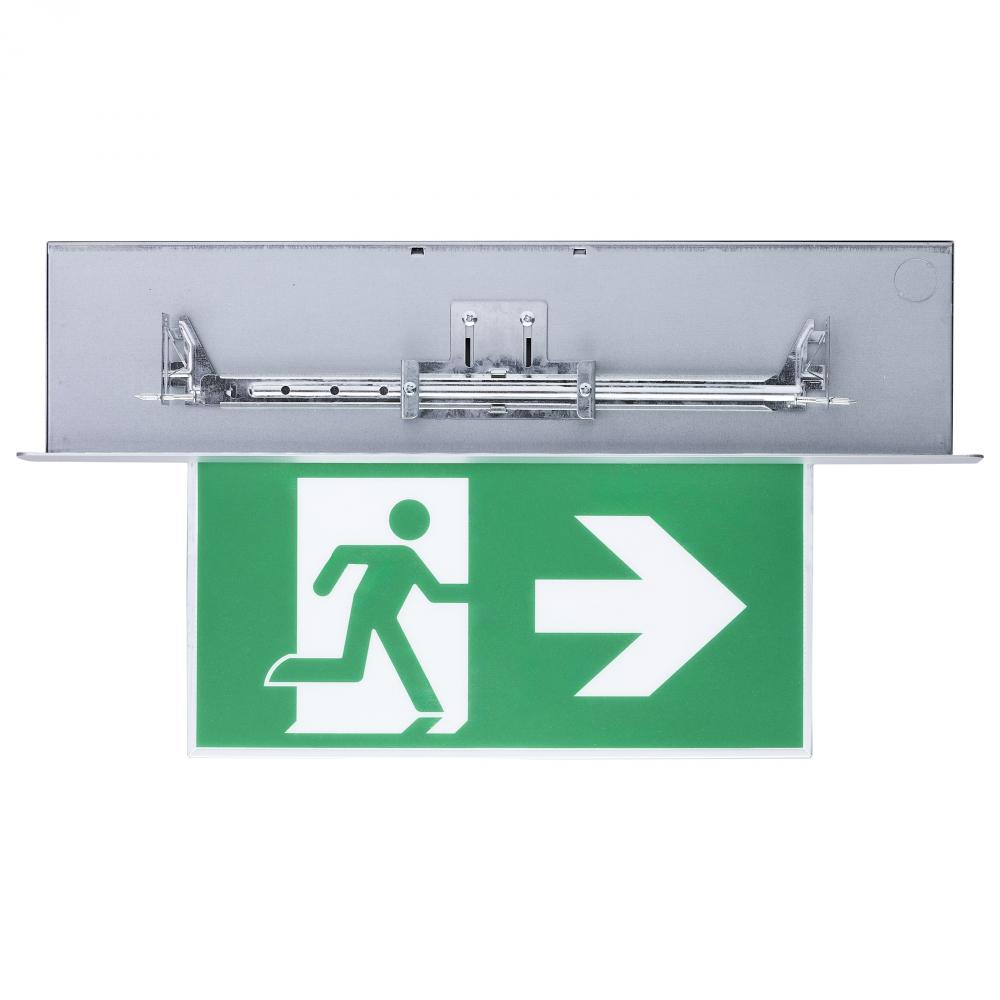

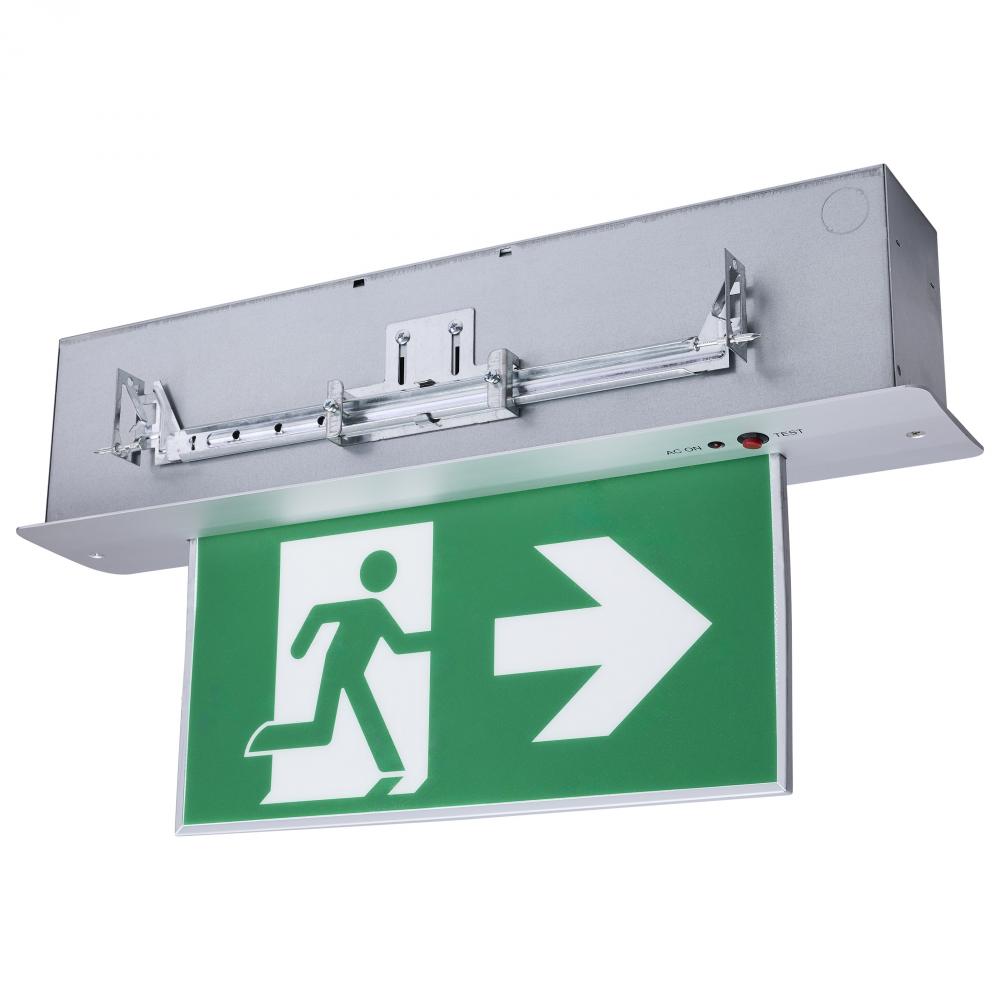

Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Premium Flush Recessed
$257.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer may be Out Of Stock.

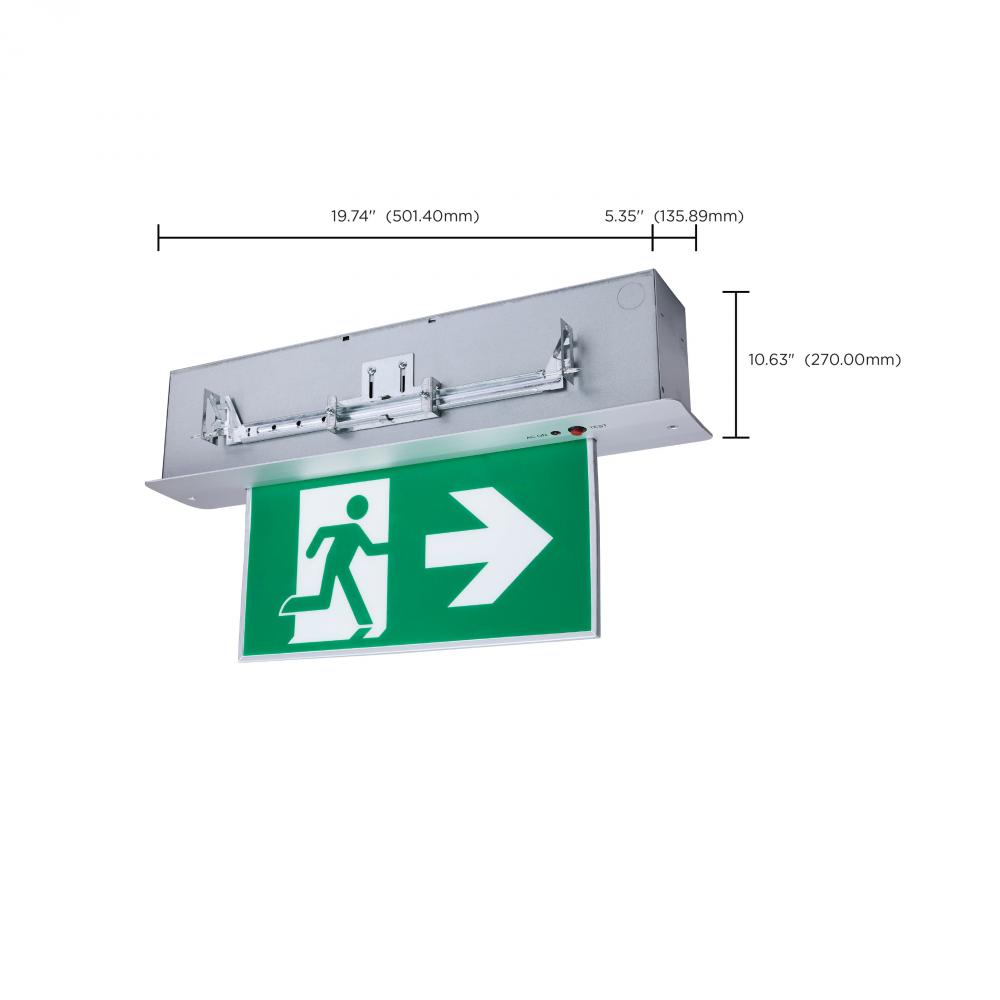

Dimensions
Height: 10.63"
Width: 19.74"
Product Overview
Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Premium Flush Recessed Mounting
Standard Information
Category:
Utility
Subcategory:
Exit Signs
Finish:
Aluminum
Option:
LED
Prop 65
Refinement Options
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Dimmable:
Non-Dimmable
Each Height:
8.07
Each Length:
20.28
Each Width:
6.77
Tariff Code:
9405.61.6000
Warranty:
2-Years
Amps:
0.0250-0.009A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
Non-Compliant - Only for sale in Canada
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Country Of Origin:
China
CRI:
80+
Depth:
5.35
Each Cube:
0.6412
Each Quantity:
1
Feature 1:
Single or Dual Face
Feature 10:
>500 Life Cycles
Feature 2:
Integrated Battery Backup
Feature 3:

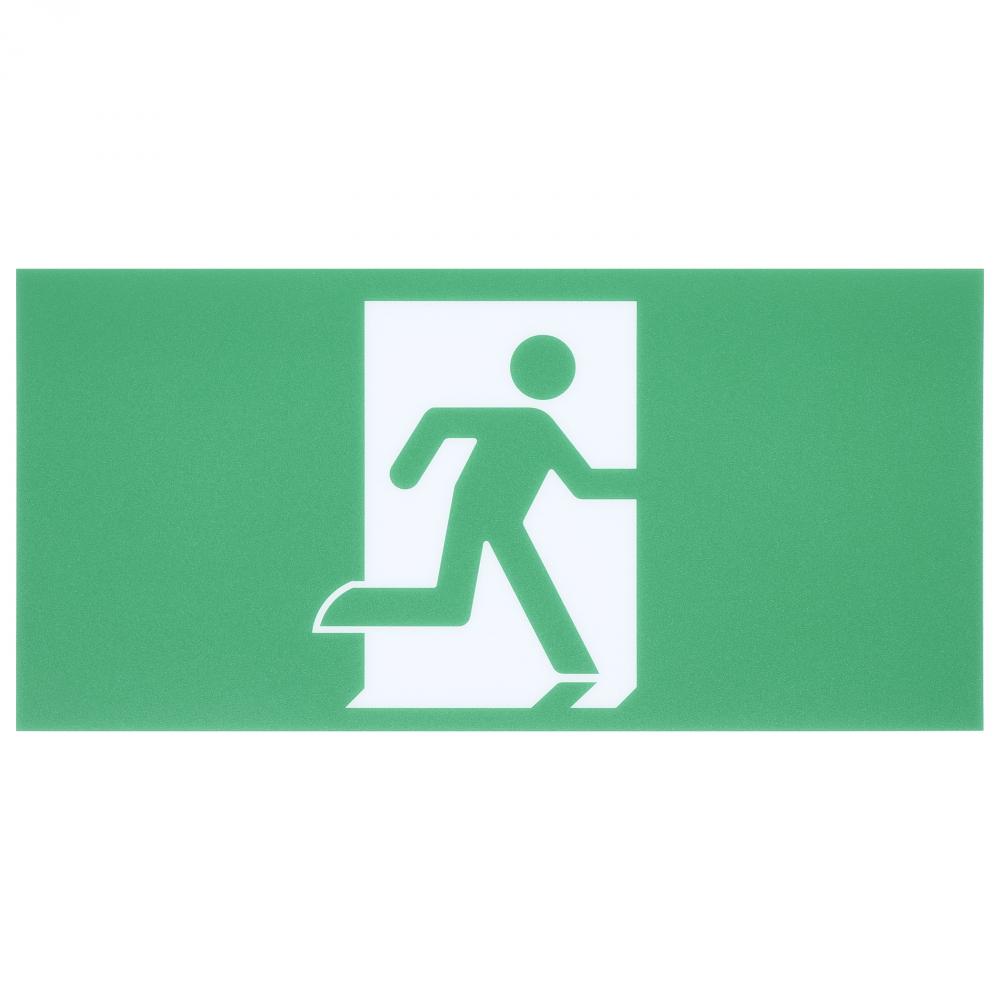

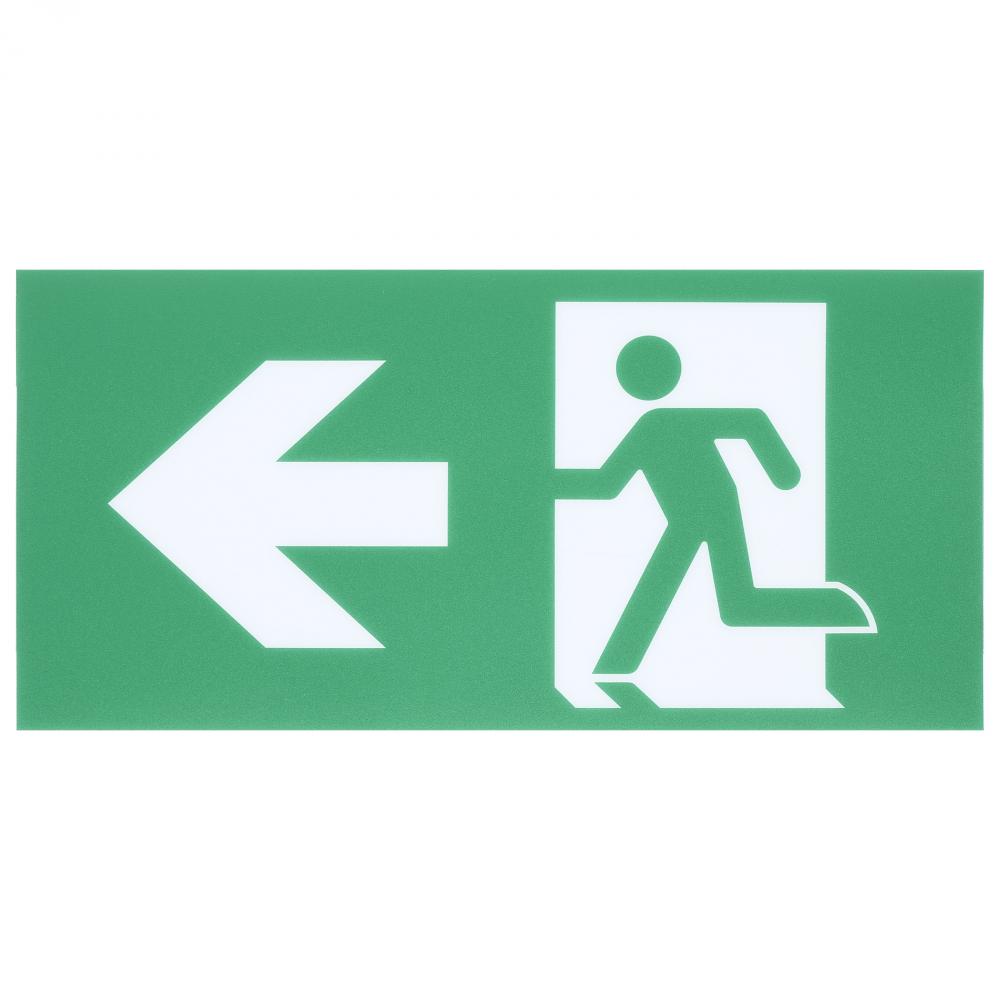

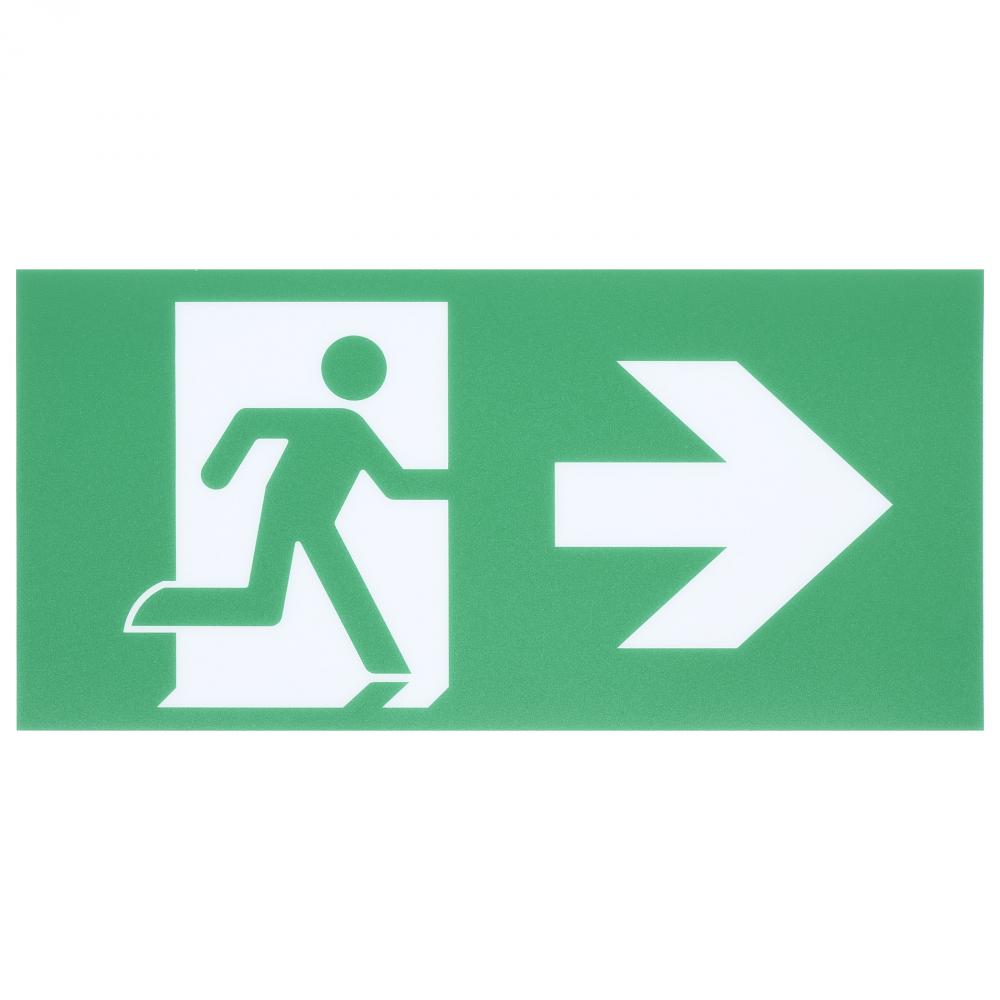

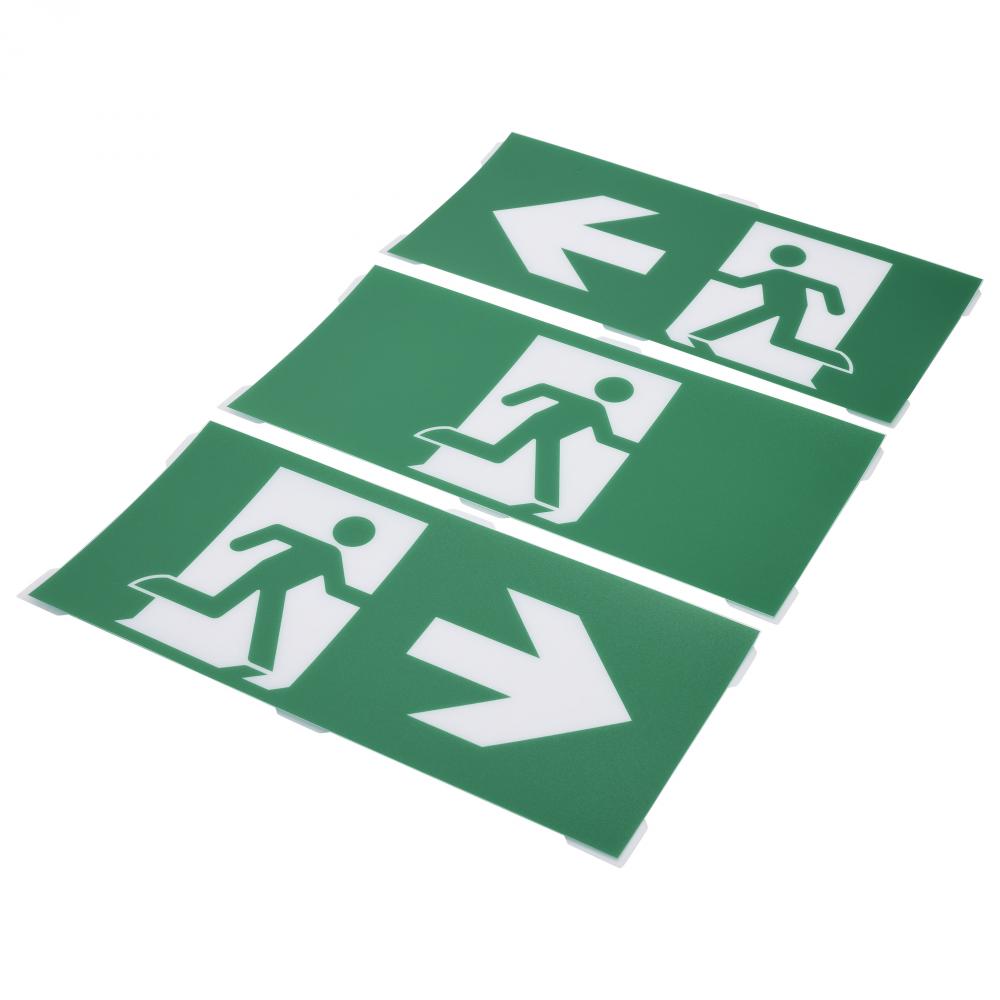

Interchangeable Pictograms
Feature 4:
Recessed Mounting; Accessories Included
Feature 5:
Damp Location Rated
Feature 6:
120-Minute Battery Run Time
Feature 7:
Complies with ICES-005 Class B
Feature 8:
CSA, OSHA, and NFPA Compliant
Feature 9:
Push-to-Test Button
Finish Family:
Metallic
Has Camera:
No
Has Emergency Battery:
Yes
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP40
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Acrylic
Long Description:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrows. With a clean aluminum faceplate
Material:
Aluminum
Mounting Procedure:
Universal
Operating Frequency:
50/60Hz
Operating Temp:
+10C (+50F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.38
Quantity In Pack:
1
R9 Value:
15
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs and Emergency Light Combos. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrows. Comb
Safety Listing:
CSAus
SDS class:
LED_Fixture
Short Description:
EX SIGN-CAN-EL FL-AL
Sloped Ceiling Compatible:
No
Specification Notes:
Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
Temperature (CCT):
5700K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
120%-140%
Wattage Selectable:
No
Weight Lb.:
6.61
