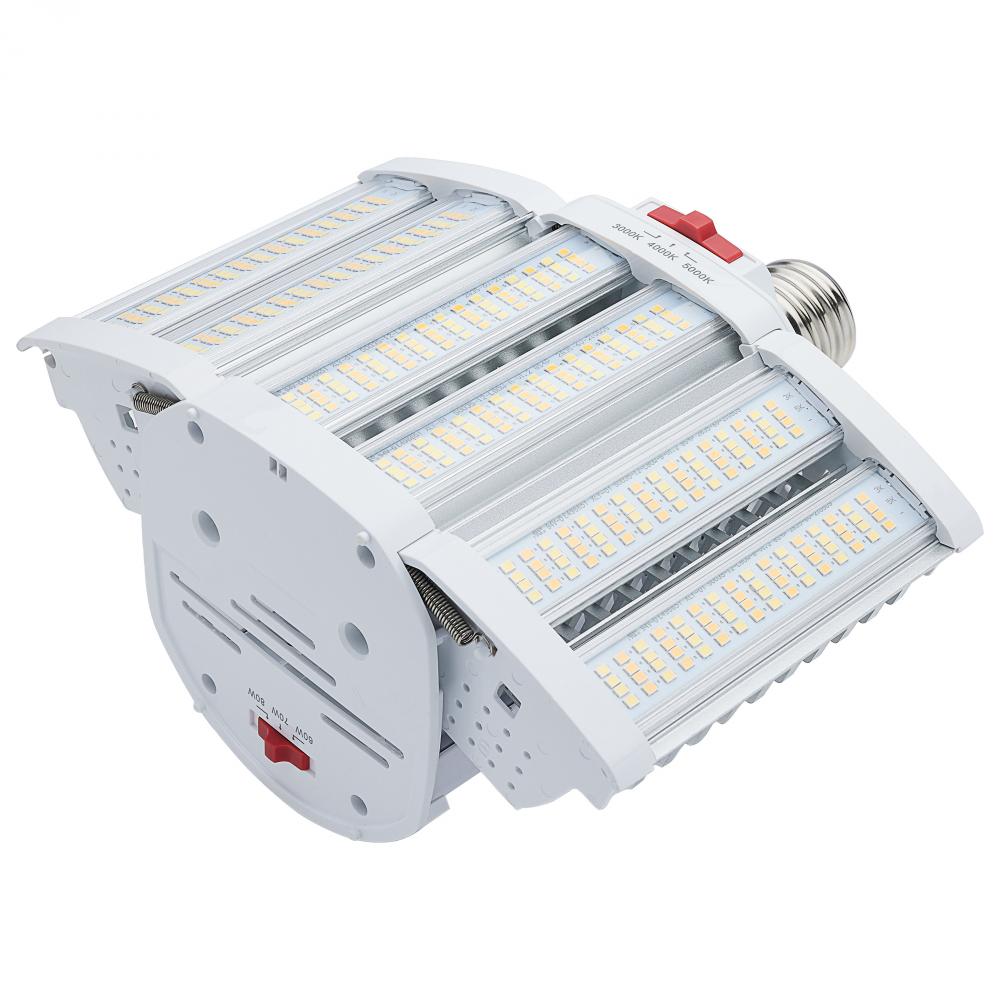

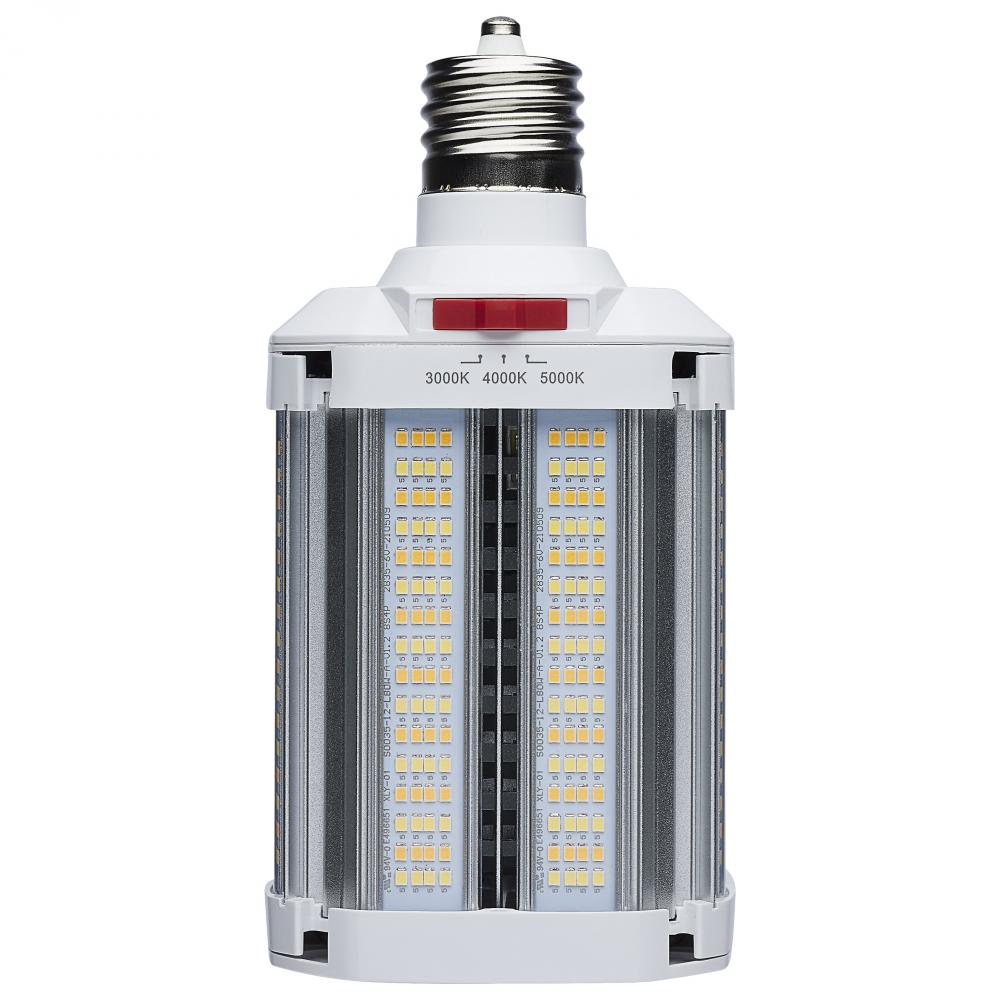

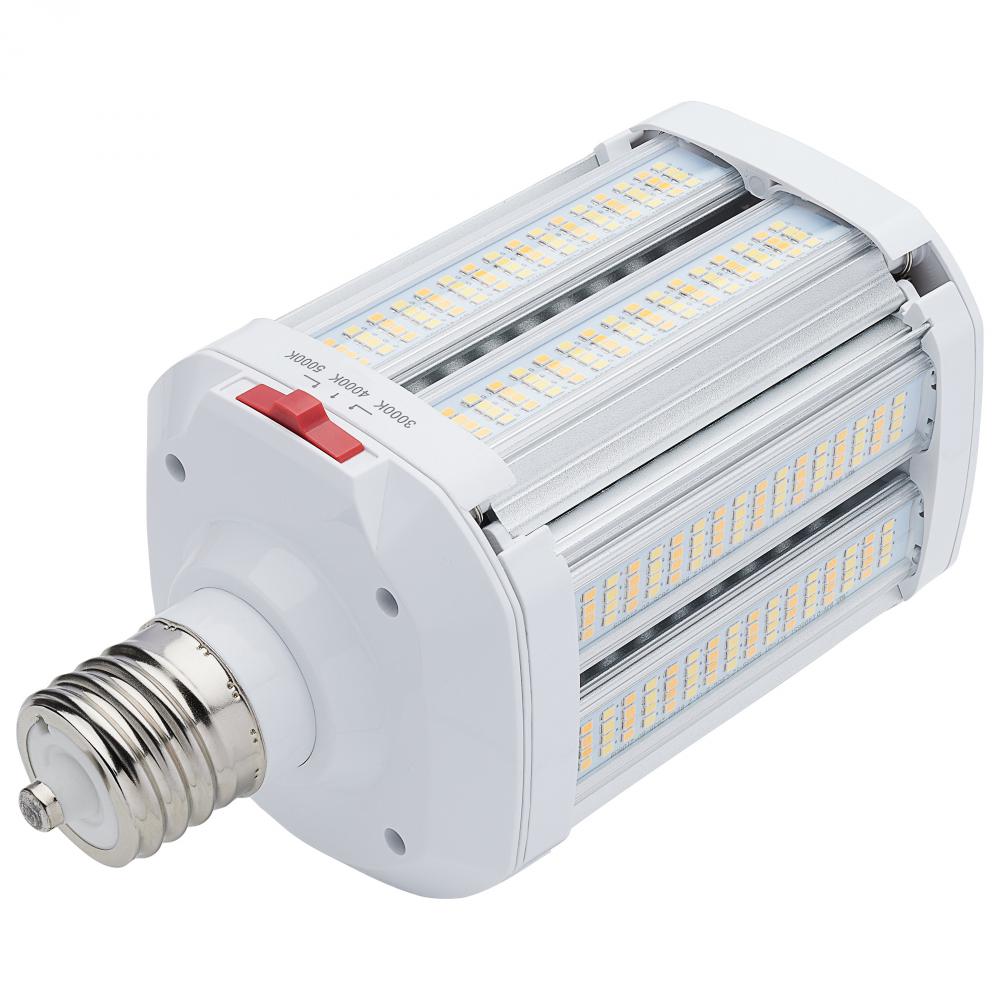

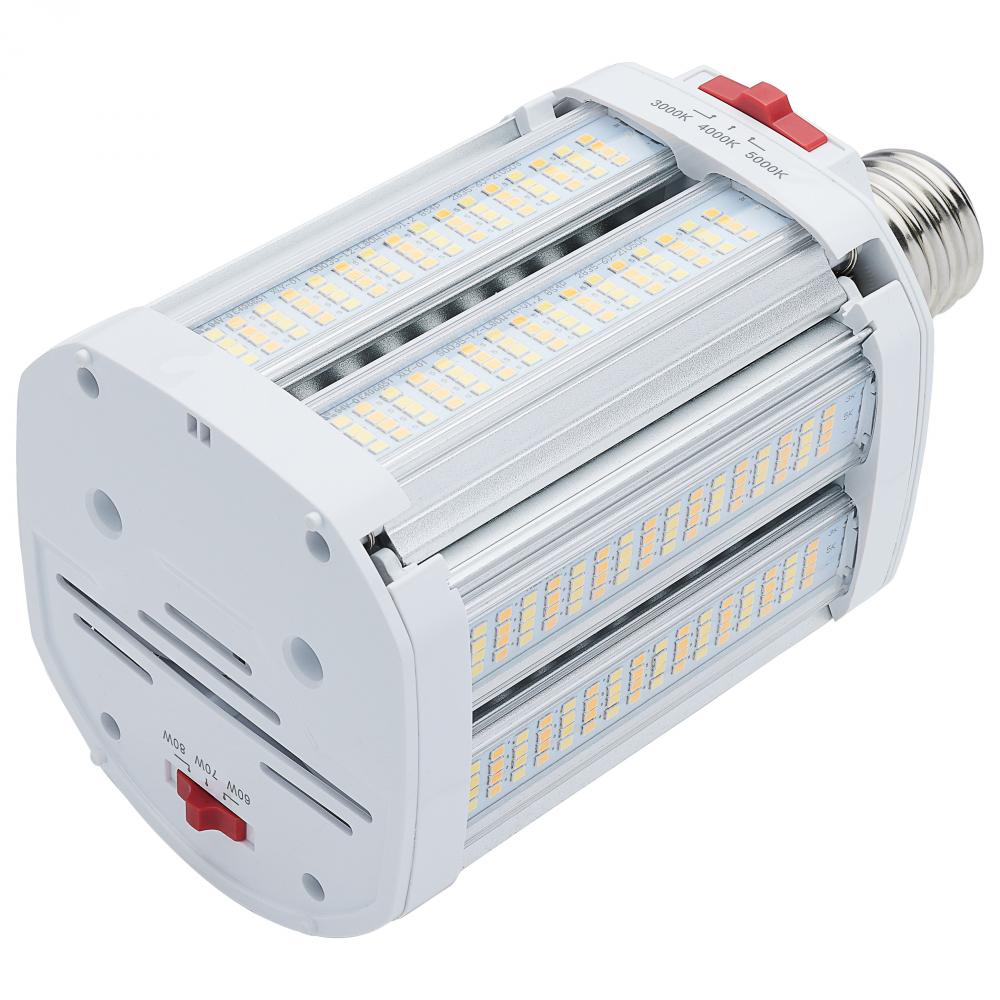

LED Shoe Box Lamp; 60/70/80 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White Finish
$233.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 314 items available.
Dimensions
Width: 8.90"
Product Overview
LED Shoe Box Lamp; 60/70/80 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White Finish
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Refinement Options
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
8.9
EA Length:
10.31
Harmonized Codes:
8539.52.0091
Length:
8.86
Lumens:
9000L/10150L/11200L
Shap Carton Width:
5.71
Ship Carton Height:
6.46
Ship Weight:
3.57
Warranty:
5-Years
Weight:
2.43
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
180

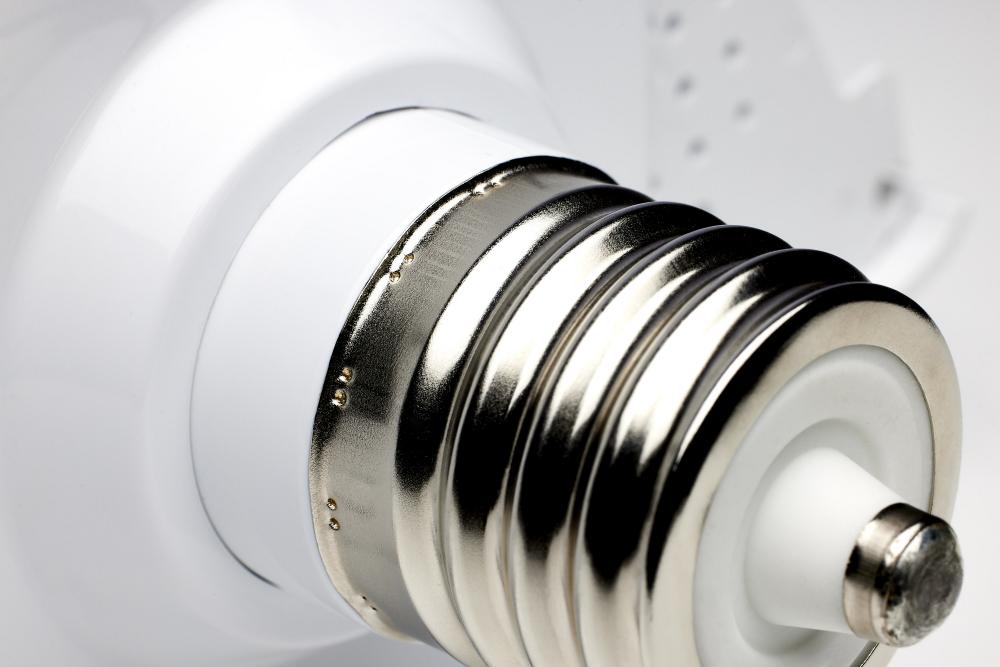

Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.2201
Cartons Per Unit:
1

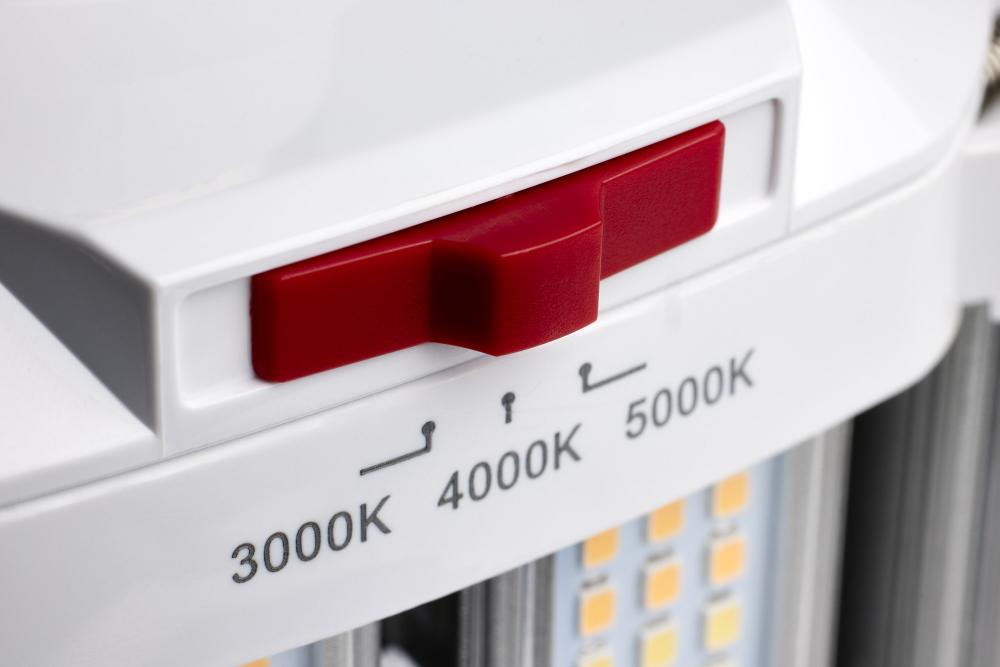

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Natural Light
Country Of Origin:
Cambodia
CRI:
80+

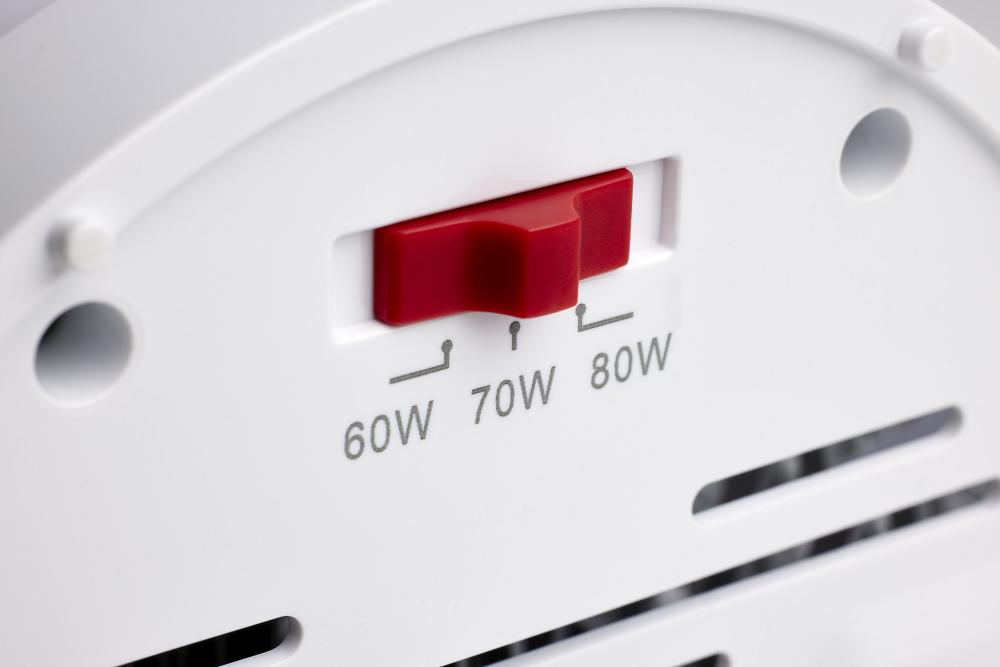

Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-ARHCWO

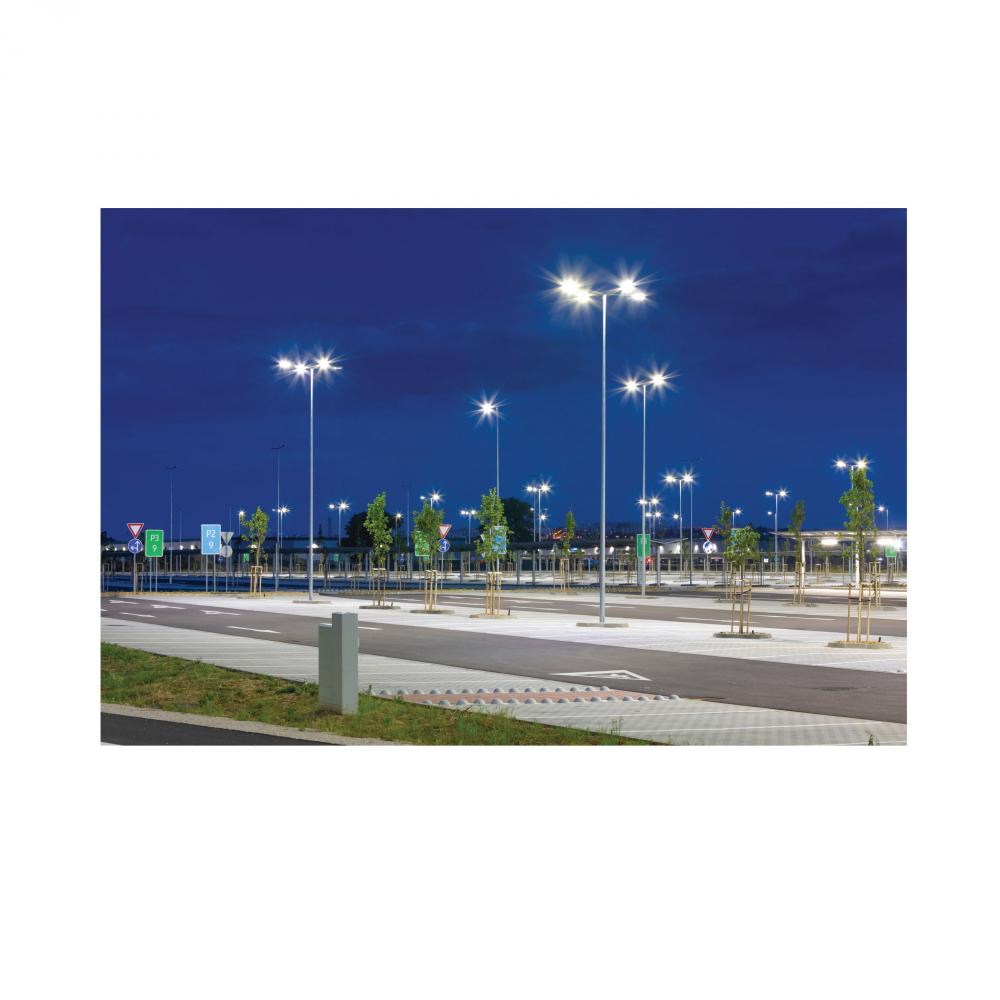

DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Efficacy:
150.00/145.00/140.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable

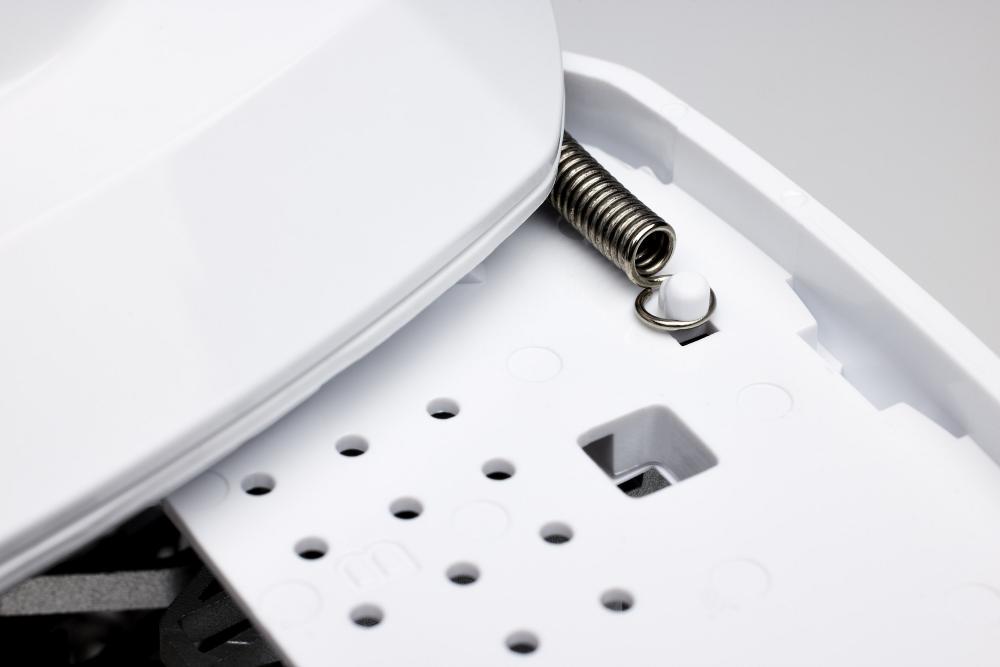

Feature 2:

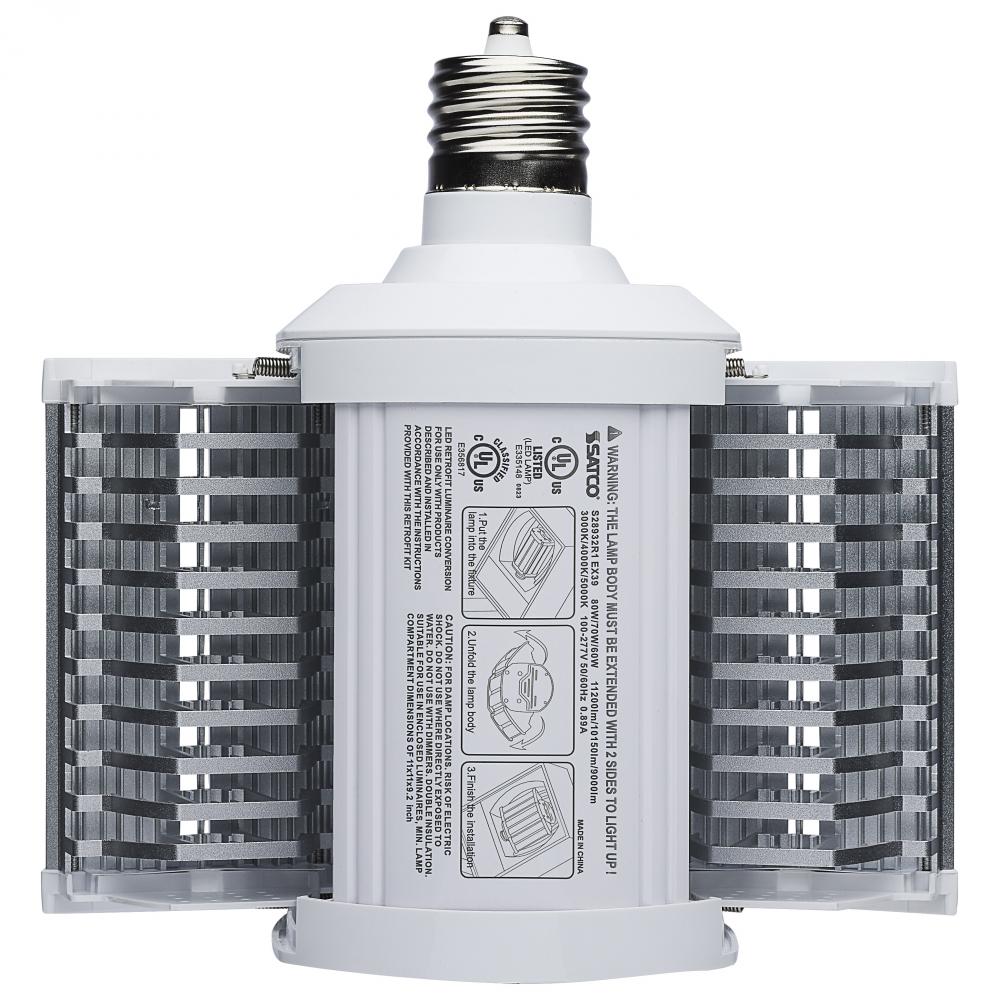

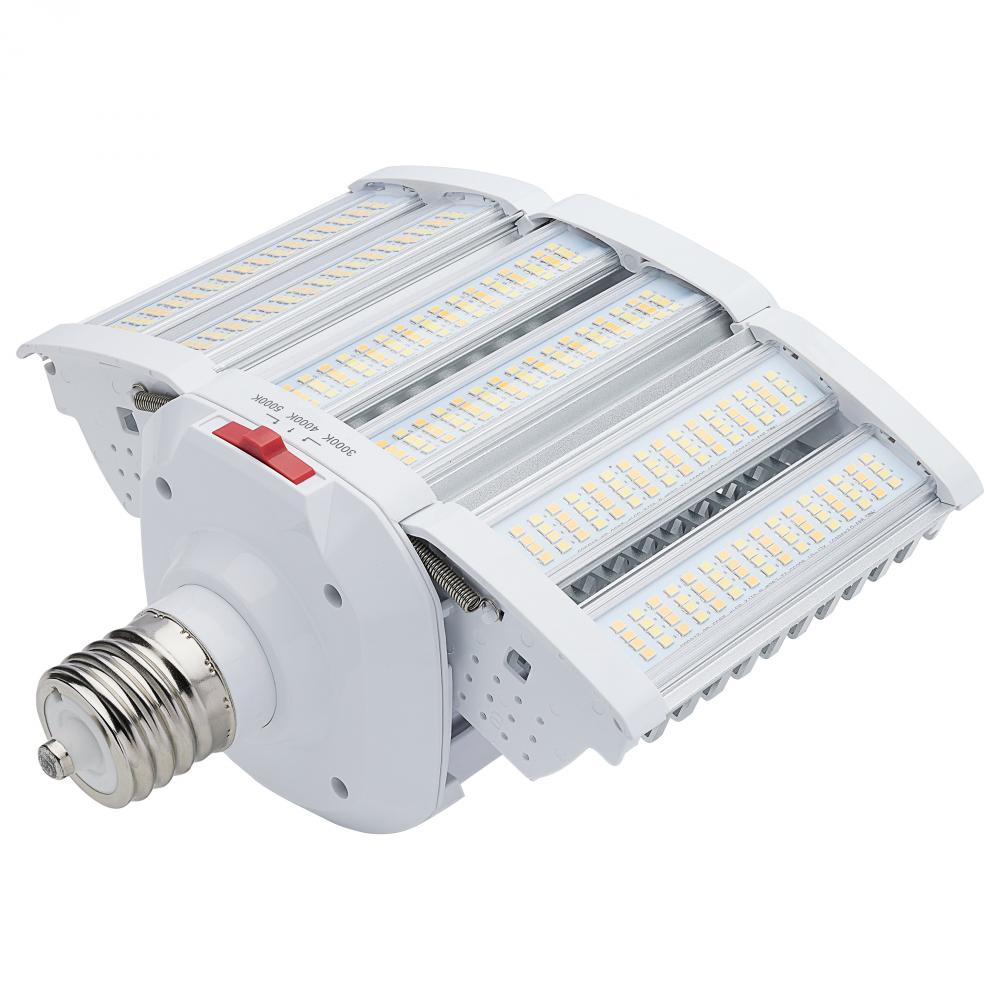

Expandable Light Panels
Feature 3:
320 Degree Rotating EX39 Base
Feature 4:
Integrated 4kV Surge Protection

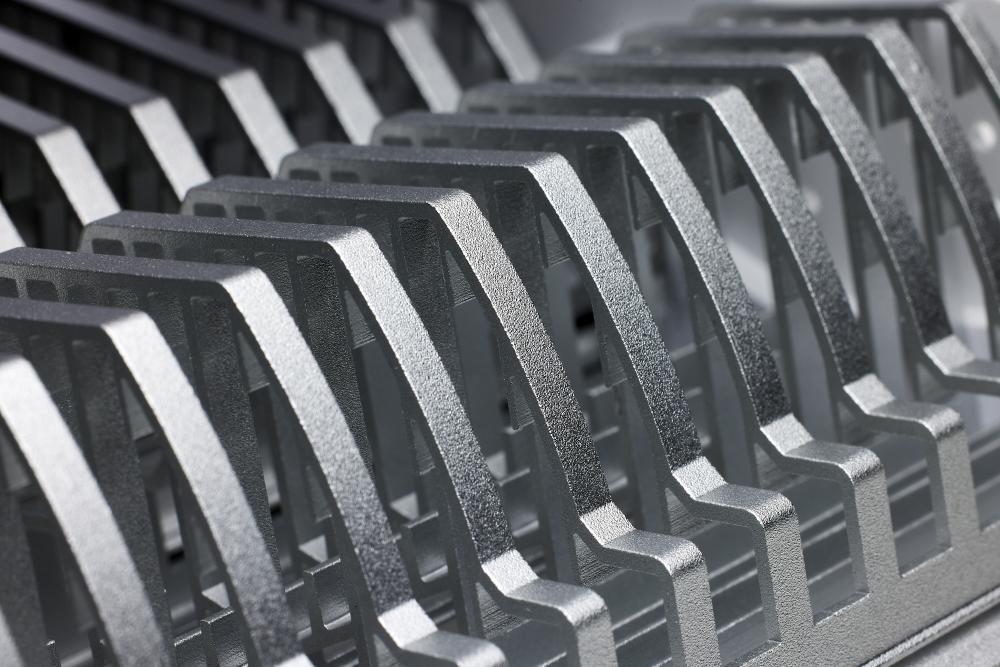

Feature 5:
Advanced Heat Dissipation
Feature 6:
Type B Ballast Bypass
Feature 7:
5 Year Warranty
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:
200W/250W/320W
Housing Color:
White
Incandescent Equivalent:
400W
Indoor Outdoor:
Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
SATCO NUVO's S28932R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each
Material:
Aluminum
Minimum Compartment Size:
Length: 11 in. Width: 11 in. Height: 9.2 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique
SDS class:
LED_Lamp
Short Description:
80W/LED/HID/SB/3CCT/EX39
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Watts:
60W/70W/80W
Country of Origin- Cambodia
