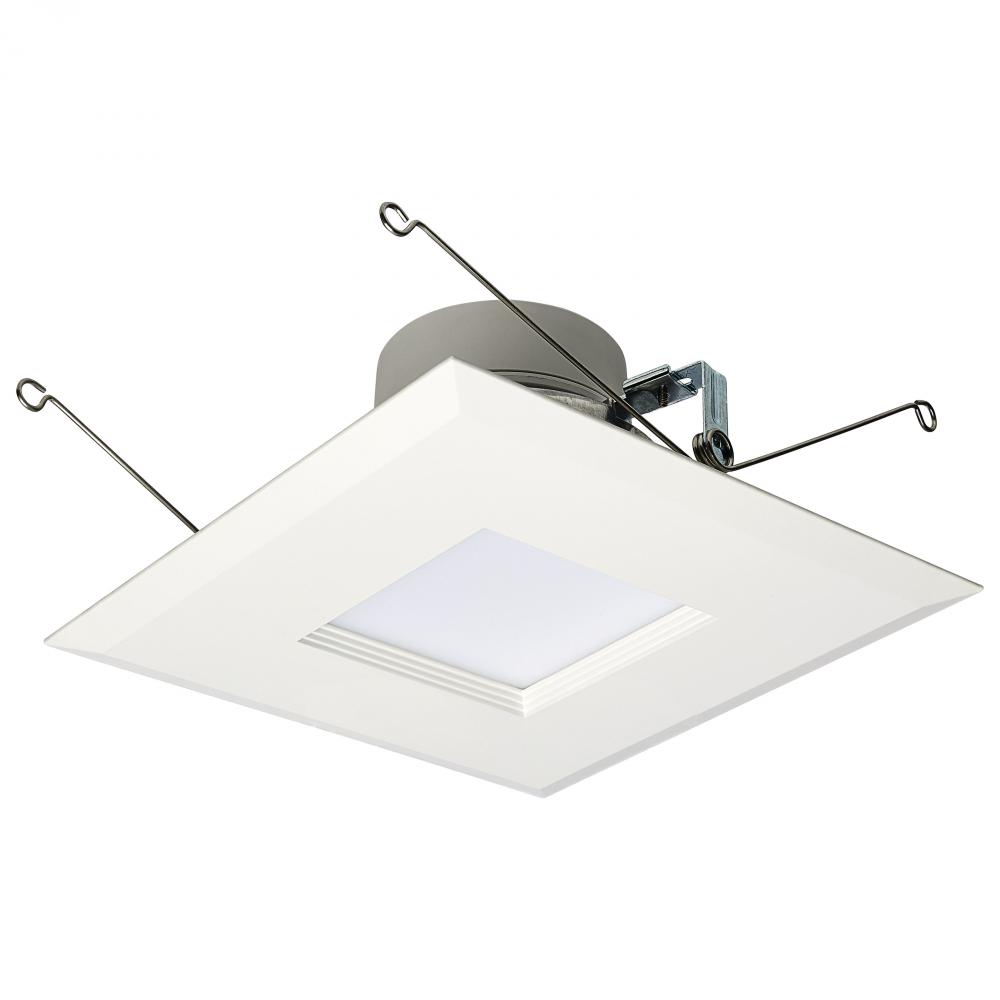

LED Retrofit Downlight; 7.5/10.5/14.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; (40UTX86)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
39
00
/
/ 1
($39.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40UTX86
Dimensions:
Height: 3.37"
Width: 7.13"
White
Availability:
- Manufacturer has 3984 items available.
Recommended Items
Description
Details
Downloads
LED Retrofit Downlight; 7.5/10.5/14.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick and PowerQuick Technology; Square; White Finish
Internal #:
40UTX86
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
Energy Star
, LED
, Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
8.460000000000001
Each Length:
7.6
Each Width:
3.35
Length:
7.13
Lumens:
750L/1050L/1300L
Tariff Code:
8539.52.0091
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.063/0.088/0.121A
ANSI Base:
E26 Adapter
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
Can Size:
5-6 in.
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Triac
Each Cube:
0.1246
Each Quantity:
1
Efficacy:
100.00/100.00/89.66 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-2617828
FCC Compliant:
Yes
Feature 1:
Field Selectable (CCT and Wattage)
Feature 2:
Stepped Baffle for Reduced Glare
Feature 3:
90 CRI
Feature 4:
E26 Adapter Included
Feature 5:
T20 and T24 Compliant
Feature 6:
Aluminum Construction with PolyCarbonate Lens
Feature 7:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
No
Incandescent Equivalent:
100W
Includes:
E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's new S18800, LED Field Selectable Retrofit Downlight, is the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows
Material:
Aluminum ADC12
Mounting Procedure:
Recessed Retrofit
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
60
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Field Selectable Retrofit Downlights are the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows for the pe
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
14.5LED/RDL/5-6/WS/5CCT/SQ
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
Yes
Weight Lb.:
0.8100000000000001
