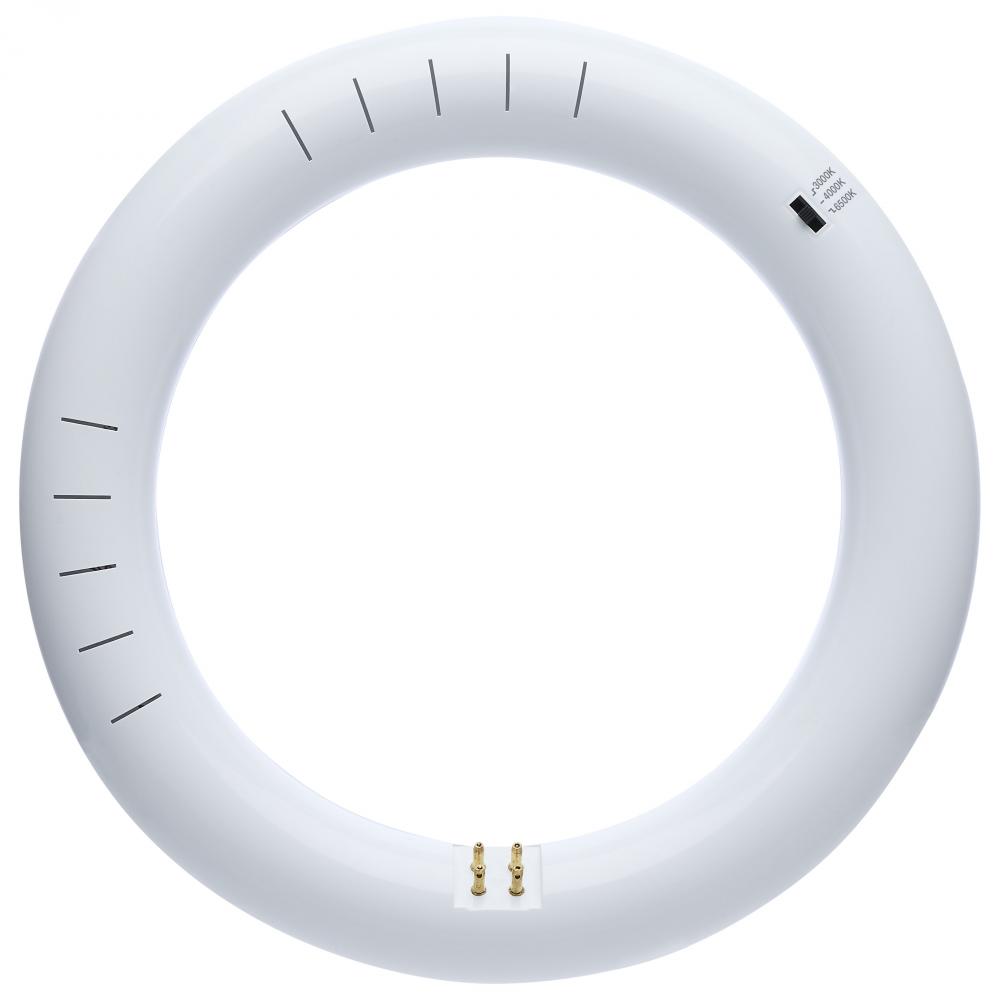

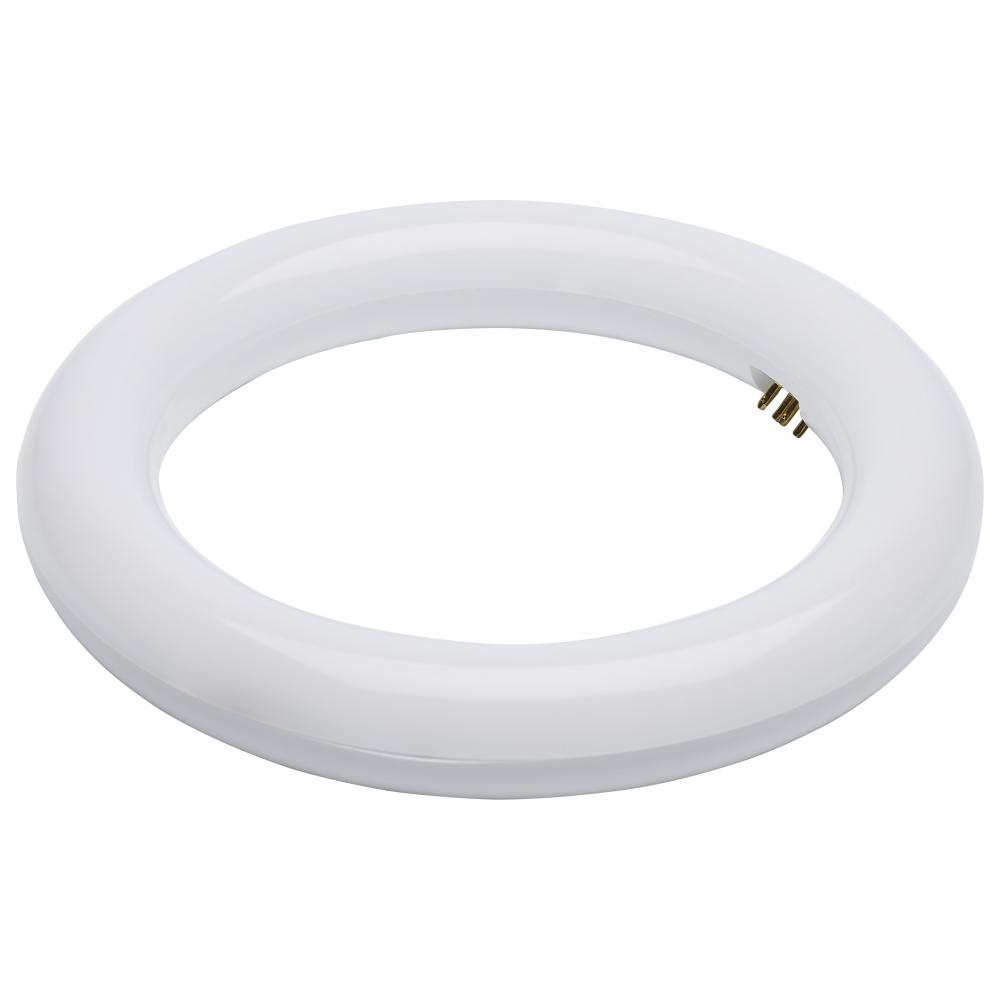

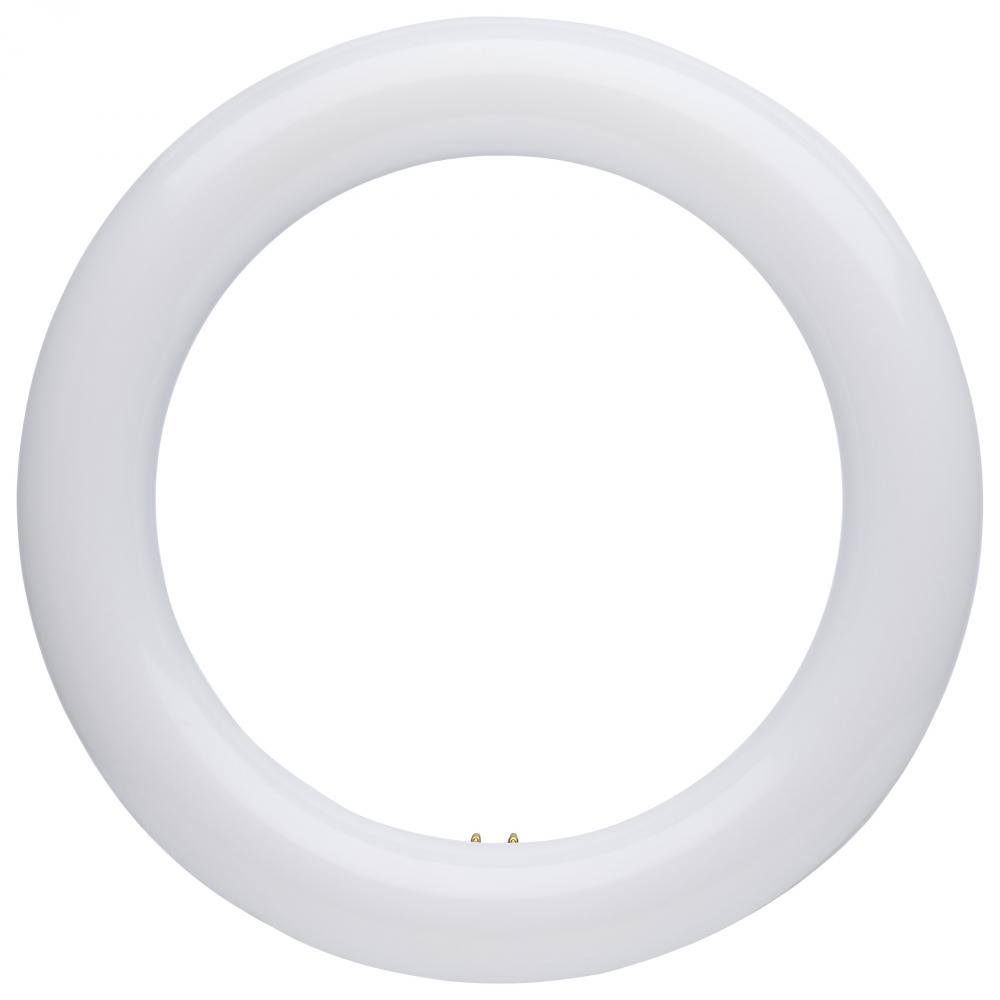

LED Circline; 11 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt : 40UTY90

Return to Catalog

Part Number: 40UTY90 / Vendor ID #: 4799

LED Circline; 11 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt

$30.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 4816 items available.

Dimensions

Width: 1.20"

Product Overview

LED Circline; 11 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

Frosted

Refinement Options

Category:

LED

Sub-Category:

LED T9 Circline

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/6500K

Bulb Shape:

Diameter:

1.2

EA Length:

8.46

Harmonized Codes:

8539.52.0010

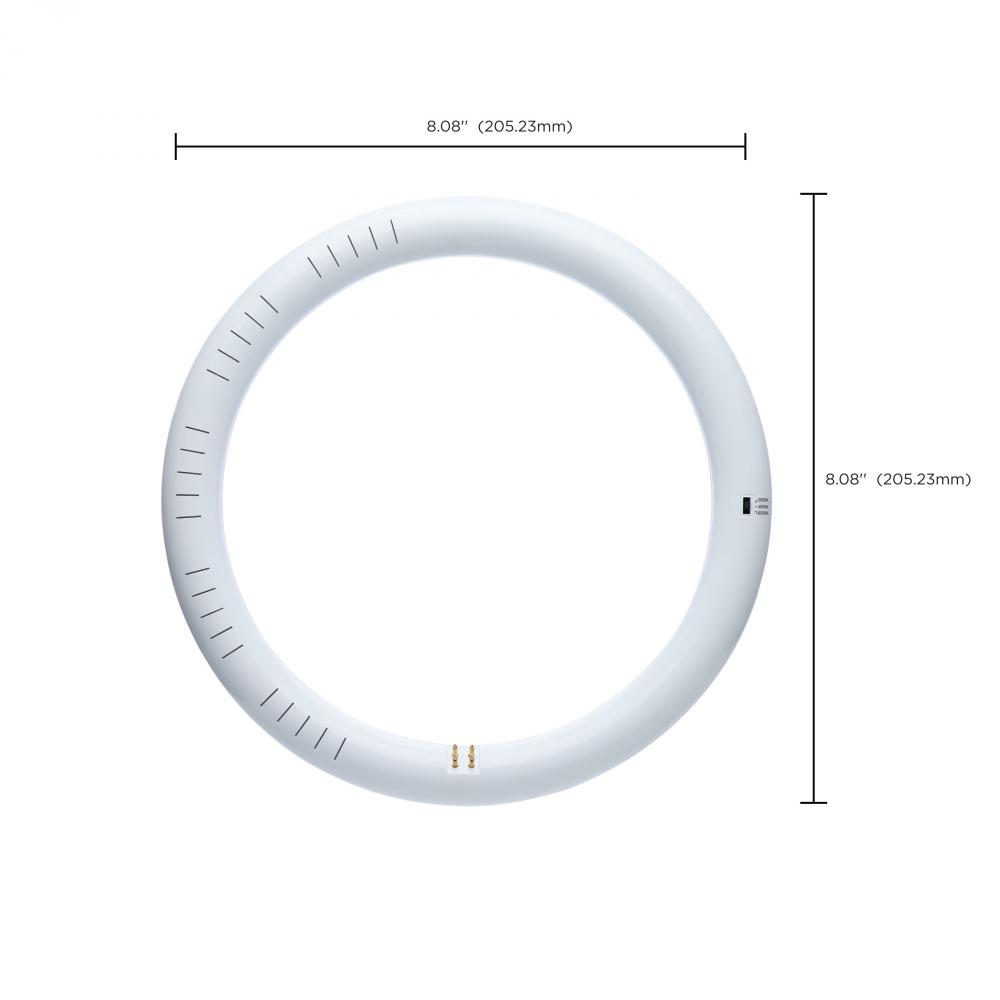

Length:

8.08

Lumens:

1300L/1400L/1350L

Shap Carton Width:

1.38

Ship Carton Height:

8.46

Ship Weight:

0.6

Warranty:

5-Years

Weight:

0.37

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A, Electronic only) or Ballast Bypass (Type B)

Beam Spread:

180

Bulb ANSI Base:

G10q

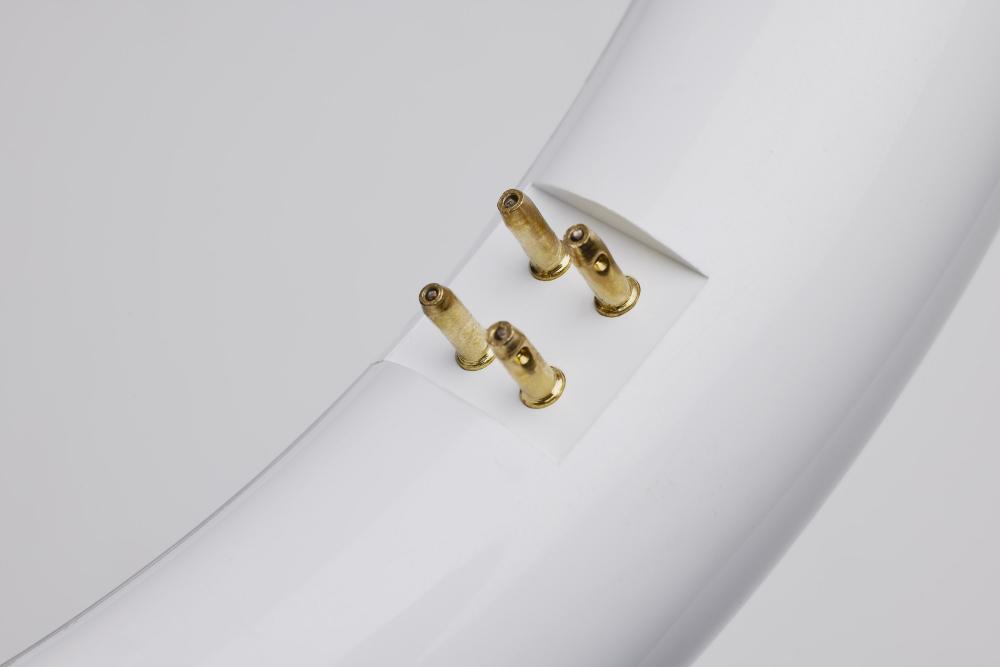

Bulb Base:

G10q (4-Pin)

Bulb Finish:

Frost

Carton Cubic Feet:

0.0572

Cartons Per Unit:

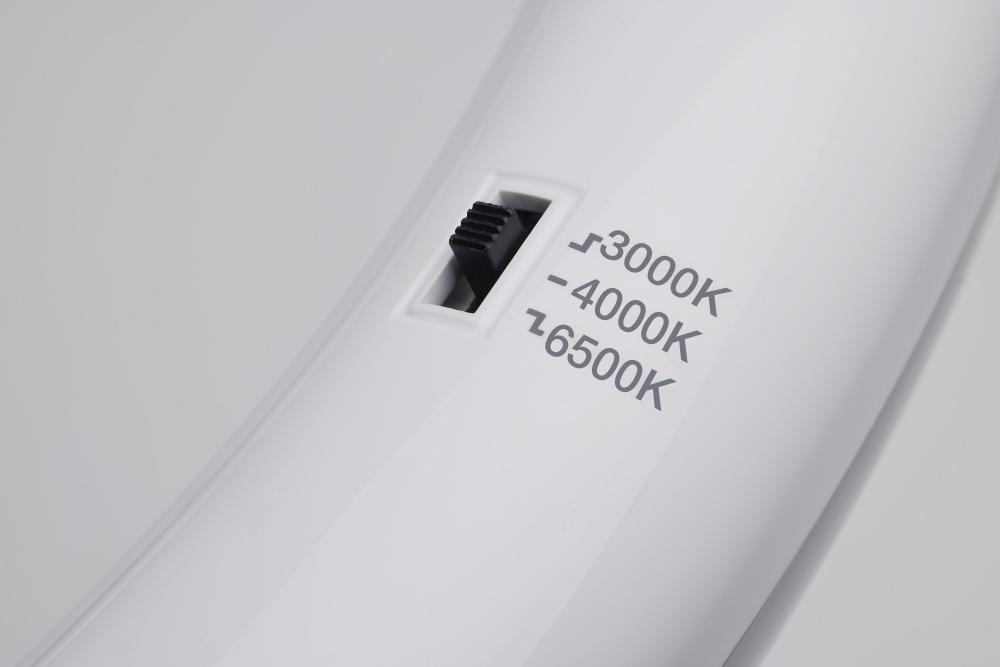

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

Vietnam

CRI:

80+

DLC Approved:

Efficacy:

118.18/127.27/122.73 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 10:

180 Degree Beam Angle

Feature 2:

Range Voltage 120V-277V

Feature 3:

Dual Mode Type A/B

Feature 4:

Damp location rated

Feature 5:

Rated for Enclosed Fixtures

Feature 6:

50,000 Hour Functional Life

Feature 7:

5 Year Warranty

Feature 8:

Non-Dimmable

Feature 9:

G10q Base

Flourescent Equivalent:

22W

Has Camera:

Has Emergency Battery:

Housing Color:

Frost

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp Filament:

LED

Lens Finish:

Frost

Location Rating:

Damp

Long Description:

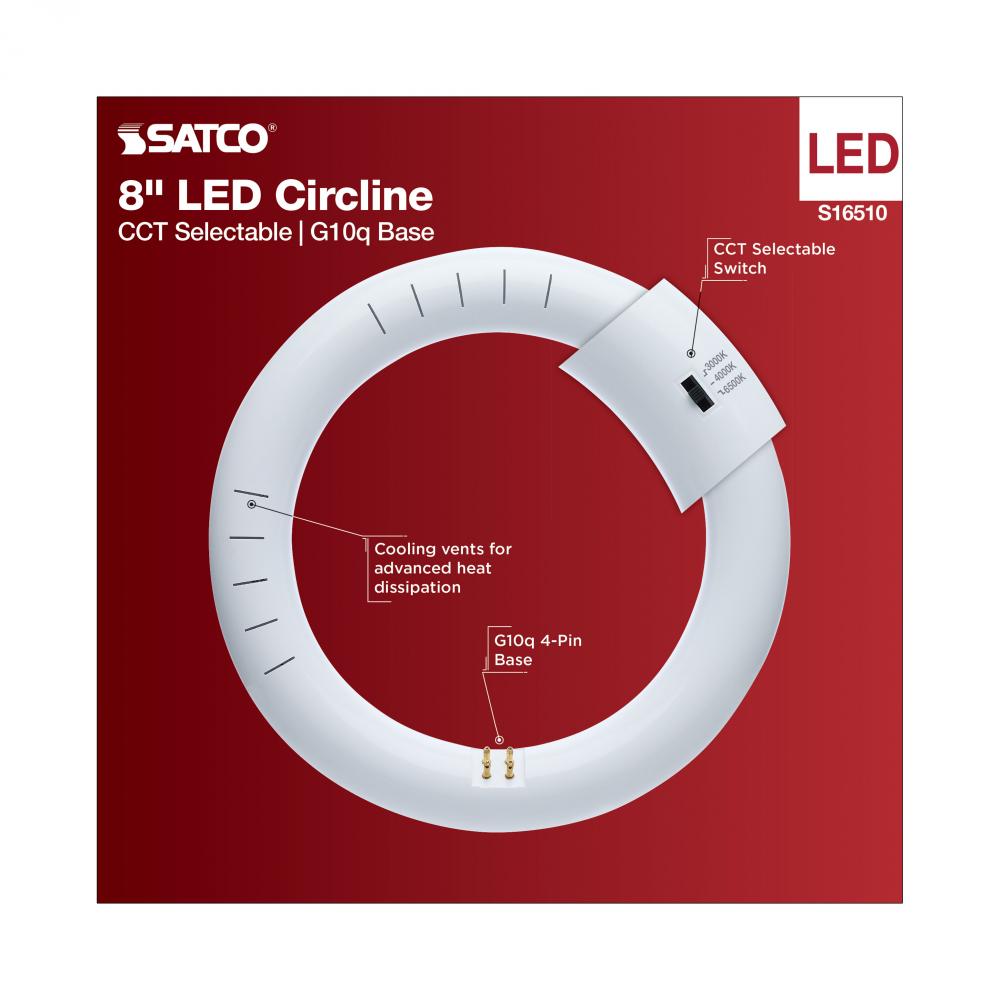

SATCO NUVO's S16510 LED 8-Inch Circline lamp is ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose

Material:

Polycarbonate (PC)

Minimum Compartment Size:

Length 11.4 in. Width 11.4 in. Height: 3.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Circline lamps are ideal for upgrading traditional fluorescent lighting to more energy efficient lighting in shallow, round ceiling and wall mounted fixtures. CCT selectable, choose from warm 3000K, neutral 4000K or choose 6500K to bri

SDS class:

LED_Lamp

Short Description:

FC8T9/LED/CIR/CCT/DM/A-B

Specification Notes:

Only compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 5.71 in.

Style:

Utility

Surge Protection:

Built-in surge protection - 2.5KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

25%

Wattage Selectable:

Watts:

11W

Country of Origin- Vietnam
