Part Number: 40JFWYQ / Vendor ID #: 4800

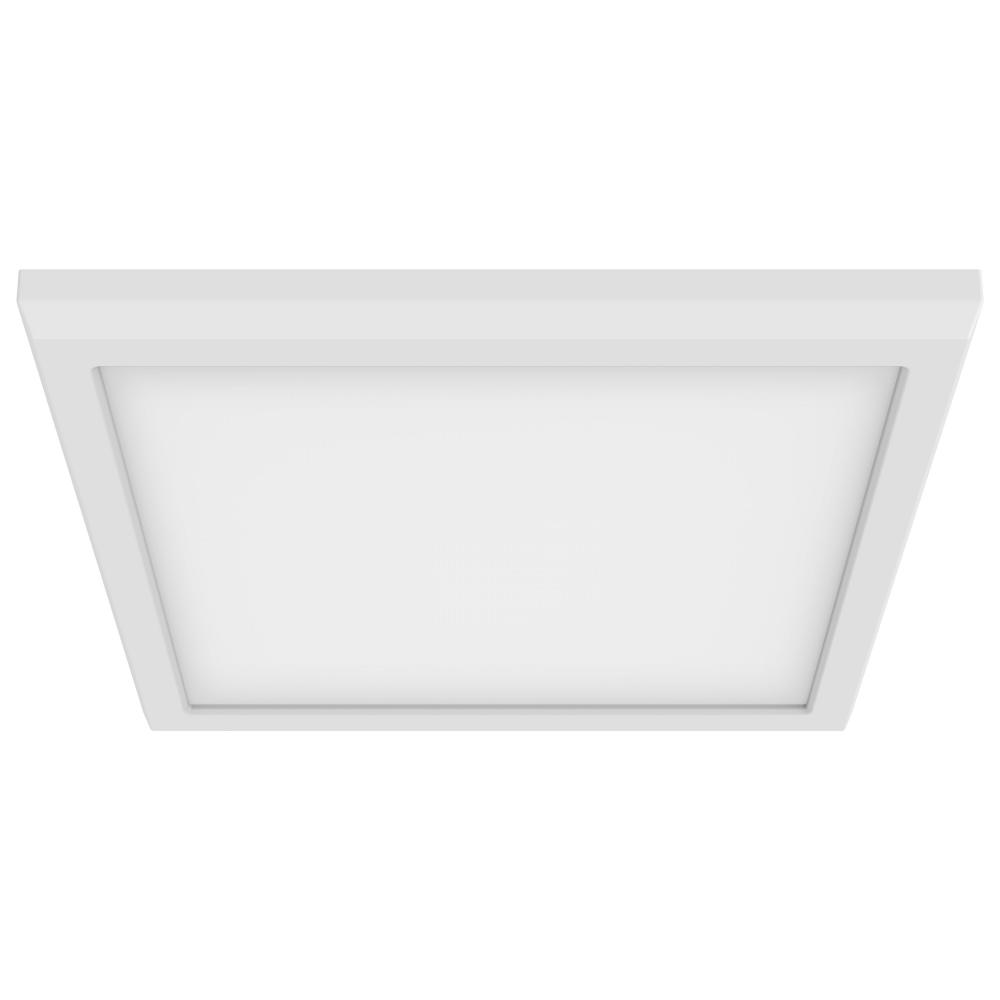

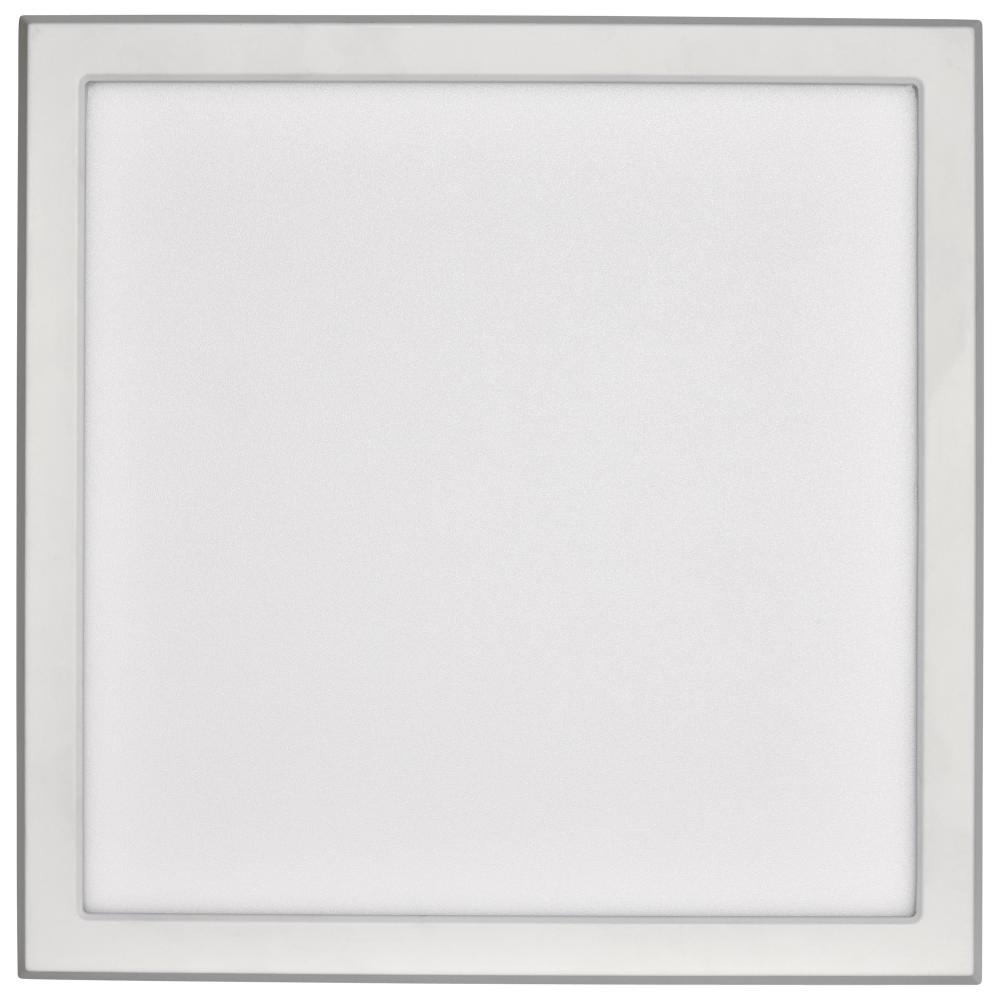

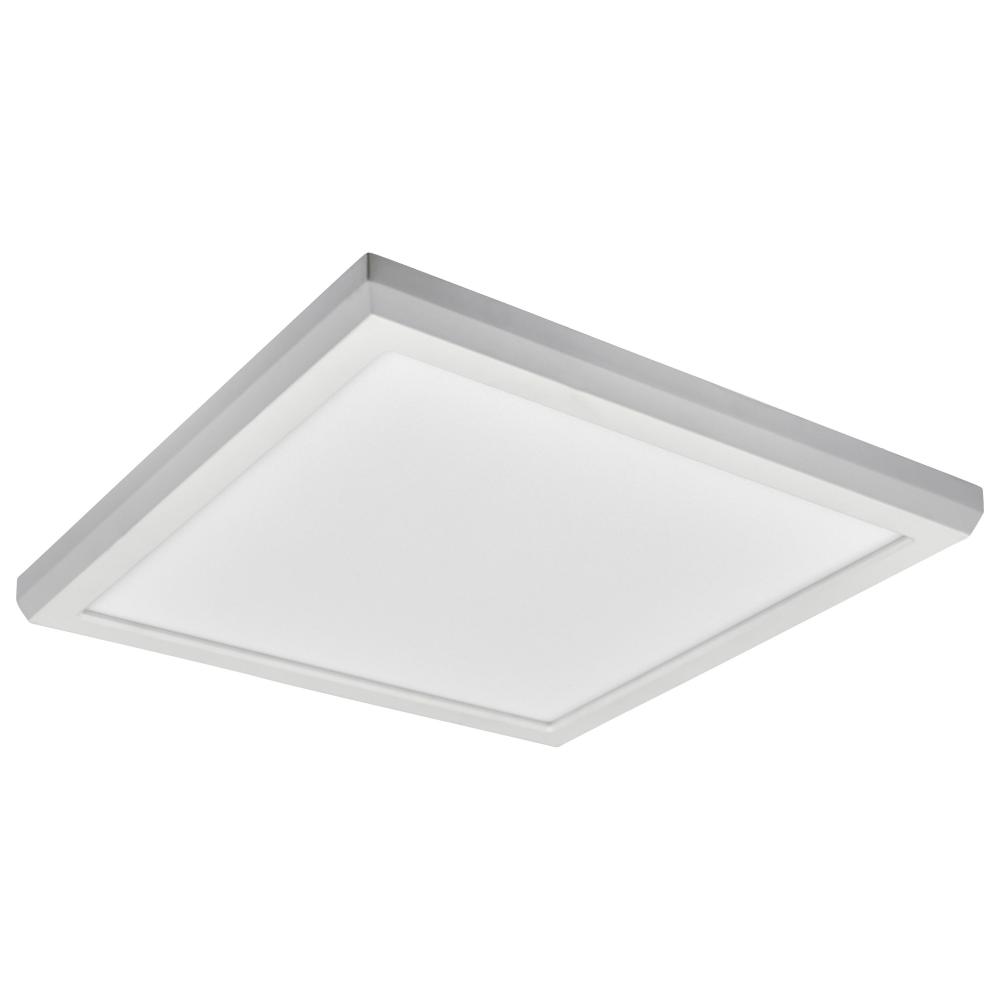

Blink Pro - 13W; 9in; LED Fixture; 3000K; Square Shape; White Finish; 120V/277V; 0-10V Dimming
$89.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 224 items available.

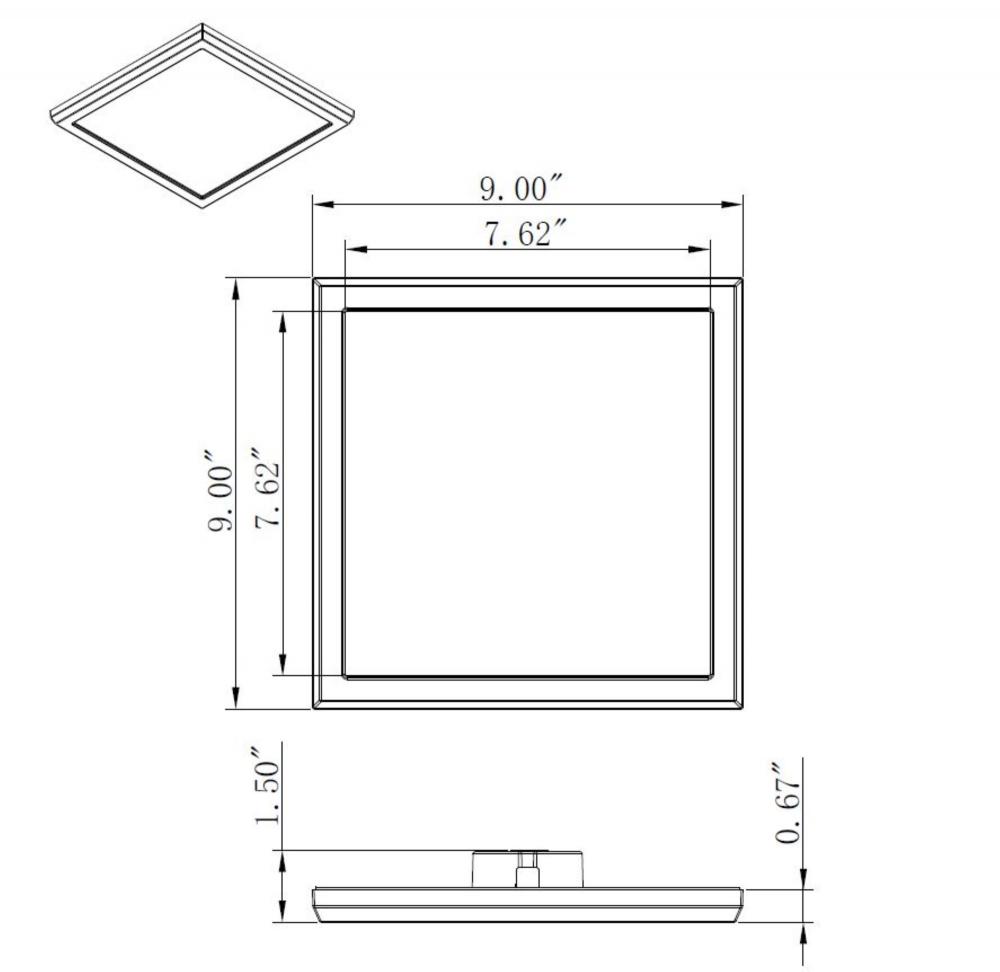

Dimensions
Height: 0.67"
Width: 9.00"
Blink Pro - 13W; 9in; LED Fixture; 3000K; Square Shape; White Finish; 120V/277V; 0-10V Dimming
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Finish:
White
Option:
LED
Prop 65
Lumens:
1101-1600
Kelvin:
2501-3000
Category:
Close-to-Ceiling
Sub Category:
Edge Lit
Style:
Utility
Additional Info:
UGR - 25.30; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes; at 277 Volts THD <30%
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White
Dimmable:
Yes-Dimmable
Each Height:
9.210000000000001
Each Length:
9.210000000000001
Each Width:
1.81
Length:
9
Lumens:
1200L
Tariff Code:
9405.11.8020
Warranty:
5 Year Limited - Fixtures
Amps:
0.108/0.047A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Closet Rated:
No
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
Each Cube:
0.0888
Each Quantity:
1
Efficacy:
92.31 LPW
FCC Compliant:
Yes
Feature 1:
Integrated LED featuring 13 watts featuring 1200 lumens, 3000K in soft white, 90 CRI
Feature 2:
Fixture is dimmable, features 1200 lumens, with a beam spread of 100
Feature 3:
9 inch Length x 9 inch Width x 0.67 inch Height
Feature 4:
White Finish with Acrylic Panel
Feature 5:
Ideal for corridors, closets, kitchens, bathrooms, bedrooms, including outdoors as they are wet location rated with closed ceiling applications
Feature 6:
Rated for 50,000 hours
Feature 7:
5 Year warranty
Feature 8:
Visit Satco.com for optional accessories: 9 inch square extension collar; White - 25-1724, Black - 25-1725, Bronze - 25-1726
Feature 9:
Easy installation with included instructions
Finish Family:
White
Fixture shape:
Square
Flicker Free:
No
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
Installation Notes:

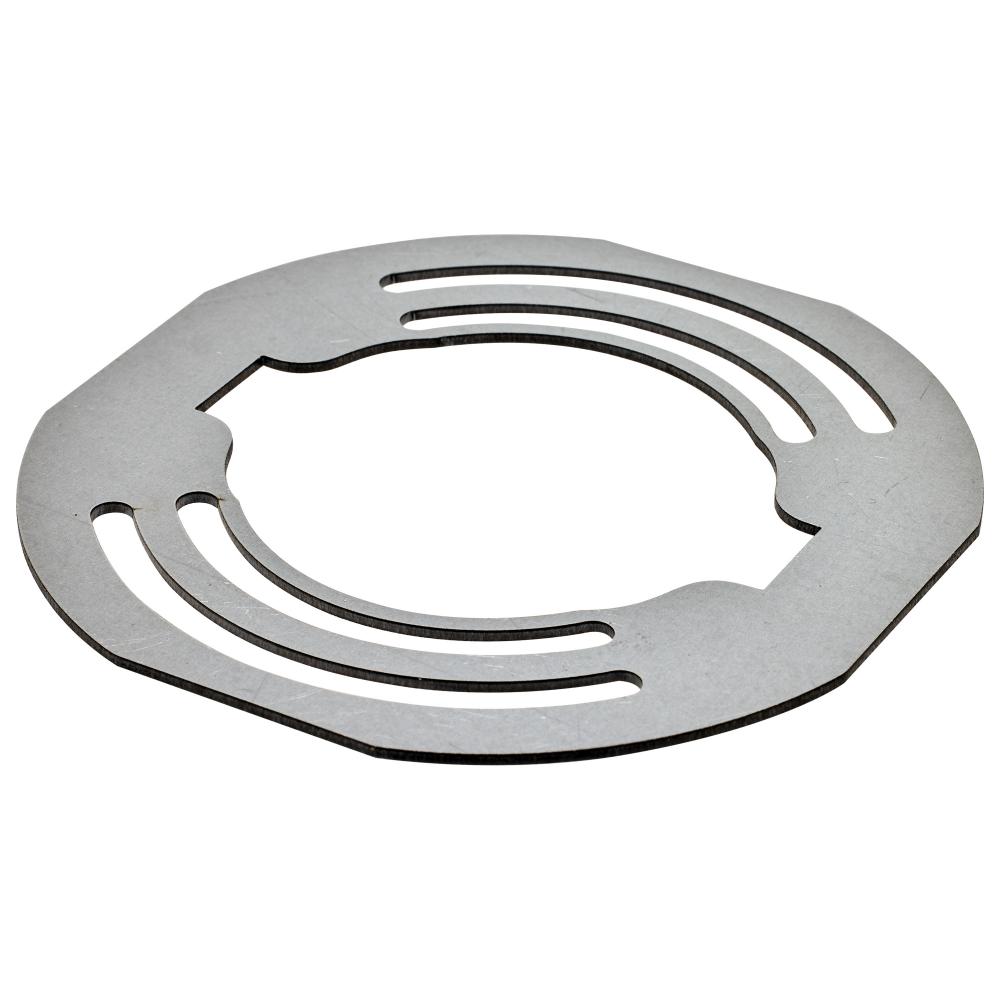

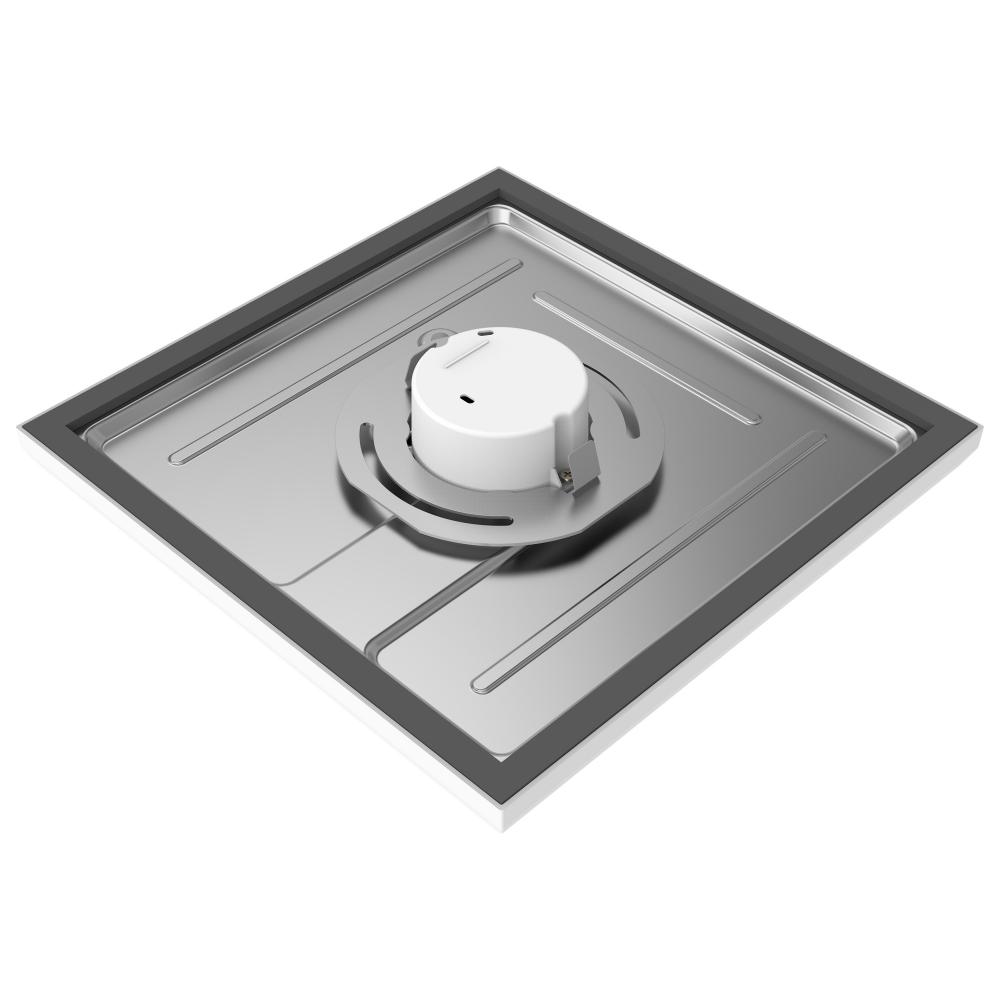

Surface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
From designer aesthetics to state of the art technology, BLINK's fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and BLINK Pro 62-1729 is the ideal fixture for installations where space is at a premiu
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
From designer aesthetics to state of the art technology, BLINK's fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and BLINK Pro is the ideal fixture for installations where space is at a premium. The P
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
BLINK 13W LED 9" SQ WH 0-10V
Sloped Ceiling Compatible:
Yes
Specification Notes:
Overall height of fixture and driver: 1.50"
Temperature (CCT):
3000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Weight Lb.:
1.48
