Part Number: 40JFR10 / Vendor ID #: 4799

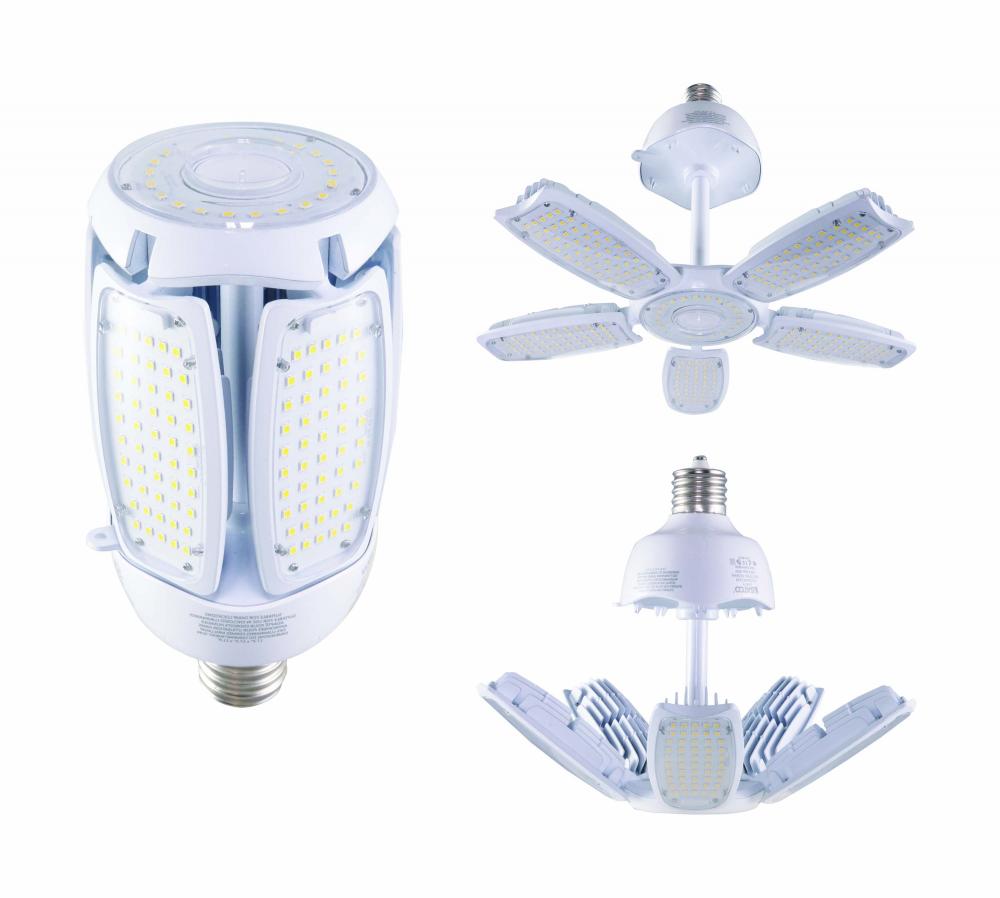

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast
$246.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 445 items available.
Dimensions
Width: 4.41"
90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
4501-5000
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
4.41
EA Length:
5.51
Harmonized Codes:
8539.52.0091
Length:
9.84
Lumens:
12600L
Shap Carton Width:
5.51
Ship Carton Height:
11.61
Ship Weight:
4.47
Warranty:
5 Year Limited - Hi-Pro
Weight:
3.48
Additional Info:
PIR Sensor available as an accessory
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120/150/260
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.204
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Greater Efficiency
Feature 2:
Improved Heat Dissipation
Feature 3:
Built-In 4kv Surge Protection
Feature 4:
Multiple Beam Angle Options
Feature 5:
Port For Motion Sensor
Feature 6:
L:9.84 D:4.84
Flourescent Equivalent:
150W
Has Driver:
Yes
HID Equivalent:
600W
Housing Color:
White
Incandescent Equivalent:
750W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Thermo Plastic (PBT)
Location Rating:
Damp
Long Description:
Satco's S39679 90-watt, HID replacement LED lamp offers natural light and an adjustable beam spread. Suitable for outdoor pole lamps, this high lumen lamp with a mogul extended base provides superior illumination. This energy efficient LED lamp deliver
Material:
Aluminum / Steel / Thermo Plastic (PBT)
Minimum Compartment Size:
Width: 17.30 in. Depth: 17.30 in. Height: 11.90 in.
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +65C (+149F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
11
RoHS Compliant:
Yes
Romance Copy:
The third generation of multibeam lamps offer improved efficiency, performance, and installation versatility. With an impressive 140 lumens per watt, a redesigned and more efficient heat sink, and an optional PIR motion sensor, the multibeam grabs more ene
SDS class:
LED_Lamp
Short Description:
90W/LED/HID/MB-G3/50K/100-277V
Specification Notes:
Closed 260 deg; Partial 150 deg; Open 120 deg
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
90W
Country of Origin- China
