Part Number: 40UPXJ1 / Vendor ID #: 4799
80/100/130 Wattage Selectable; LED; Hi-Bay; Type B; Ballast Bypass; Mogul Extended; 4000K;
$143.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 172 items available.
Dimensions
Width: 5.51"
Product Overview

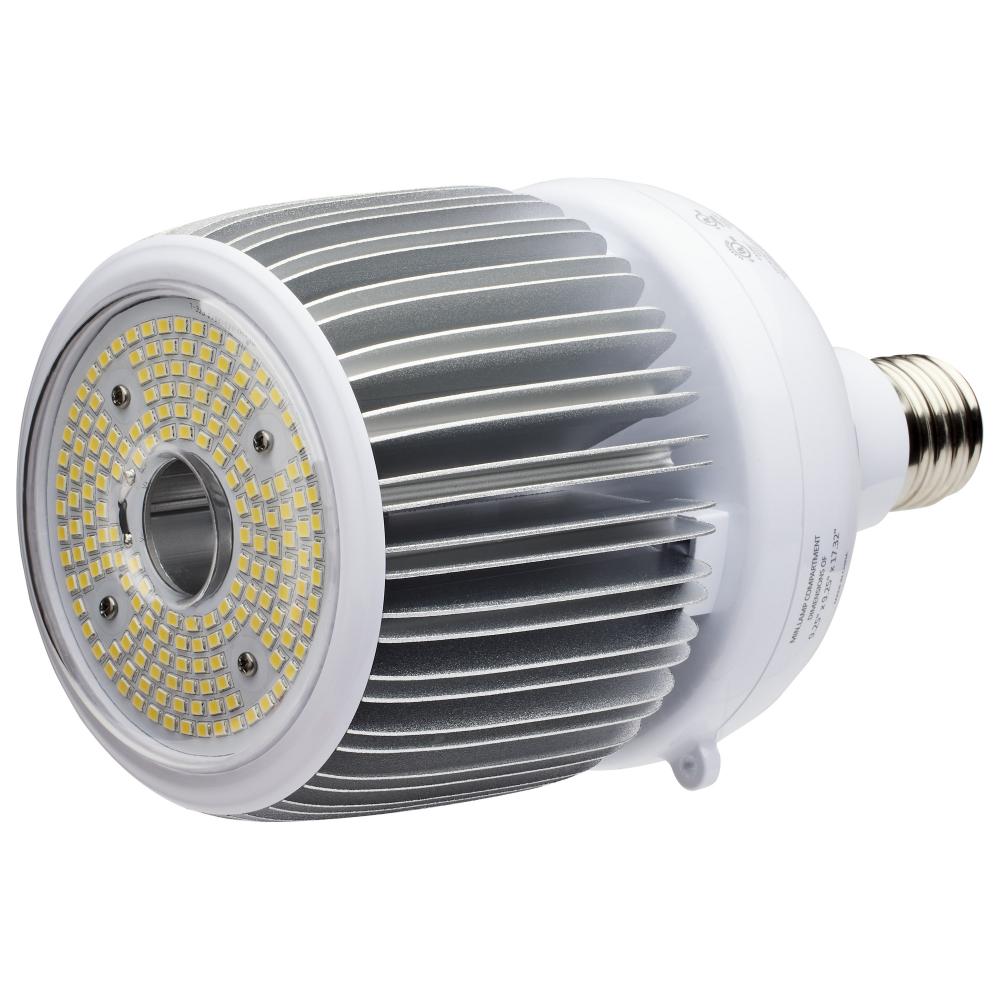

80/100/130 Wattage Selectable; LED; Hi-Bay; Type B; Ballast Bypass; Mogul Extended; 4000K; 100V-277V; 250W-400W Metal Halide Replacement
 Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Lumens:
3300+
Kelvin:
3501-4000
Wattage:
100w
Refinement Options
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
Corncob
Diameter:
5.51
EA Length:
5.91
Harmonized Codes:
8539.52.0091
Length:
9.72
Lumens:
11200L/14000L/18200L
Shap Carton Width:
5.91
Ship Carton Height:
11.73
Ship Weight:
2.94
Warranty:
5-Years
Weight:
2.7
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.2371
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
Malaysia
CRI:
80+
DLC Approved:
No
Efficacy:
140.00/140.00/140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Both
FCC Compliant:
Yes
Feature 1:
Wattage Selectable
Feature 2:
Replaces HID lamps
Feature 3:
Reduced size with greater efficiency
Feature 4:
Neck design fits most fixtures
Feature 5:

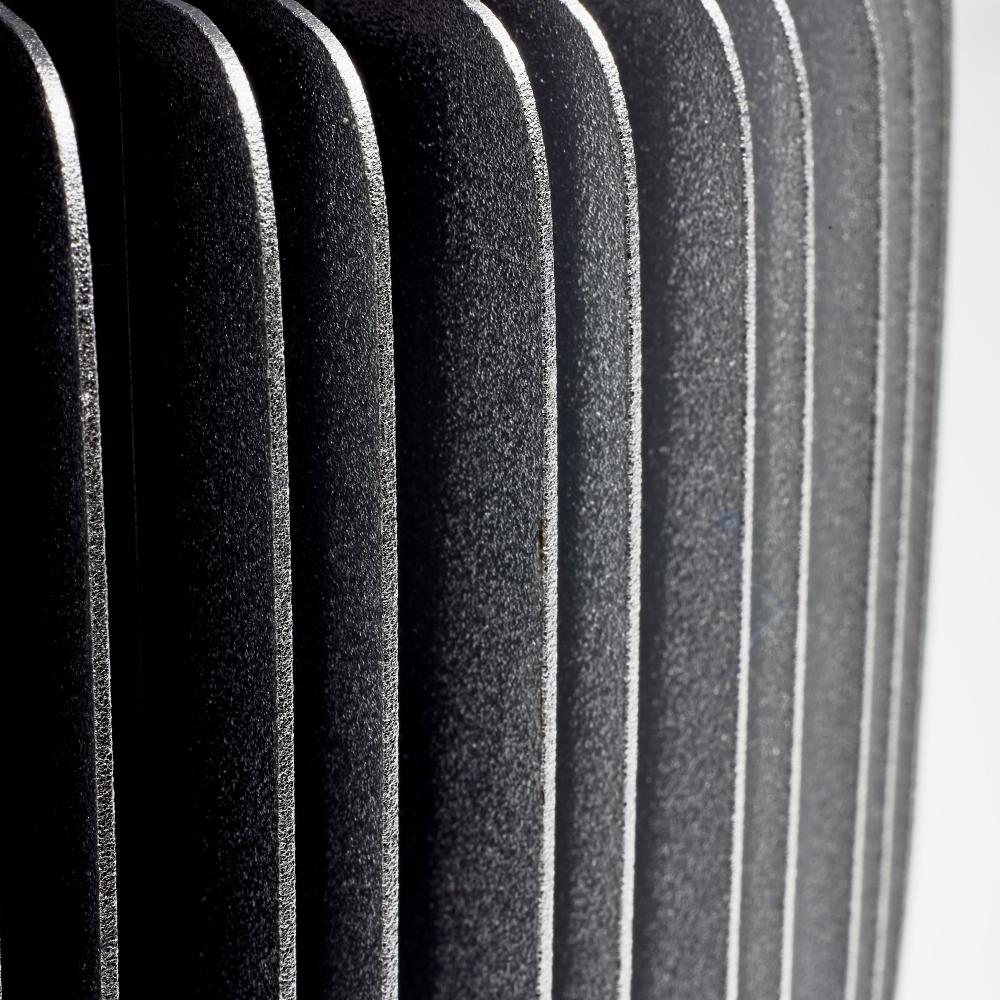

Advanced internal thermal management
Feature 6:
Light weight
Feature 7:
Damp Location
Feature 8:
Wide, 120 degree beam angle
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:

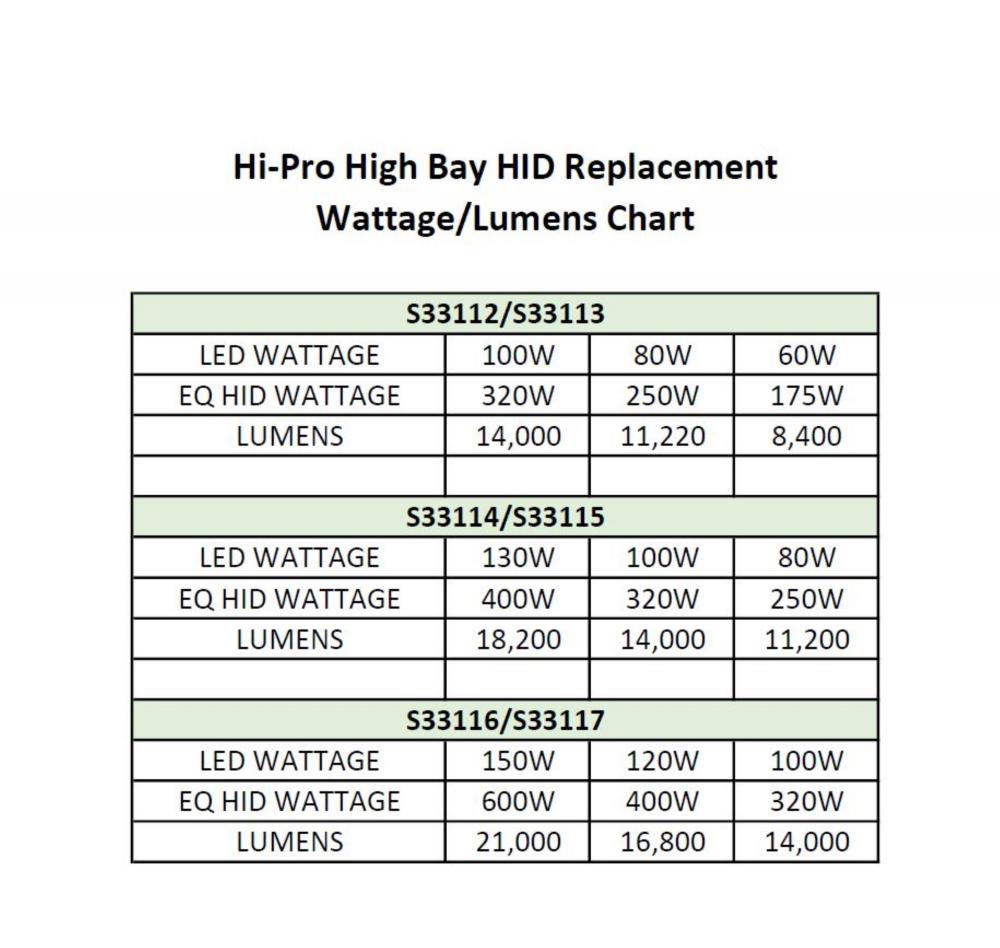

250W/320W/400W
Housing Color:
White
Incandescent Equivalent:
400W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Material:
Aluminum / Plastic
Minimum Compartment Size:
Length: 15.75 in. Width: 14.96 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.99
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
Romance Copy:
Satco's new high bay/low bay offers improved performance on every level and are now power selectable to cover a wider range of applications. Replaces 175 to 600 Watt HID technologies using 60 to 150 Watts of efficient, superior LED light. The redesigne
SDS class:
LED_Lamp
Short Description:
130W/LED/HID-HB/4K/100-277V
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No

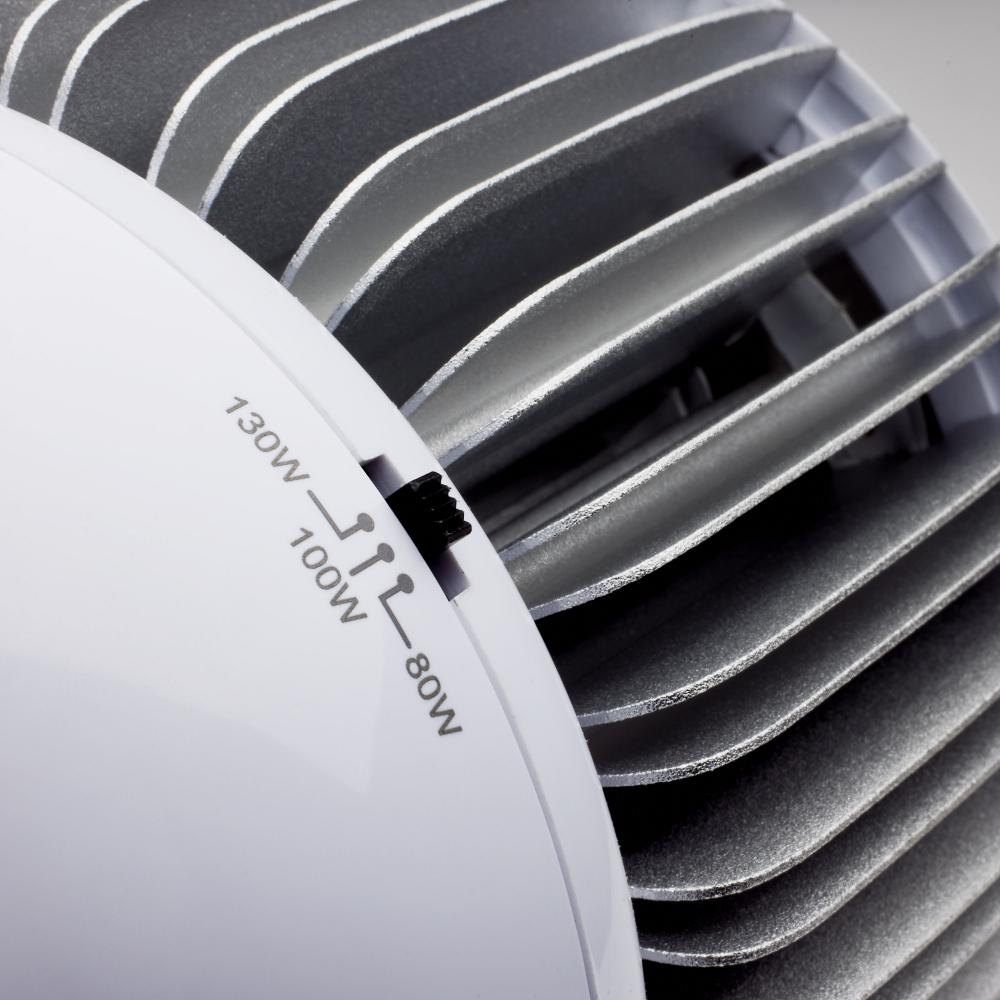

Wattage Selectable:
Yes
Watts:
80W/100W/130W
Country of Origin- Malaysia
