Product Overview

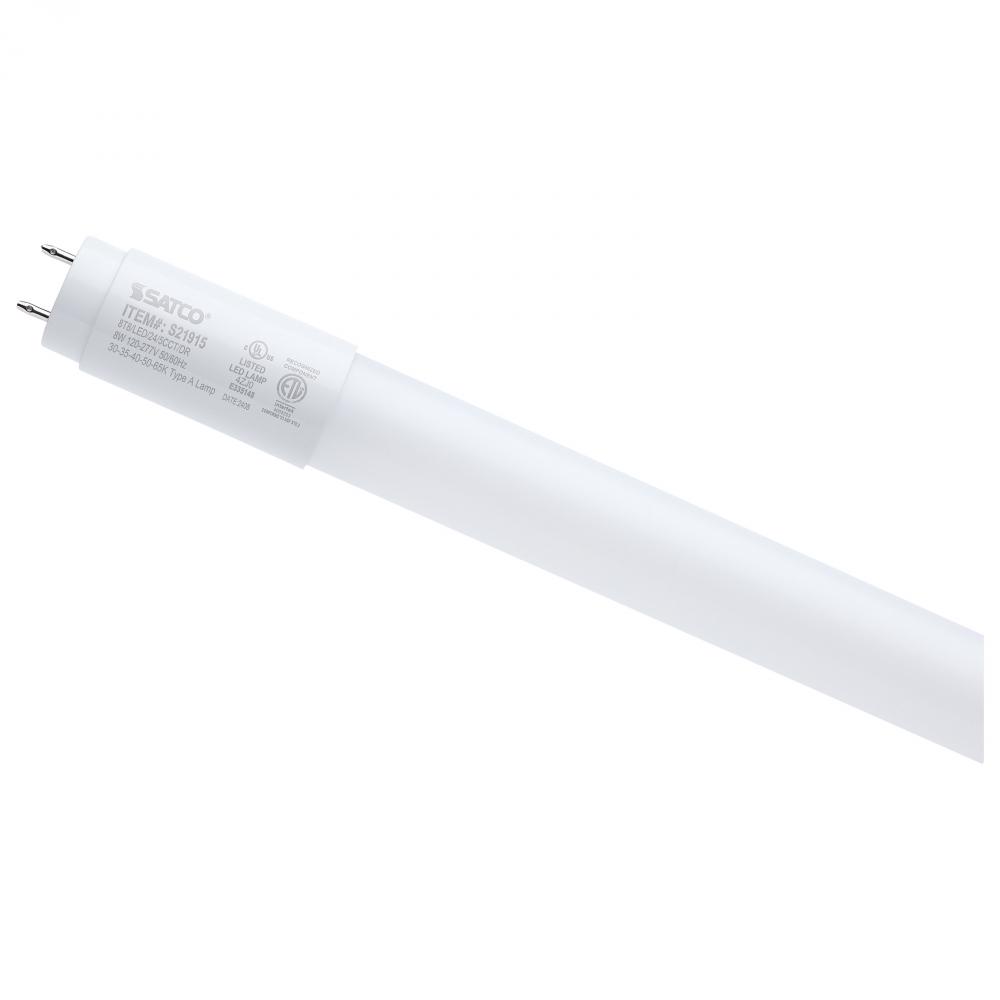

8 Watt; 2 Foot T8 LED; G13 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A; Frost

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

T8

Diameter:

1

EA Length:

24

Harmonized Codes:

8539.52.0051

Length:

23.78

Lumens:

1300L/1325L/1375L/1375L/1350L

Shap Carton Width:

1.18

Ship Carton Height:

1.18

Ship Weight:

0.27

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.24

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required, check compatibility

Beam Spread:

220

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Carton Cubic Feet:

0.0193

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

Dimming Type:

Phase cut

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-LJLMQD

DLC Primary Use:

Replacement Lamps (Plug and Play) (UL Type A)

Efficacy:

162.50/165.63/171.88/171.88/168.75 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

2-Foot

Feature 10:

Double-Ended Wiring

Feature 2:

Type A - Ballast Compatible

Feature 3:

Dimmable with Select Ballasts

Feature 4:

Rated for use in enclosed fixtures

Feature 5:

up to 185 Lumens per Watt

Feature 6:

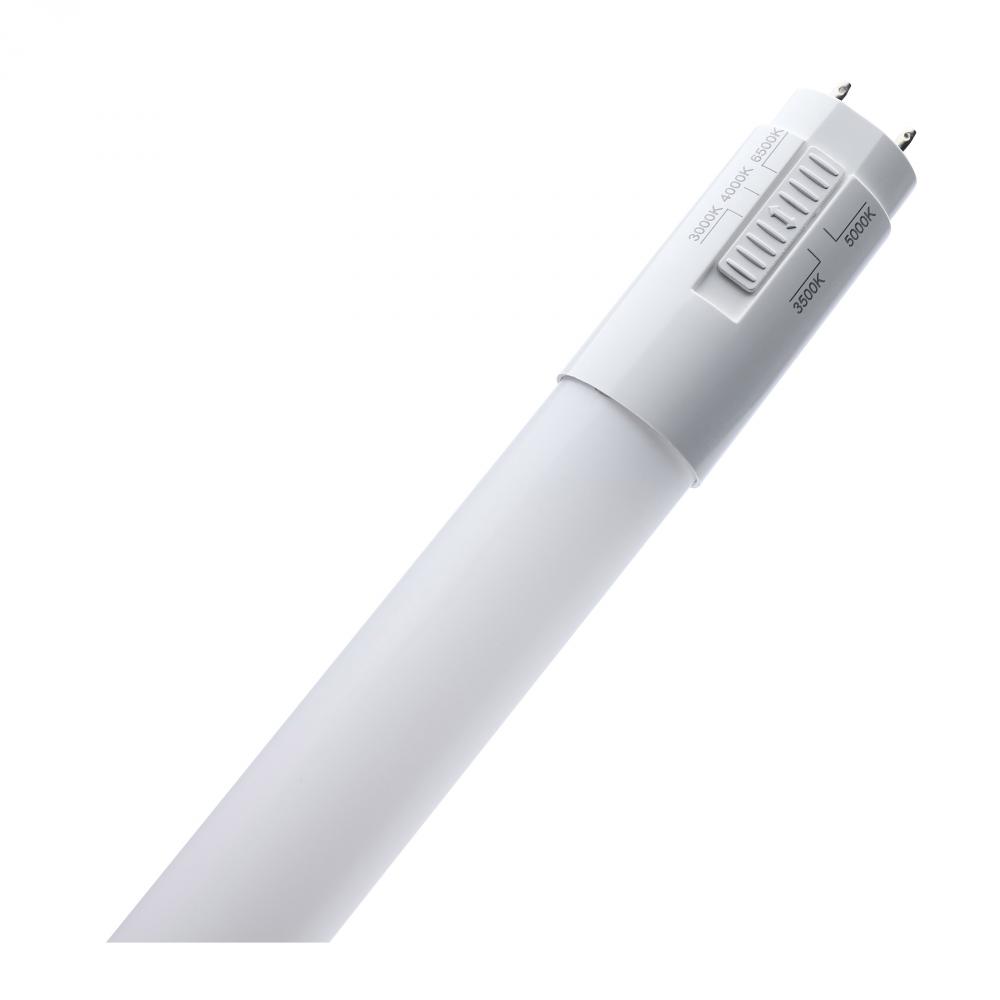

5 CCT Selectable

Feature 7:

Plug & Play T8 Replacements

Feature 8:

Frosted Glass Tube

Feature 9:

G13 Base

Flourescent Equivalent:

17W

Housing Color:

White

Incandescent Equivalent:

40W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S21915 LED T8 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballasts down to 20 percent, these lam

Material:

Glass

Nominal Length:

24

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED T8 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballasts down to 20 percent, these lamps allo

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

8T8/LED/24/5CCT/DR

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

No

Watts:

8W

Country of Origin- China
