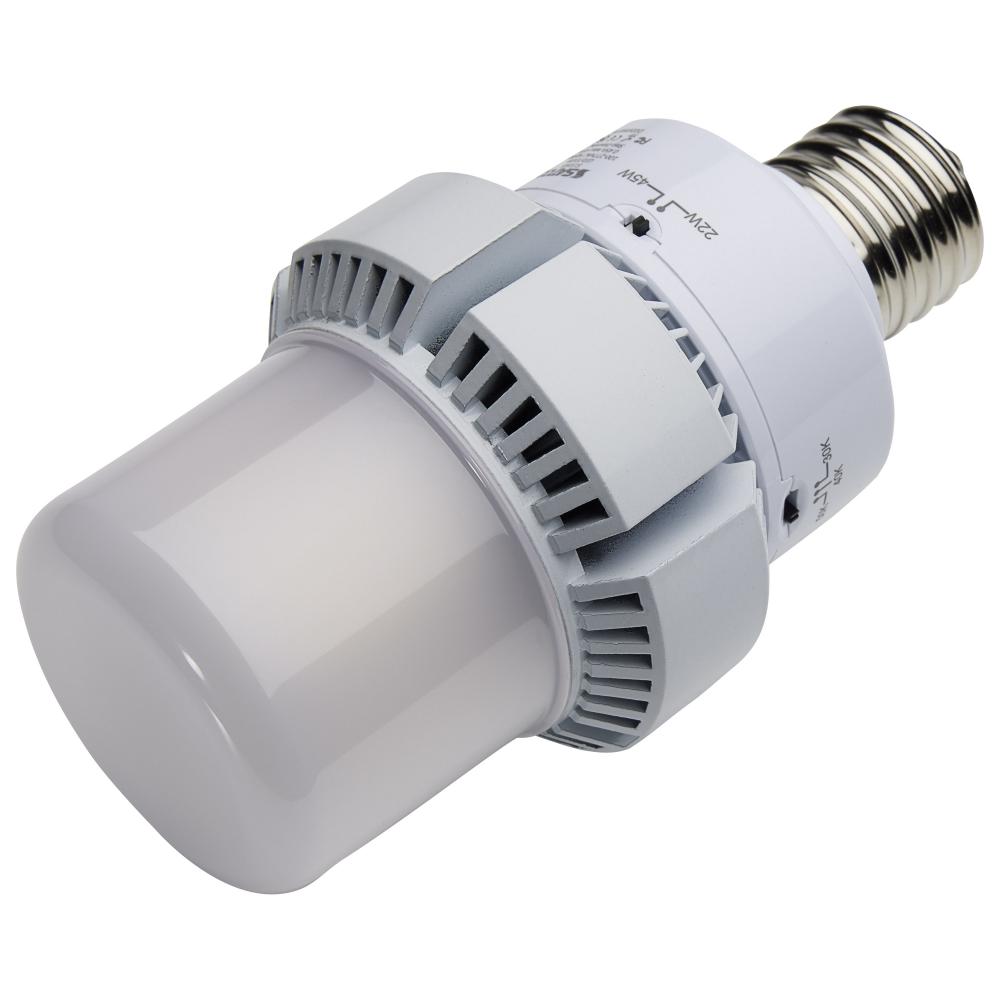

Part Number: 40J8QN3 / Vendor ID #: 4799
45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast
$82.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 517 items available.

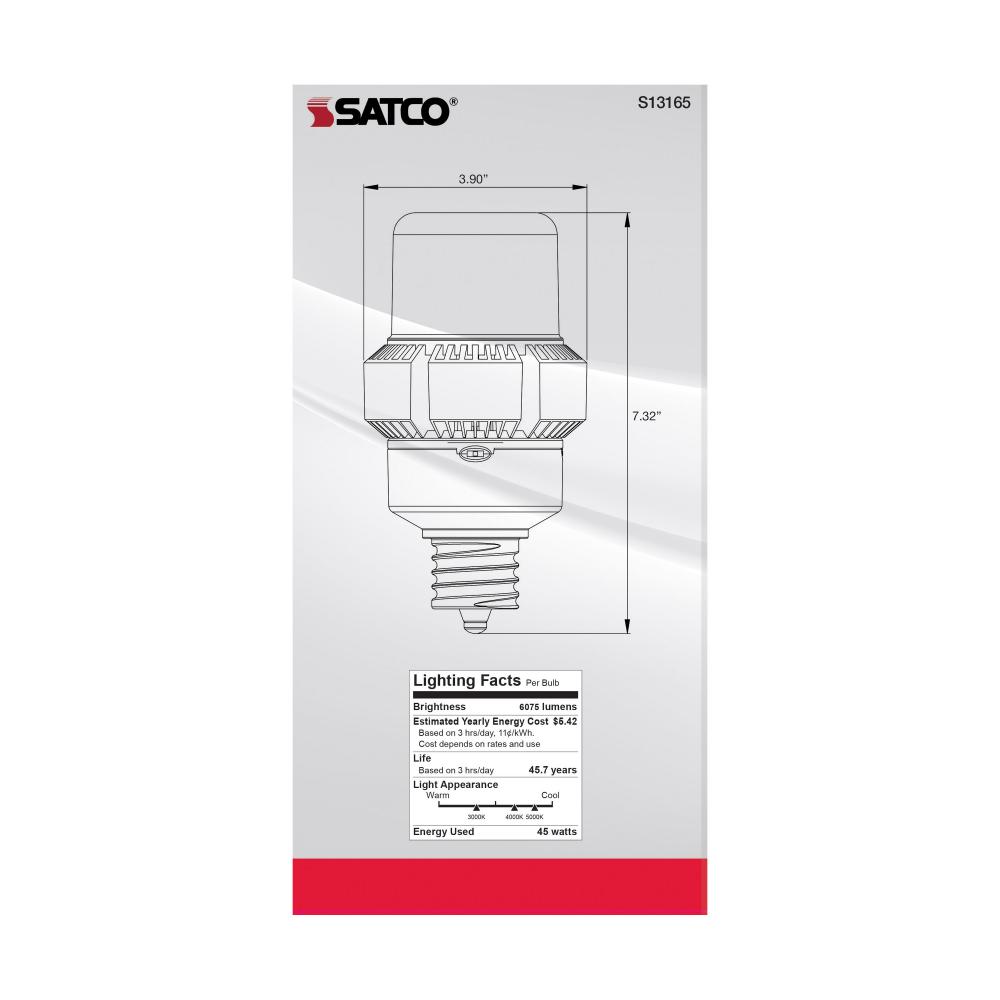

Dimensions
Width: 3.90"
45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology
Category:
Light Bulbs
Subcategory:
LED Bulbs
Lumens:
3300+
Kelvin:
3001-3500
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
AP32
Diameter:
3.9
EA Length:
4.65
Harmonized Codes:
8539.52.0010
Length:
7.32
Lumens:
5850L/3060L
Shap Carton Width:
4.65
Ship Carton Height:
9.25
Ship Weight:
1.75
Warranty:
5 Year Limited - Hi-Pro
Weight:
1.38
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
280
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.1157
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80+
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-GNP8VX
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy:
130.00/139.09 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Advanced heat sink design ensures long lifespan, less maintenance
Feature 2:

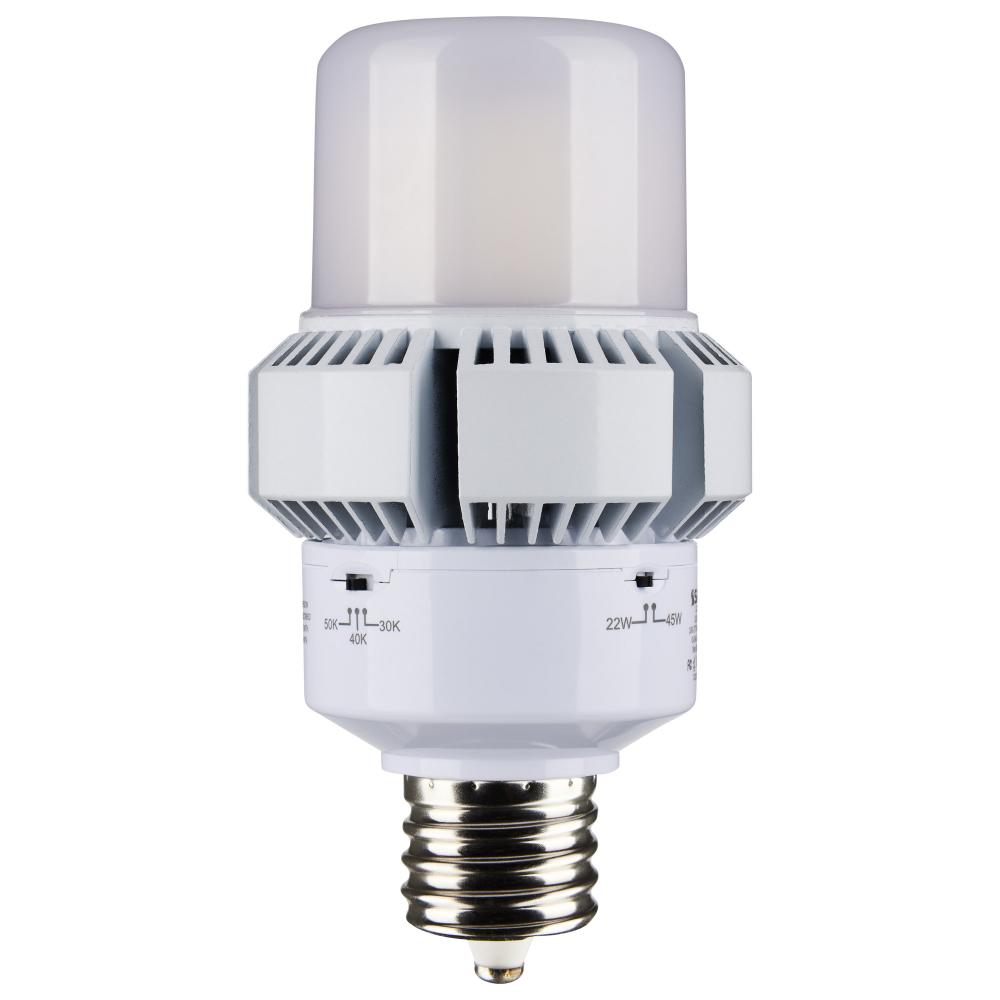

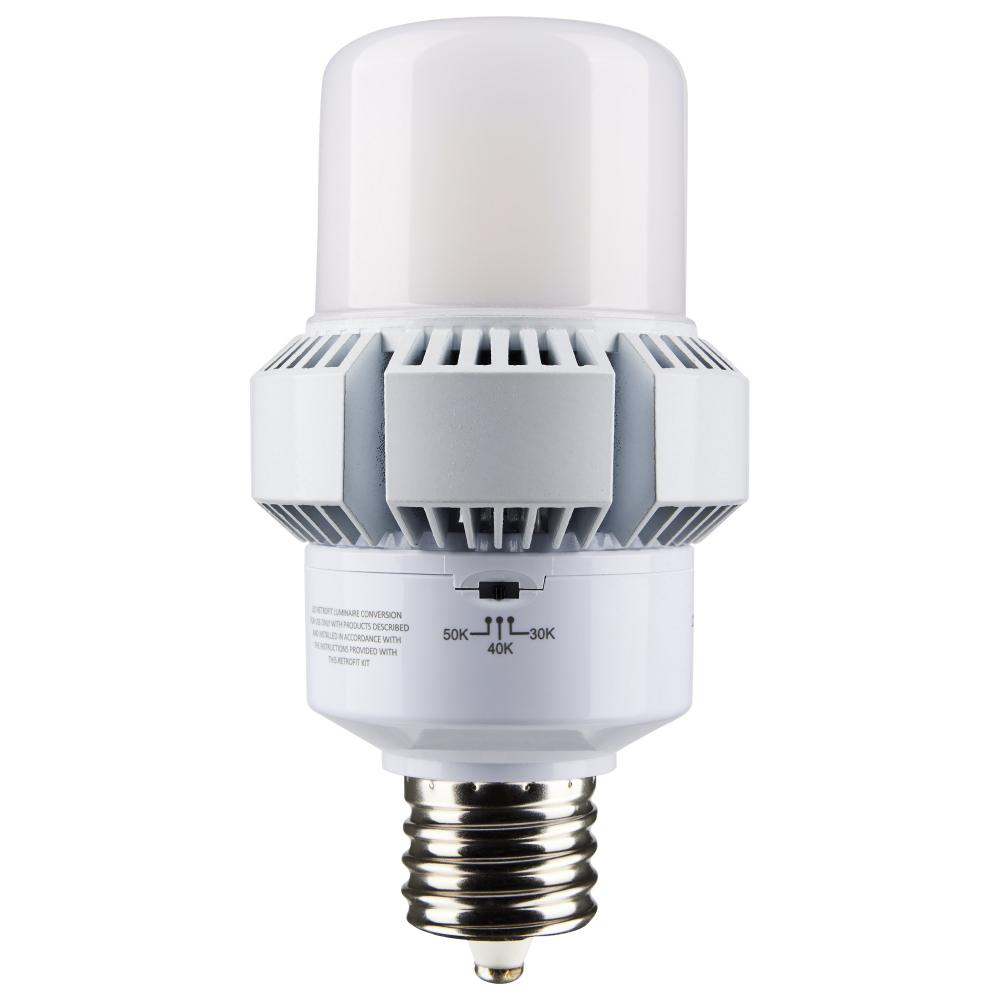

ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
Feature 3:
Damp location rated for indoor or outdoor use
Feature 4:
Rated for totally enclosed fixtures
Feature 5:
Reduced jacket size and built-in surge protection
Feature 6:
FCC/RoHS compliant
Feature 7:
Dimmable; 80 CRI light quality
Flourescent Equivalent:
100W
Has Driver:
No
Has Emergency Battery:
No
HID Equivalent:
150W-175W
Housing Color:
White
Incandescent Equivalent:
300W
Indoor Outdoor:
Indoor;Outdoor

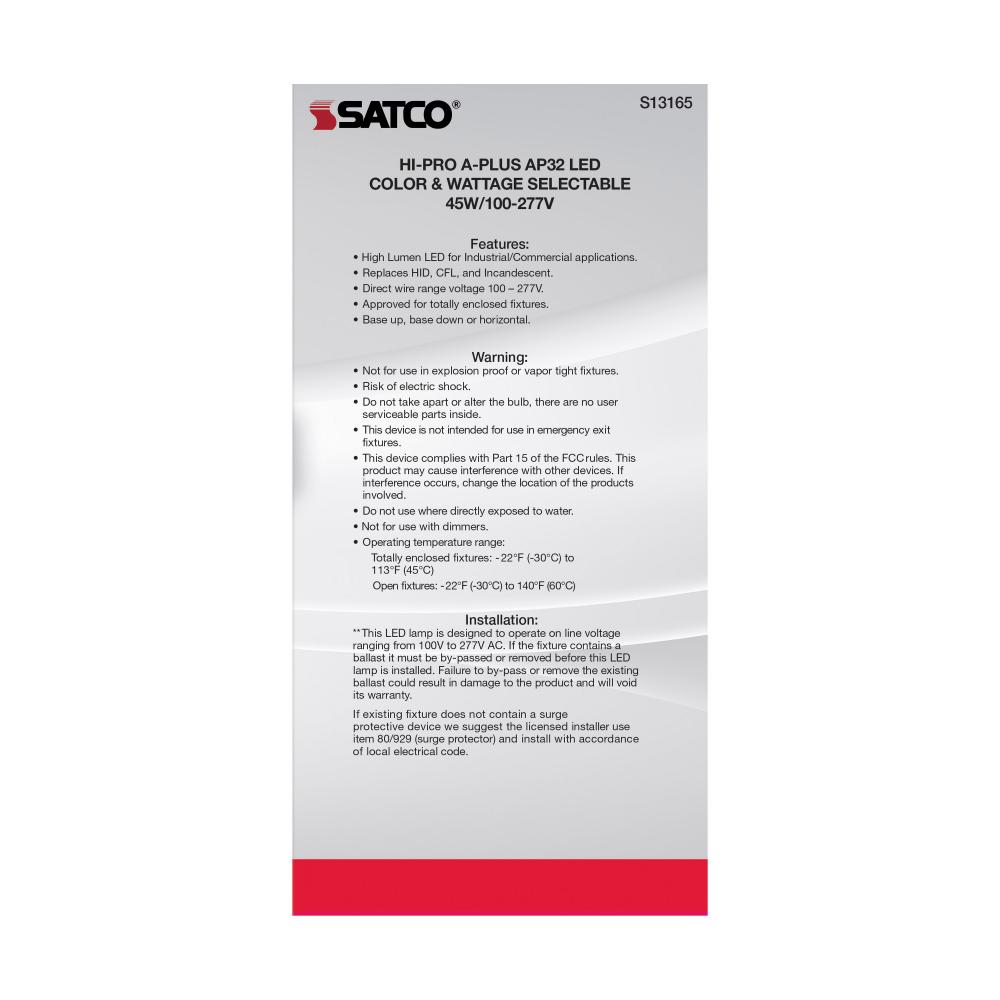

Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
S13165, SATCO NUVO's 45-watt EX39 base A-Plus 32 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatilit
Material:
Aluminum
Minimum Compartment Size:
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-22C (-30F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
15
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce hi
SDS class:
LED_Lamp
Short Description:
45W/AP32/LED/CCT/100-277V/EX39
Specification Notes:

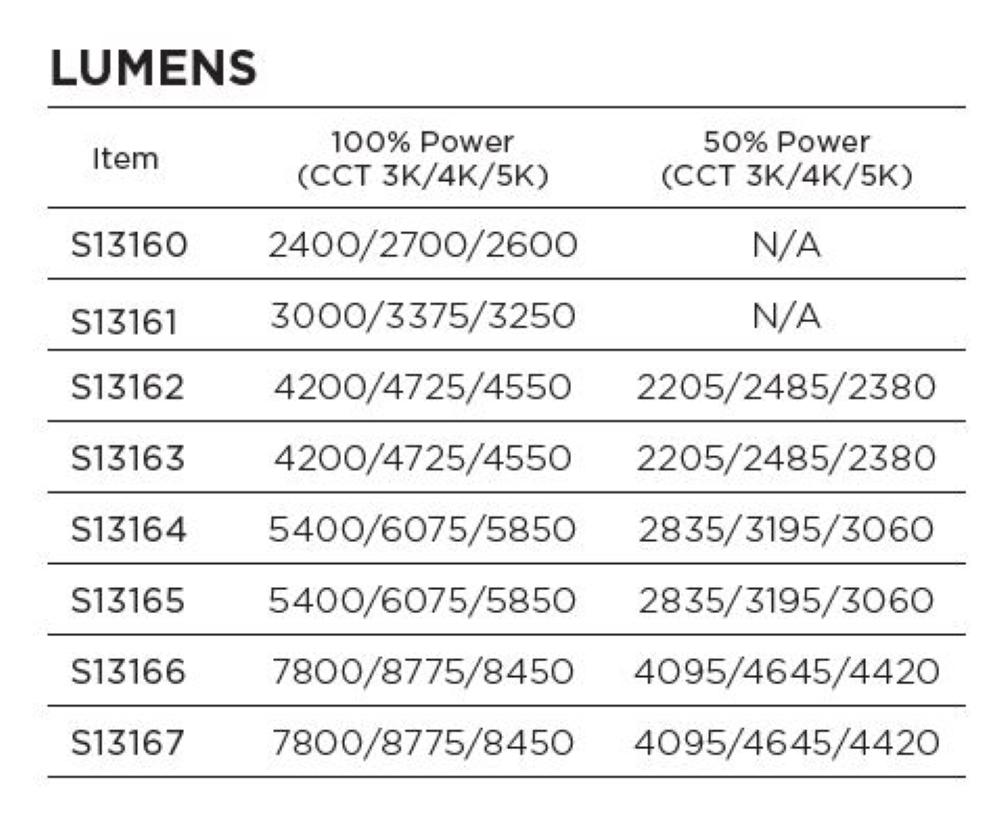

Lumen/Watt/CCT Ratio Chart in Documents.
Style:
Contemporary
Surge Protection:
Built-in surge protection - 3KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Watts:
45W/22W
Country of Origin- China
