40 Watt; 8 Foot; T8 LED; 6500K; Recessed Double Contact base; 50000 Average rated hours; 5500 (40JCUA5)

Image may not reflect selected features
No Image
Available
40 Watt; 8 Foot; T8 LED; 6500K; Recessed Double Contact base; 50000 Average rated hours; 5500
additional image
BASE PRICE:
$
52
00
/ / 1
($52.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JCUA5
Dimensions:
Width: 1.00"
White
Availability:
  • Manufacturer has 1448 items available.
Description
Details
Downloads
40 Watt; 8 Foot; T8 LED; 6500K; Recessed Double Contact base; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Internal #:
40JCUA5
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
3300+
Kelvin:
6001-6500
Wattage:
40w
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
1
Harmonized Codes:
8539.52.0051
Length:
94
Lumens:
5500L
Shap Carton Width:
1
Ship Carton Height:
96.13
Ship Weight:
0.88
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.88
Additional Info:
Suitable for Emergency Lighting only with Satco EM Driver #S8002
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
R17d
Bulb Base:
Recessed Double Contact HO/VHO
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0556
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Daylight
Country Of Origin:
China
CRI:
82
DLC Approved:
No
Efficacy:
137.50 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:

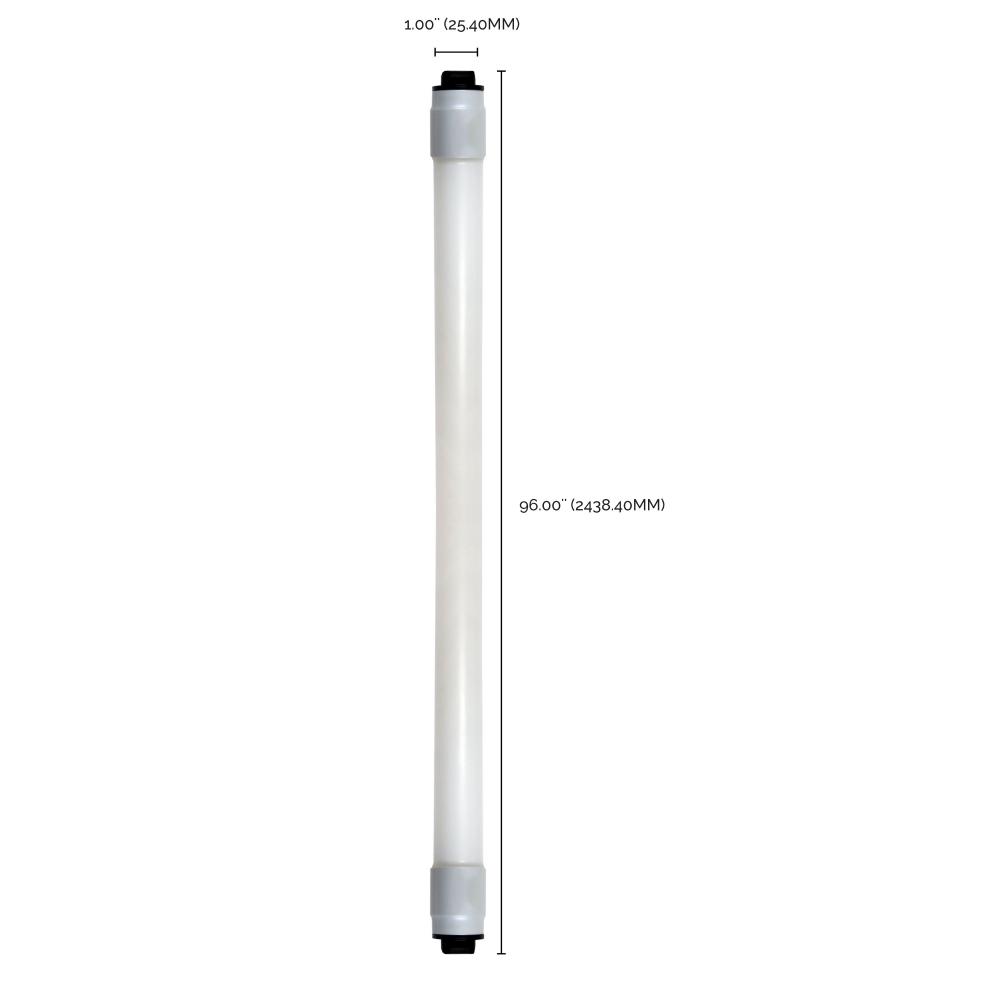

MOL: 94.00 inches, MOD: 1.00 inch
Feature 2:
Superior 82 CRI light quality, 5500 lumens and a 6500K with a 210 beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp rated, for use indoor use only
Feature 5:
40 watt LED replaces 110 watt fluorescent
Feature 6:
White finished linear bulb
Feature 7:
LED energy efficient fixture
Feature 8:
5 year limited warranty
Flourescent Equivalent:
110W
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens Finish:
White
Location Rating:
Damp
Long Description:
Satco's S29942 40 watt 8 foot T8 LED Type B ballast bypass commercial linear replacement lamp offers long LED life, packs 5500 powerful lumens of bright, and superior quality light. Double ended wiring for convenience, the white bulb features a recesse
Material:
Glass
Minimum Compartment Size:
Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
Nominal Length:
96
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
Satco's 40 watt 8 foot T8 LED Type B ballast bypass commercial linear replacement lamp offers long LED life, packs 5500 powerful lumens of bright, and superior quality light. Double ended wiring for convenience, the white bulb features a recessed doubl
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
40T8/LED/96-865/BP/R17D
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
25%
Wattage Selectable:
No
Watts:
40W


Additional Information:
  • Country of Origin- China
