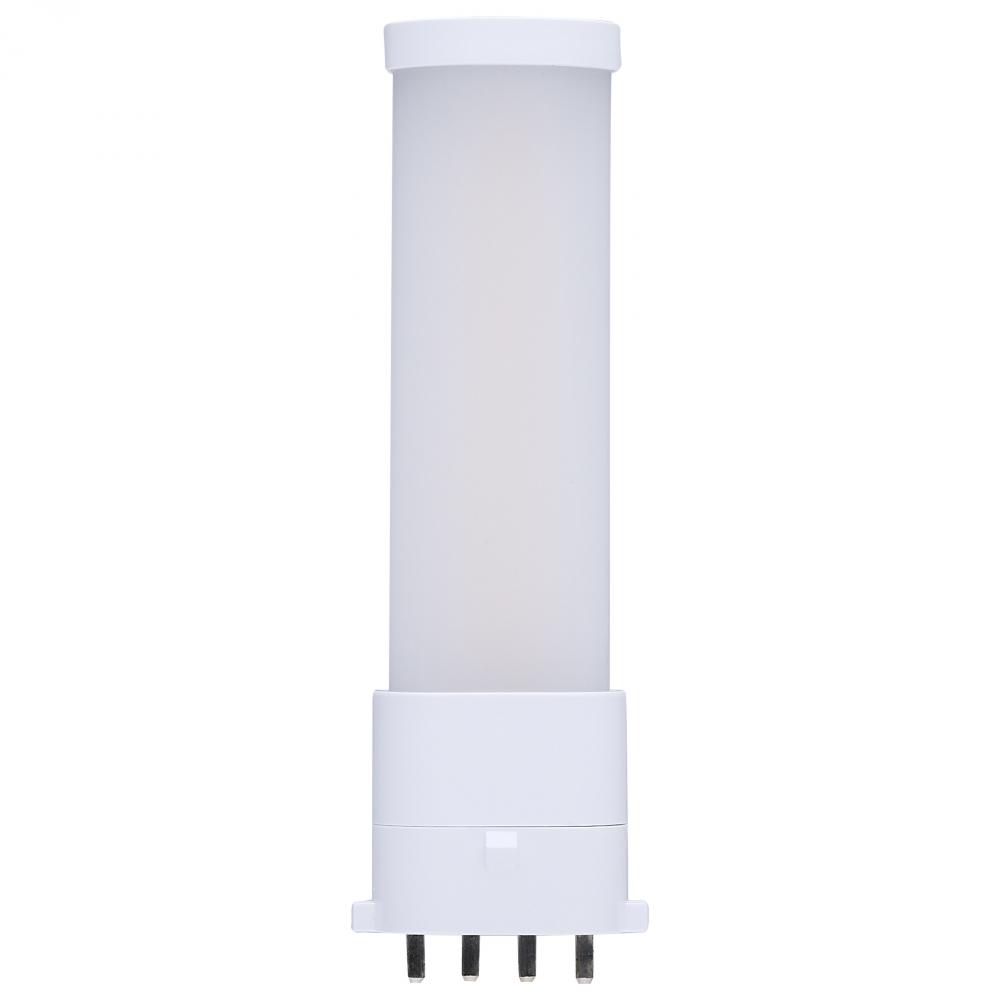

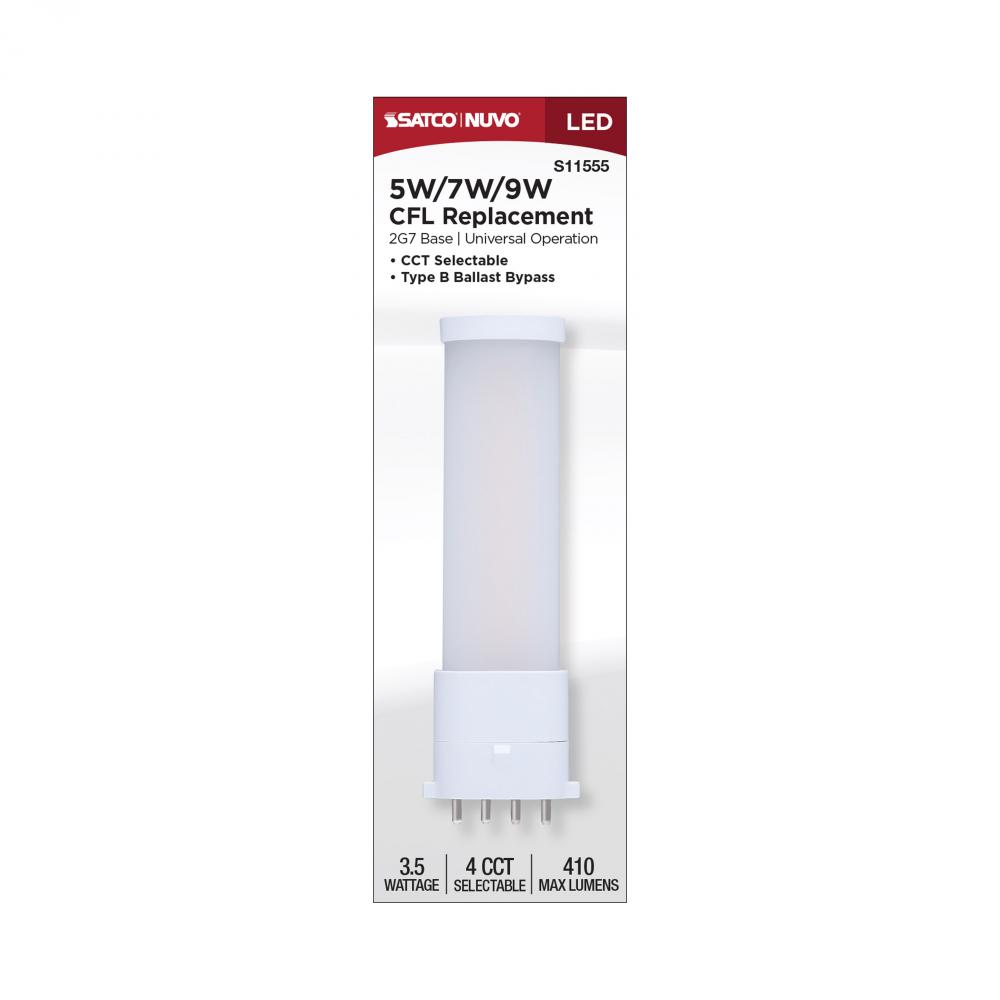

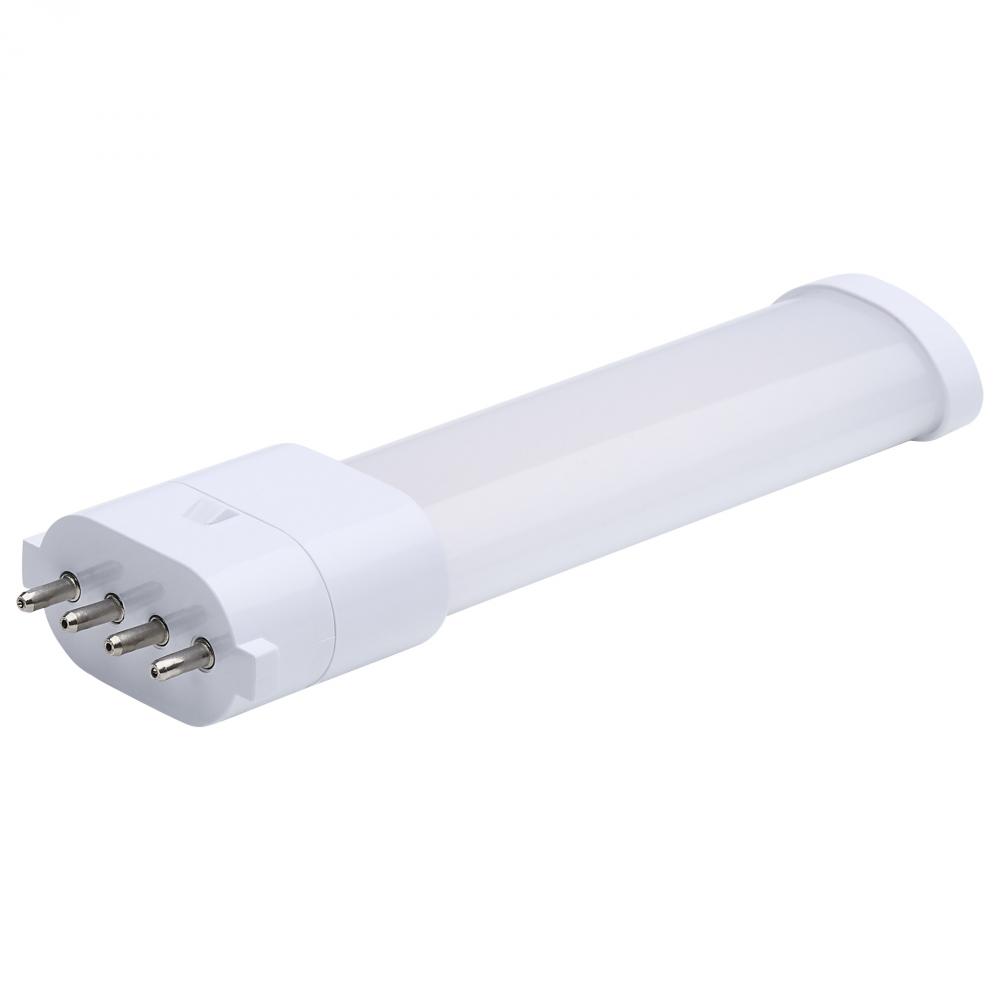

Part Number: 40UWR1Z / Vendor ID #: 4799
3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
$13.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 810 items available.

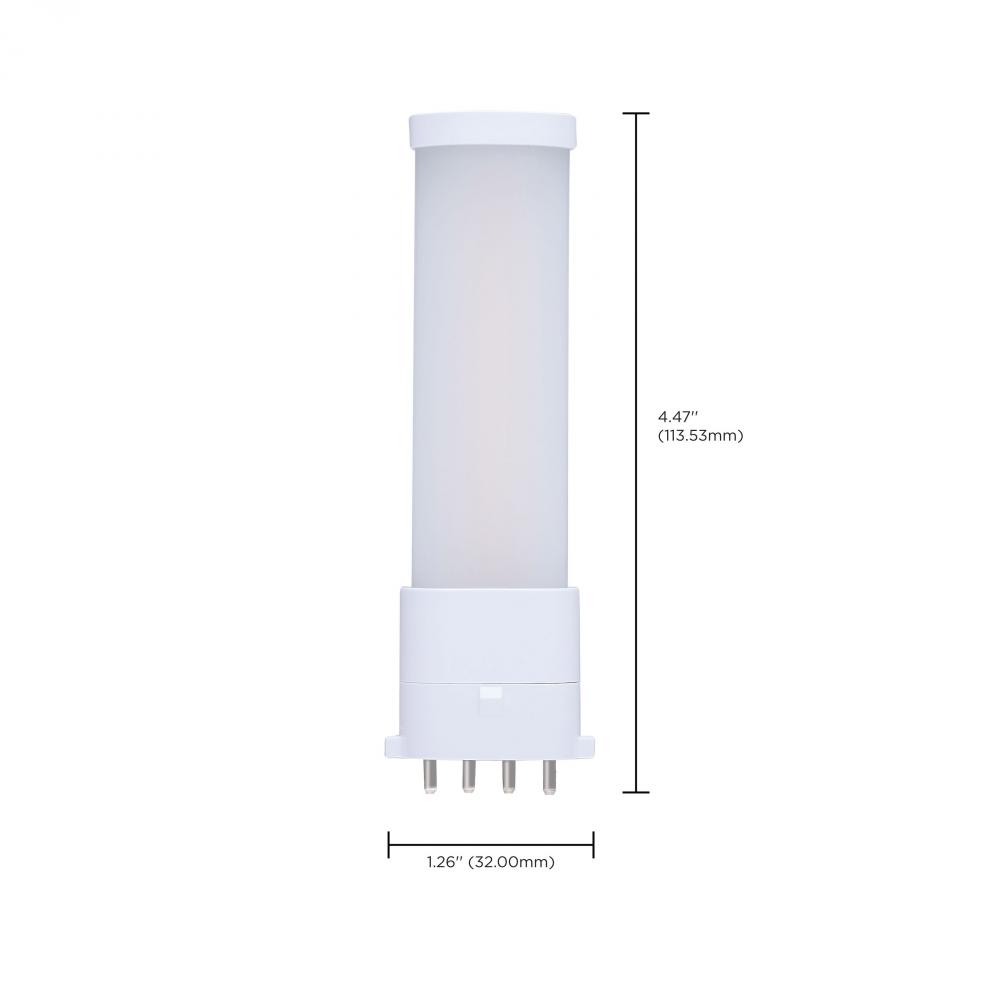

Dimensions
Width: 1.26"
Product Overview
3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
 Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Refinement Options
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K
Bulb Shape:
PL
Diameter:
1.26
EA Length:
1.54
Harmonized Codes:
8539.52.0091
Length:
4.74
Lumens:
380L/390L/400L/410L
Shap Carton Width:
0.91
Ship Carton Height:
4.84
Ship Weight:
0.08
Warranty:
5-Years
Weight:
0.06
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120
Bulb ANSI Base:
2G7
Bulb Base:
2G7
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0039
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
Thailand
CRI:
80+
DLC Approved:
No
Efficacy:
108.57/111.43/114.29/117.14 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:

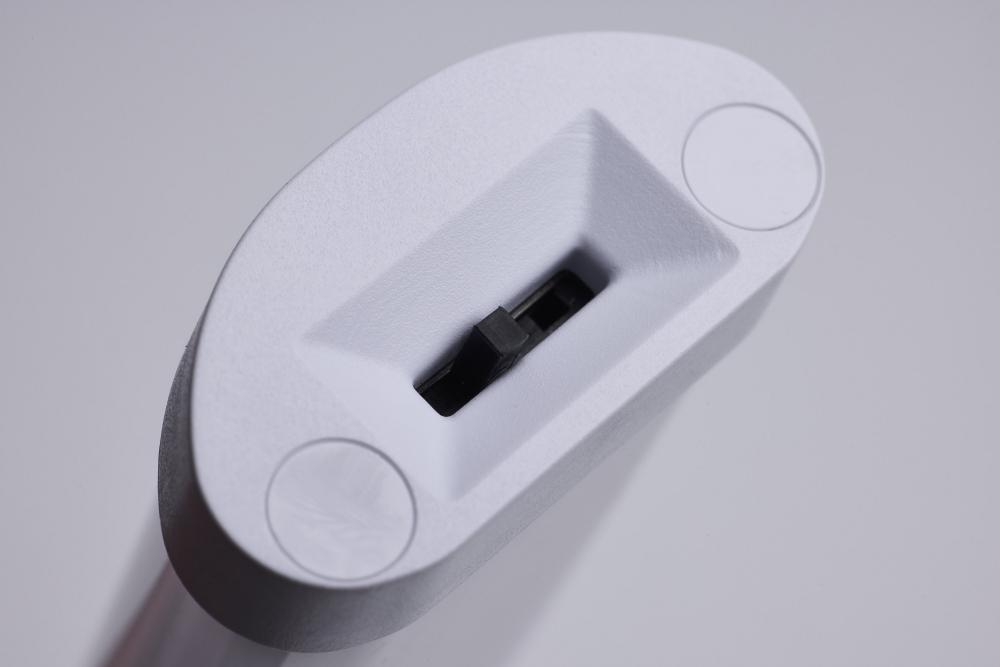

4 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
120 Degree Beam Spread
Feature 4:

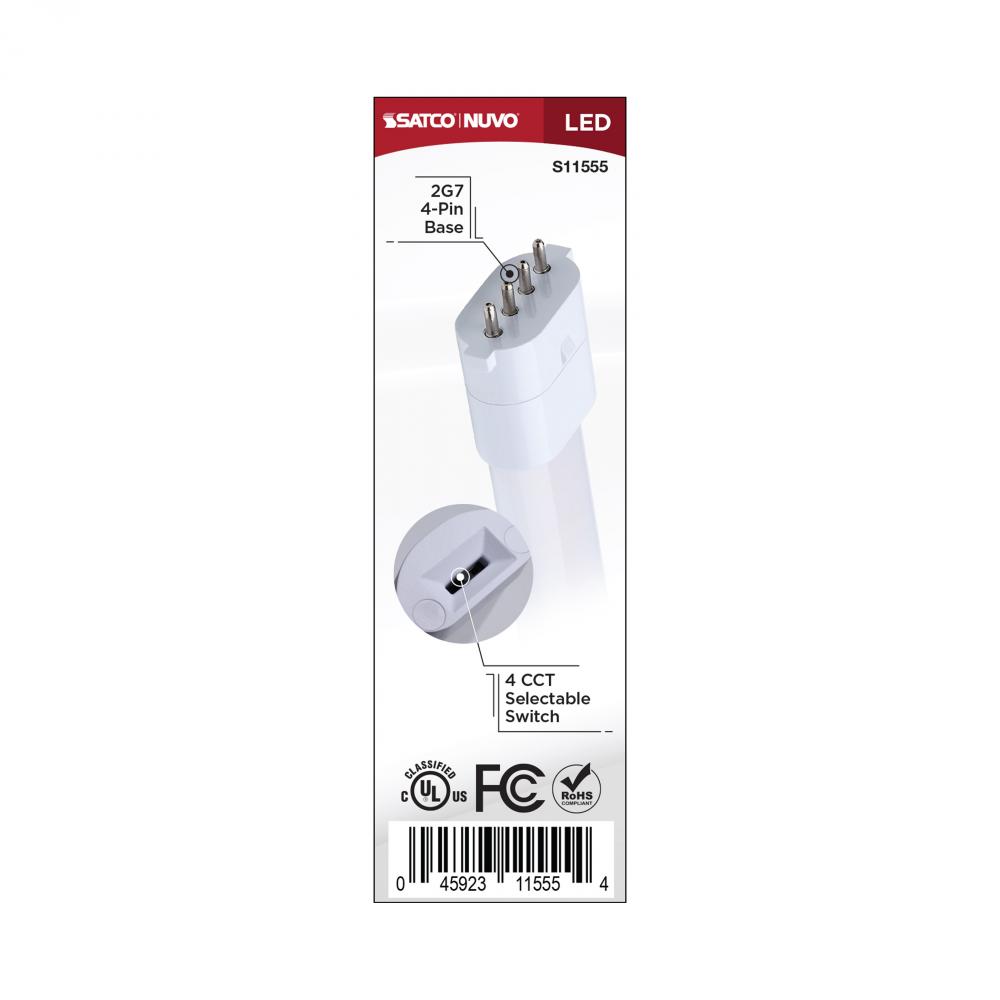

2G7 Lamp Base
Feature 5:
Damp Location Rated
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Feature 8:
Single-Sided Illumination
Flourescent Equivalent:
5W/7W/9W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
Upgrade your compact fluorescent lighting with SATCO NUVO's S11555 3.5W Type B LED lamp. Designed to bypass the ballast for direct wiring to the electrical system, this lamp replaces 5W, 7W, and 9W CFL lamps with a 2G7 base. It offers 4 CCT selectable
Material:
Polycarbonate (PC)
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Upgrade your lighting with SATCO NUVO's energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W mod
SDS class:
LED_Lamp
Short Description:
3.5W/LED/CFL/CCT/2G7/BP
Style:
Transitional
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
3.5W
Country of Origin- Thailand
