Part Number: 40JCQDK / Vendor ID #: 4799
3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt
$14.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 2913 items available.

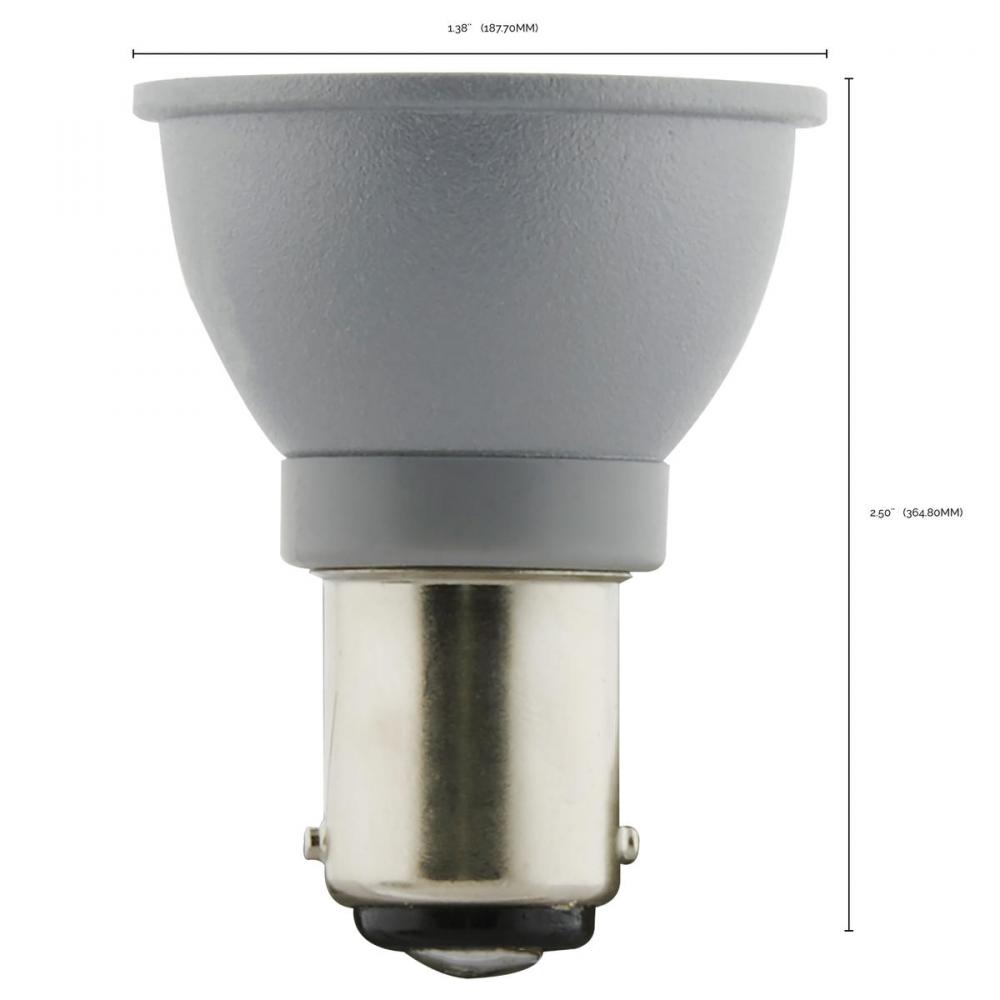

Dimensions
Width: 1.38"
3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
Gray
Style:
Traditional
Lumens:
450-800
Kelvin:
2501-3000
Category:
LED
Sub-Category:
Mini and Pin-Based LED
Volts:
12V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
15000
Bulb Kelvin:
3000K
Bulb Shape:
ALR12
Diameter:
1.38
EA Length:
1.47
Harmonized Codes:
8539.52.0091
Length:
1.77
Lumens:
220L
Shap Carton Width:
1.47
Ship Carton Height:
1.89
Ship Weight:
0.07000000000000001
Warranty:
3 Year Limited - 10 hr per day
Weight:
0.05
BAA Compliant:
No
Beam Spread:
31
Bulb ANSI Base:
BA15d
Bulb Base:
Bayonet Double Contact
Bulb Finish:
Gray
Burning Position:
Universal
Carton Cubic Feet:
0.0024
Cartons Per Unit:
1
CBCP:
300
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
73.33 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:
MOL: 1.77 inches, MOD: 1.38 inches
Feature 2:
Gray Finish
Feature 3:
Material: Aluminum and Polycarbonate
Feature 4:
3000K Warm White Light
Feature 5:
220 lumens
Feature 6:
Damp location rated for indoor use
Feature 7:
Bayonet Double Contact Base
Feature 8:
Rated for 15,000 hours
Feature 9:
3-Year Limited Warranty
Has Emergency Battery:
No
HID Equivalent:
20W
Housing Color:
Silver
Incandescent Equivalent:
20W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
No
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Satco's S29005 3-watt ALR12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for eleva
Material:
Aluminum / Polycarbonate (PC)
Operating Frequency:
60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
No
Power Factor:
>0.5
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
Satco's 3-watt ALR12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for elevators, l
SDS class:
LED_Lamp
Short Description:
3WLED/GBF/ELEVATOR/12V AC/DC
Style:
Transitional
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
3W
Country of Origin- China
