270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 : 40UWT1X

Return to Catalog

Part Number: 40UWT1X / Vendor ID #: 4799

270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277

$347.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Width: 5.60"

Product Overview

270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 Ranged Voltage; 600 Watt HID Replacement

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

5.6

EA Length:

5.91

Harmonized Codes:

8539.52.0091

Length:

12.3

Lumens:

45330L/34581L/24450L

Shap Carton Width:

5.91

Ship Carton Height:

14.17

Ship Weight:

3.9

Warranty:

5-Years

Weight:

3.56

Additional Info:

Decibels: 47.5dB(A)

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

280

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.2864

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Natural Light

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Function:

Only dimmable through wattage selection switch on lamp

Dimming Type:

Step Dimming

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-V5JZ45

DLC Primary Use:

Replacement Lamps for High-Bay Luminaires (Type B)

Efficacy:

167.89/172.91/181.11 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

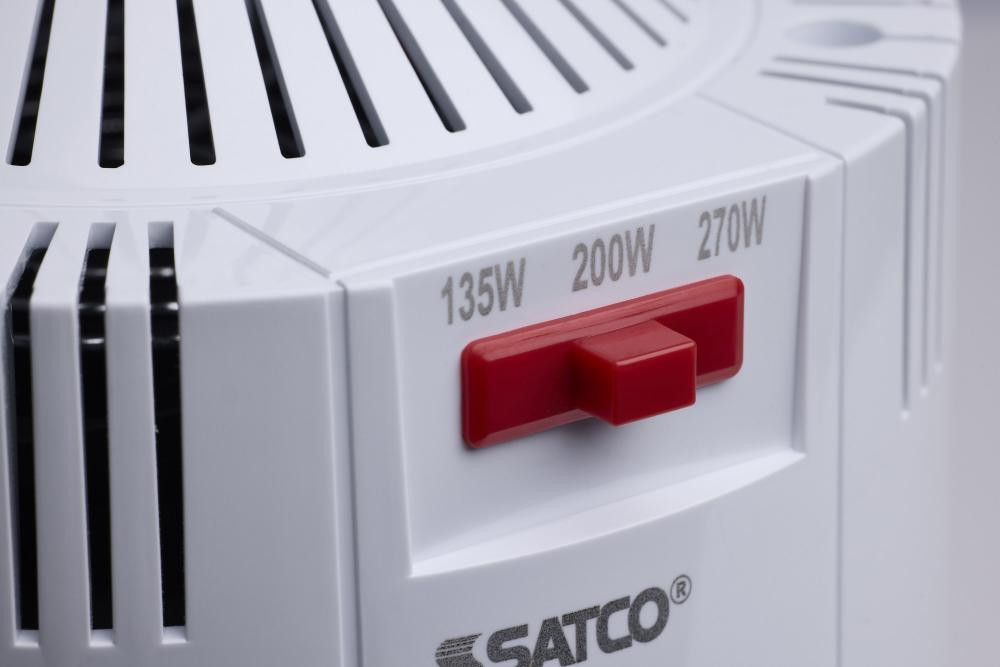

Feature 1:

CCT and Wattage Selectable

Feature 10:

5 Year Warranty

Feature 2:

Range Voltage 120V-277V

Feature 3:

Very High Lumen Output

Feature 4:

Type B Ballast Bypass

Feature 5:

Integrated Active Cooling Fan

Feature 6:

Damp Location Rated

Feature 7:

Min Compartment Size 18.50" x 14.96" x 14.96"

Feature 8:

6kV Surge Protection

Feature 9:

50,000 Hour Functional Life

Has Camera:

Has Emergency Battery:

HID Equivalent:

600W

Housing Color:

White

Indoor Outdoor:

Indoor and Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP54

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

SATCO NUVO's S23136 Hi-Lumen Hi-Pro lamp delivers over 45,000 lumens, replacing metal halide lamps up to 600W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed f

Material:

Aluminum / Polycarbonate (PC)

Minimum Compartment Size:

Length: 18.50 in. Width:14.96 in. Height: 14.96 in.

Operating Frequency:

60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

0.99

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO Hi-Lumen Hi-Pro lamps deliver exceptional LED illumination, replacing metal halide lamps from 450W up to 1000W. With a staggering maximum output of over 73,000 lumens, they provide superior brightness while improving energy efficiency and reduci

SDS class:

LED_Lamp

Short Description:

270W/LED/CCT/100-277V/EX39

Style:

Contemporary

Surge Protection:

Built-in surge protection - 6KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

270W/200W/135W

Country of Origin- Vietnam
