Ideal for use in Warehouses, Box Stores, Grocery Stores, Gymnasiums
Feature 2:

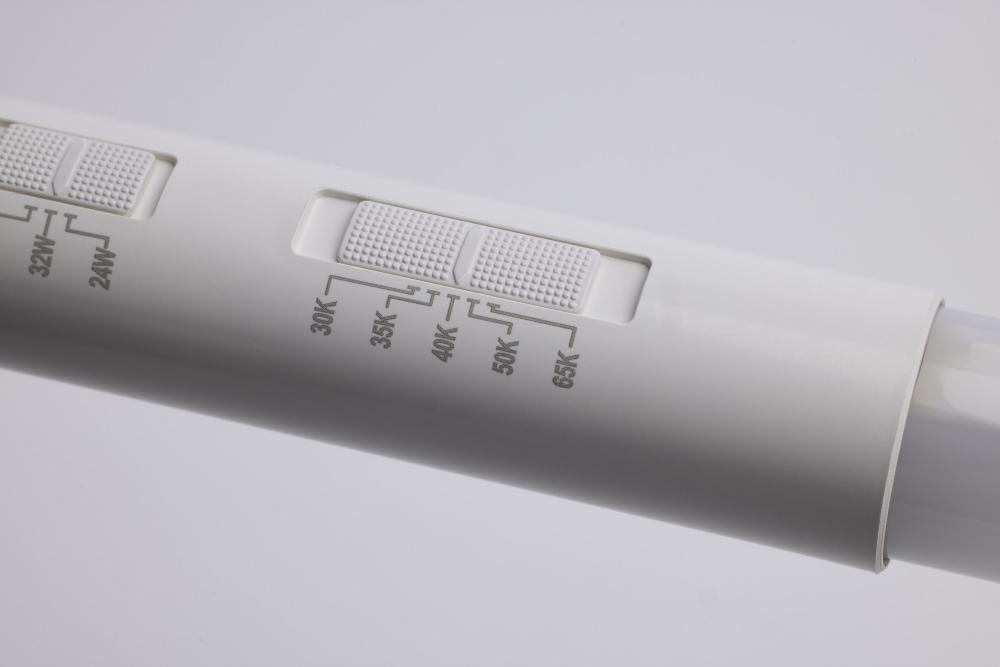

3000K/3500K/4000K/5000K/6500K CCT Selectable
Feature 3:
120V-277V Range Voltage
Feature 4:
PET Coated Glass Tube; NSF Rated
Feature 5:
Damp Location Rated
Feature 6:
Double Ended Wiring
Feature 7:

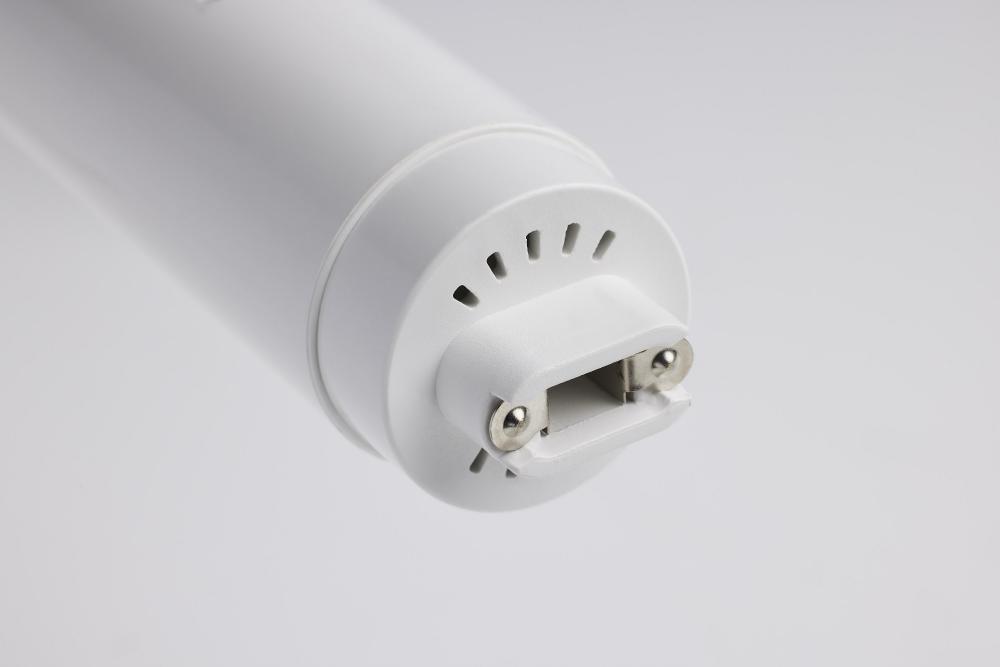

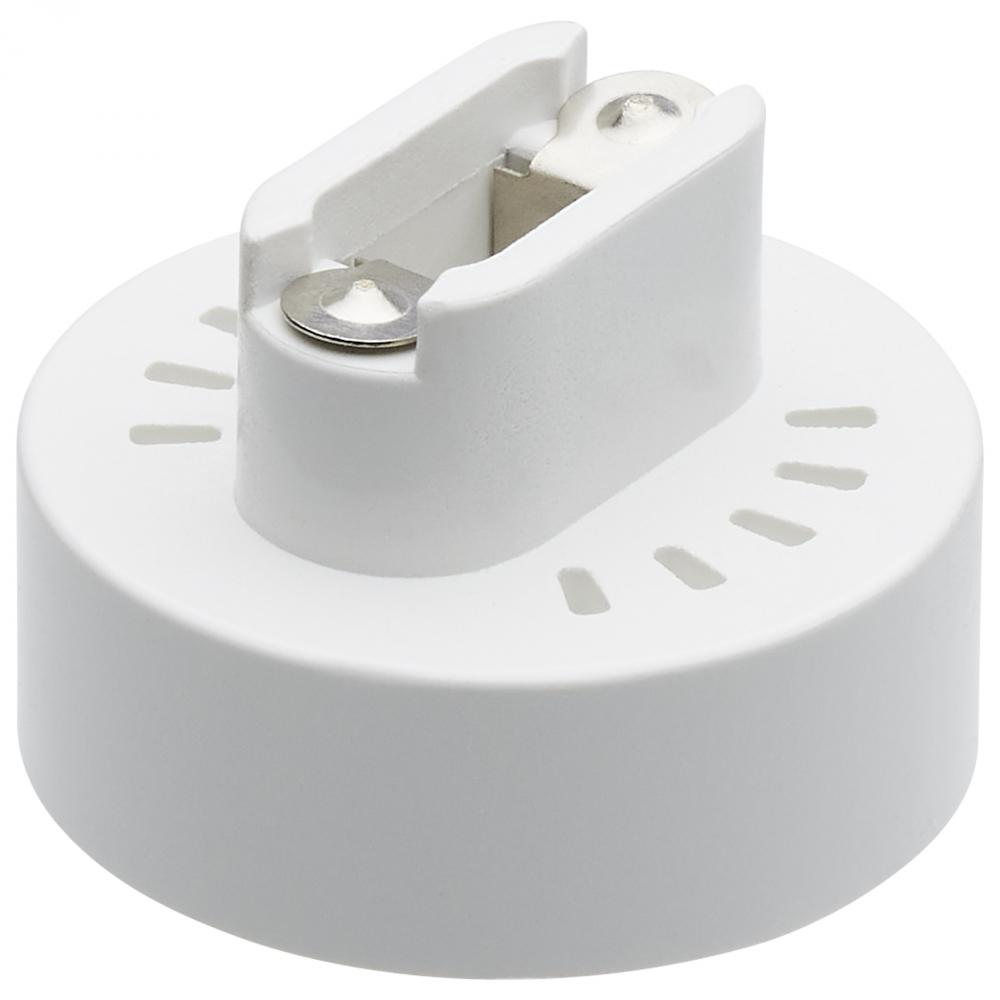

Optional R17d Base Caps Included
Feature 8:
Compatible with SATCO S8002 10W Emergency Driver
Feature 9:
Suitable for Open and Enclosed Fixtures
Flicker Free:
No
Flourescent Equivalent:
59W/86W/96W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Includes:

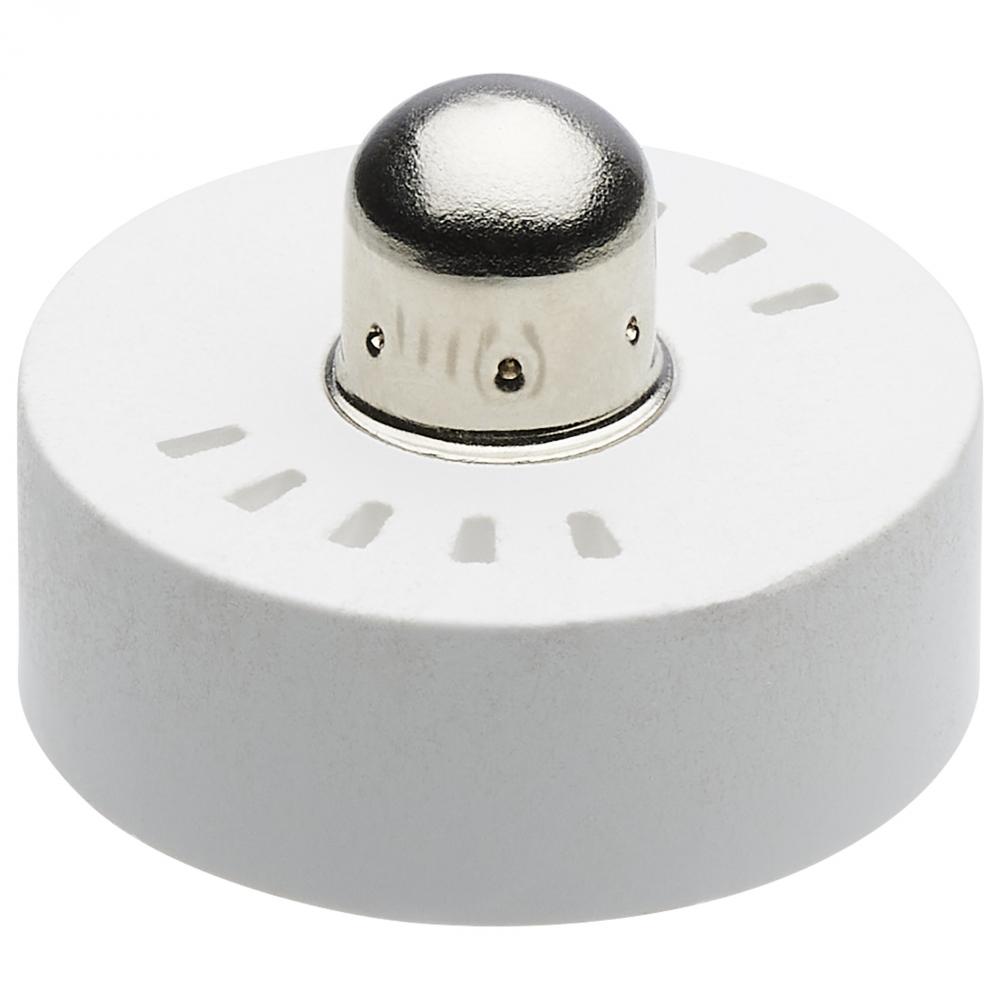

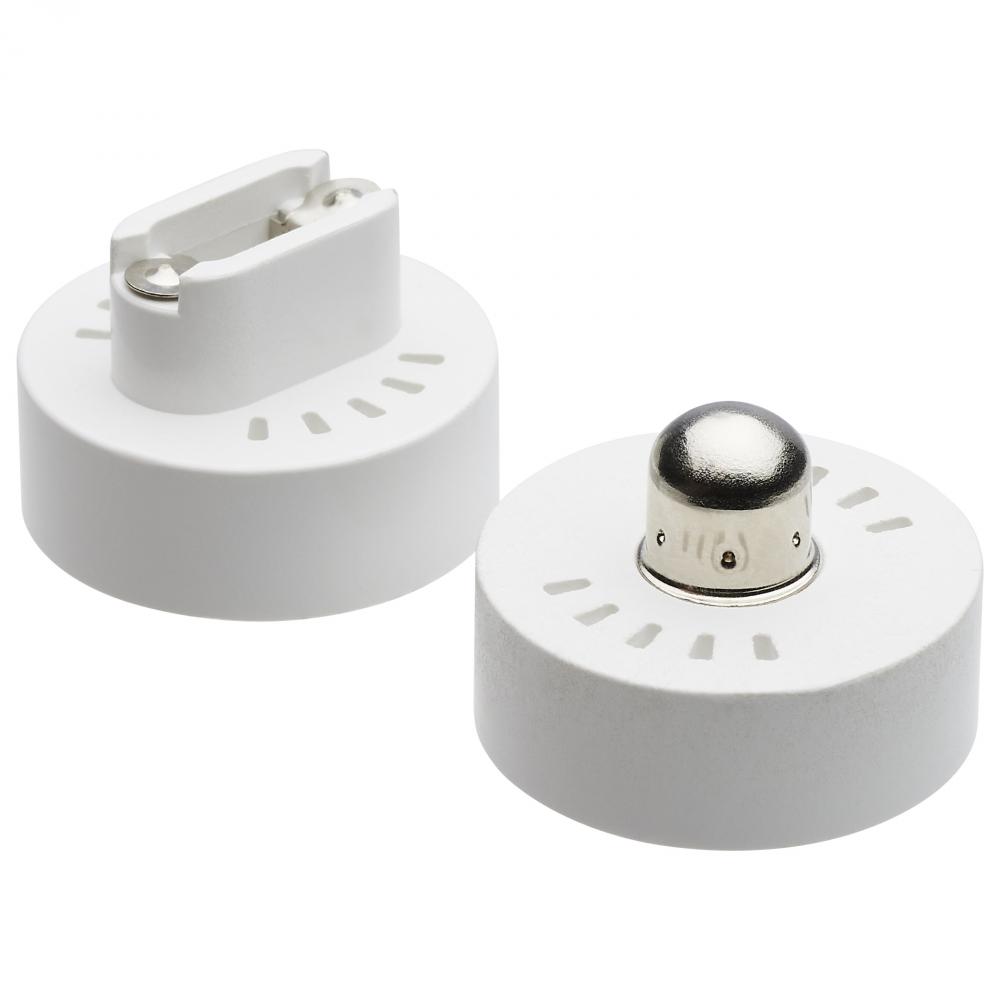

(1) Set R17d & Fa8 Endcaps
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:

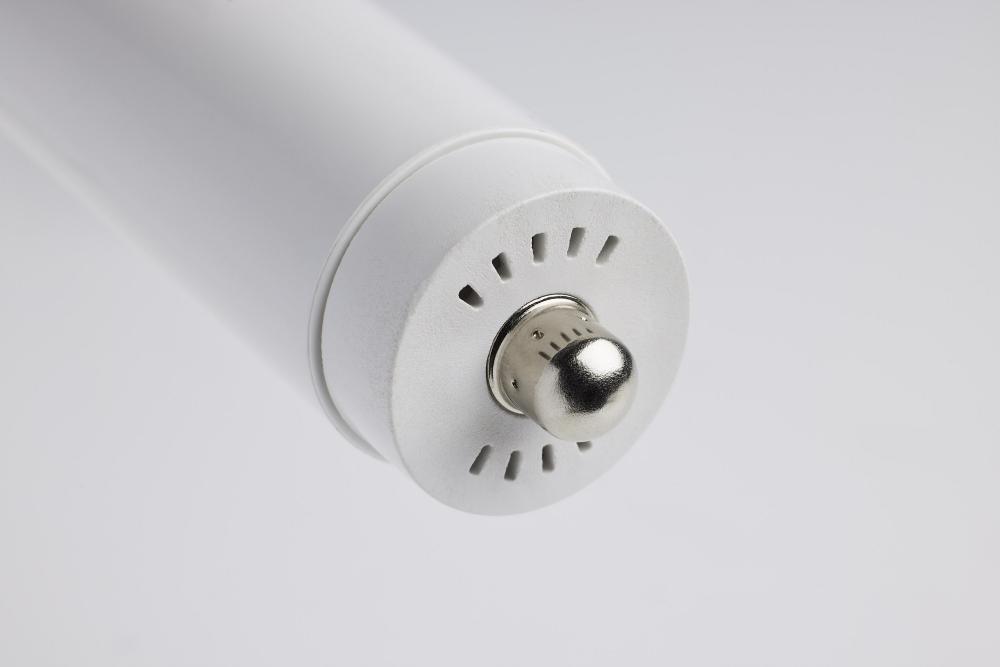

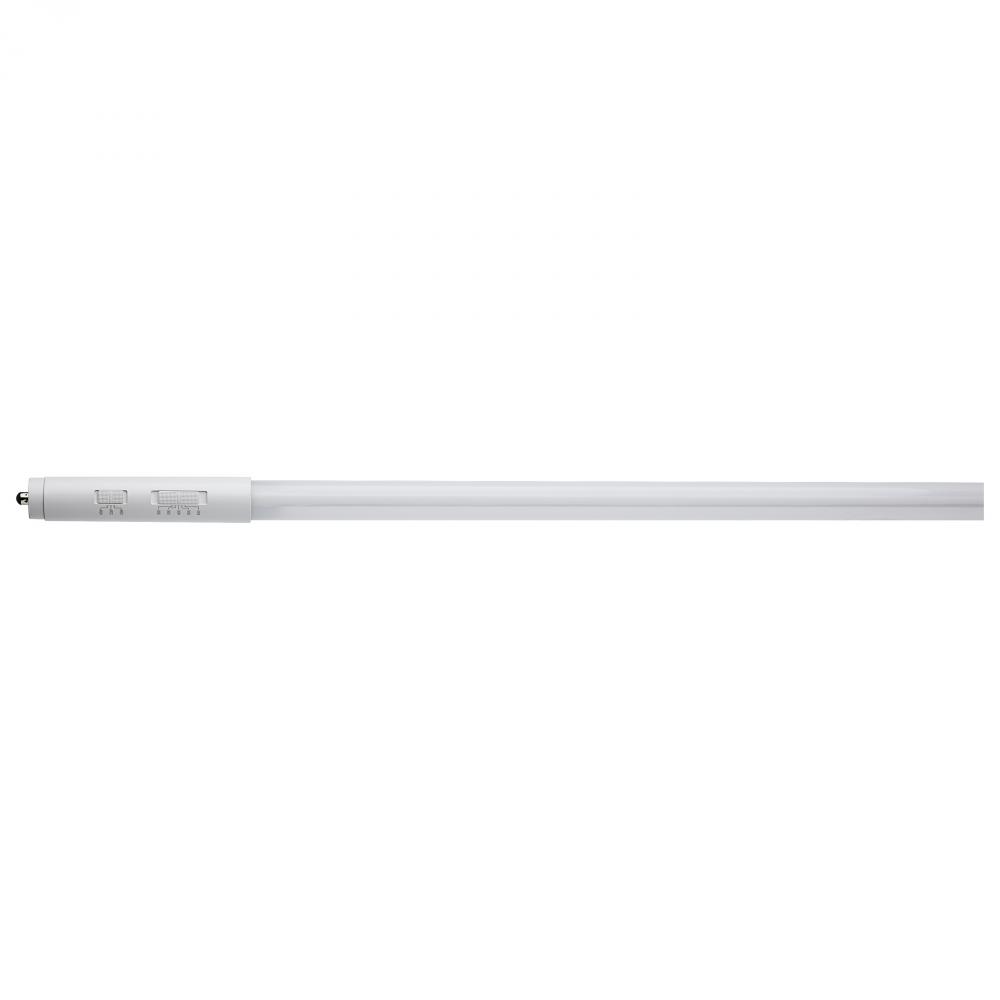

SATCO NUVO's S11758 T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a
Material:
Glass

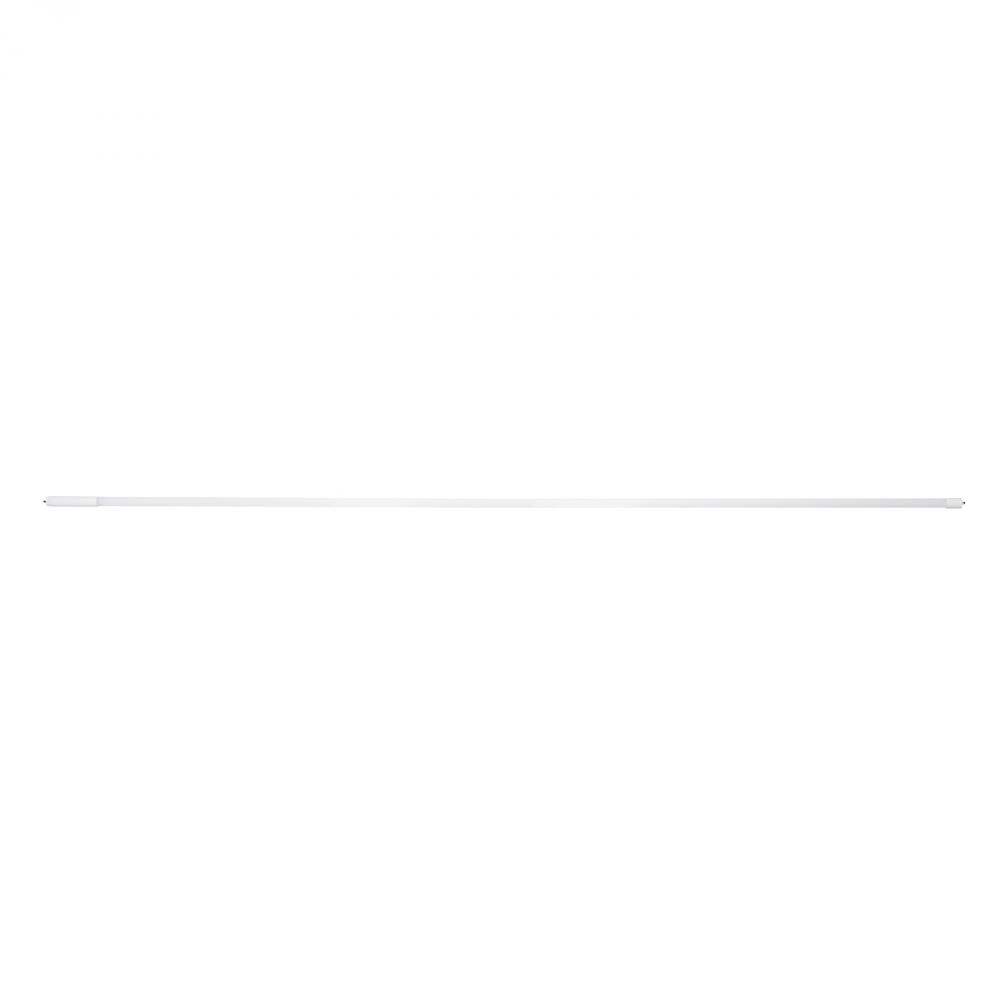

Nominal Length:
96.0
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Egg Crate
Power Factor:
0.9
Quantity In Pack:
10
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a variet
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
40T8L/96/8CCT5/B/CF/U
Specification Notes:
Not for use in fully enclosed vapor tight fixtures
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%

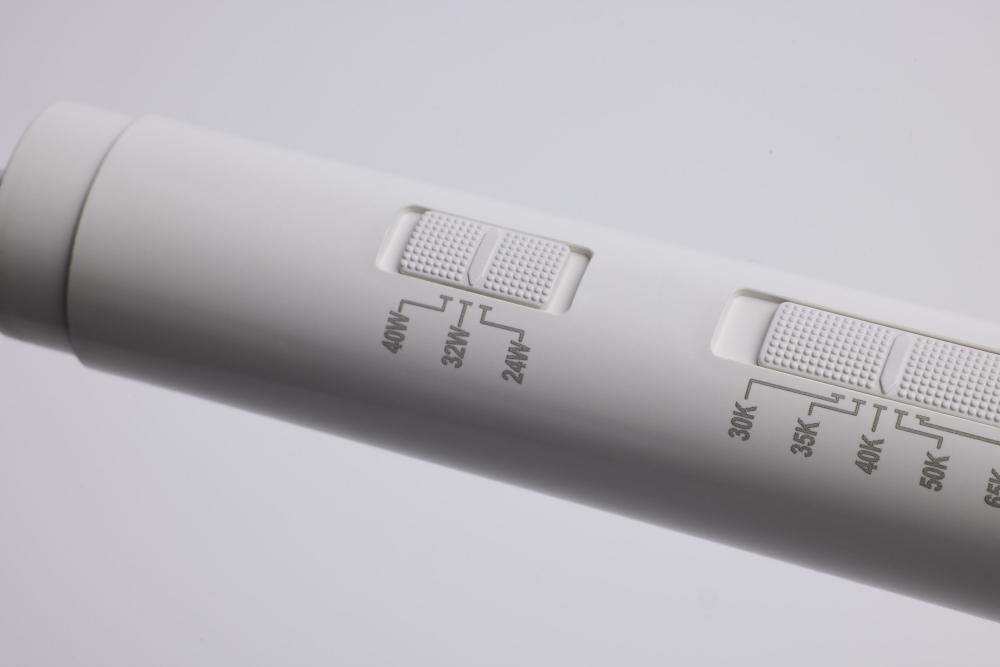

Wattage Selectable:
Yes
Watts:
24W/32W/40W
Country of Origin- China
