Part Number: 40UWWZY / Vendor ID #: 4799
20 Watt; 8 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face;
$69.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer may be Out Of Stock.

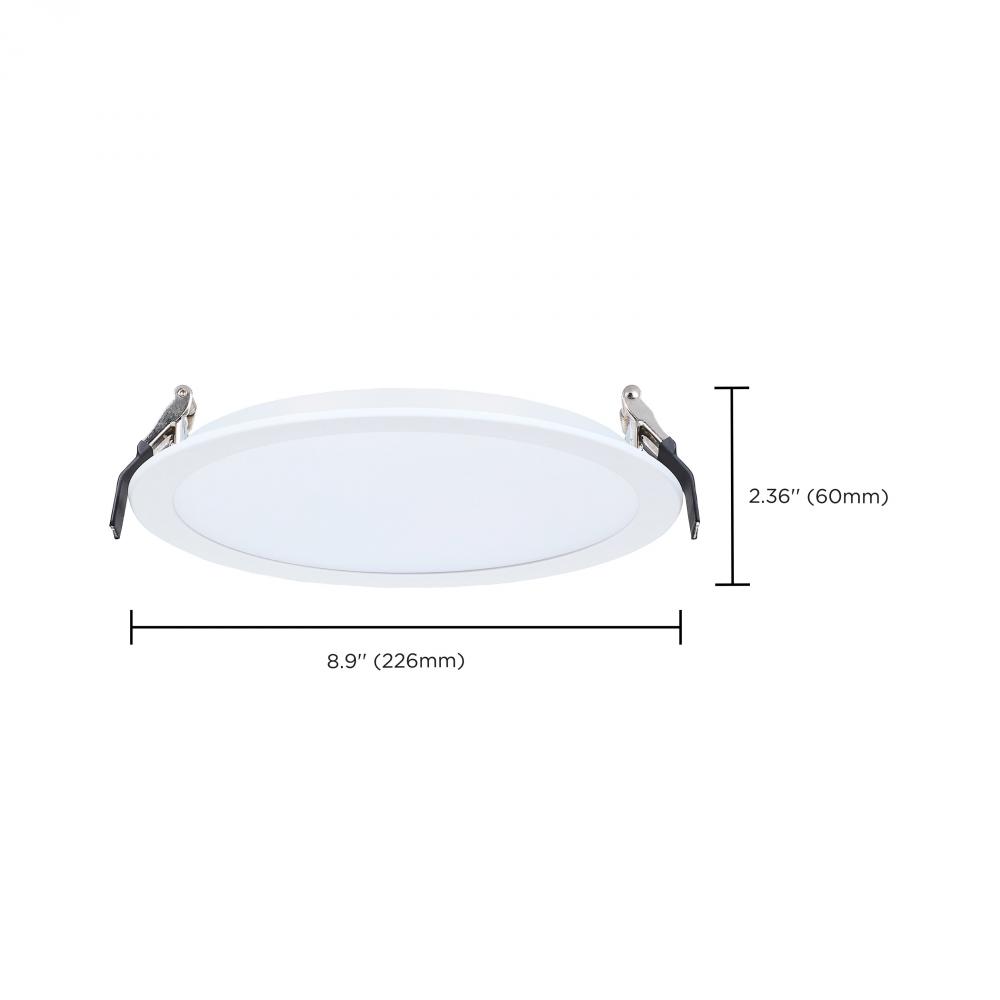

Dimensions
Height: 2.36"
Width: 8.90"
Product Overview

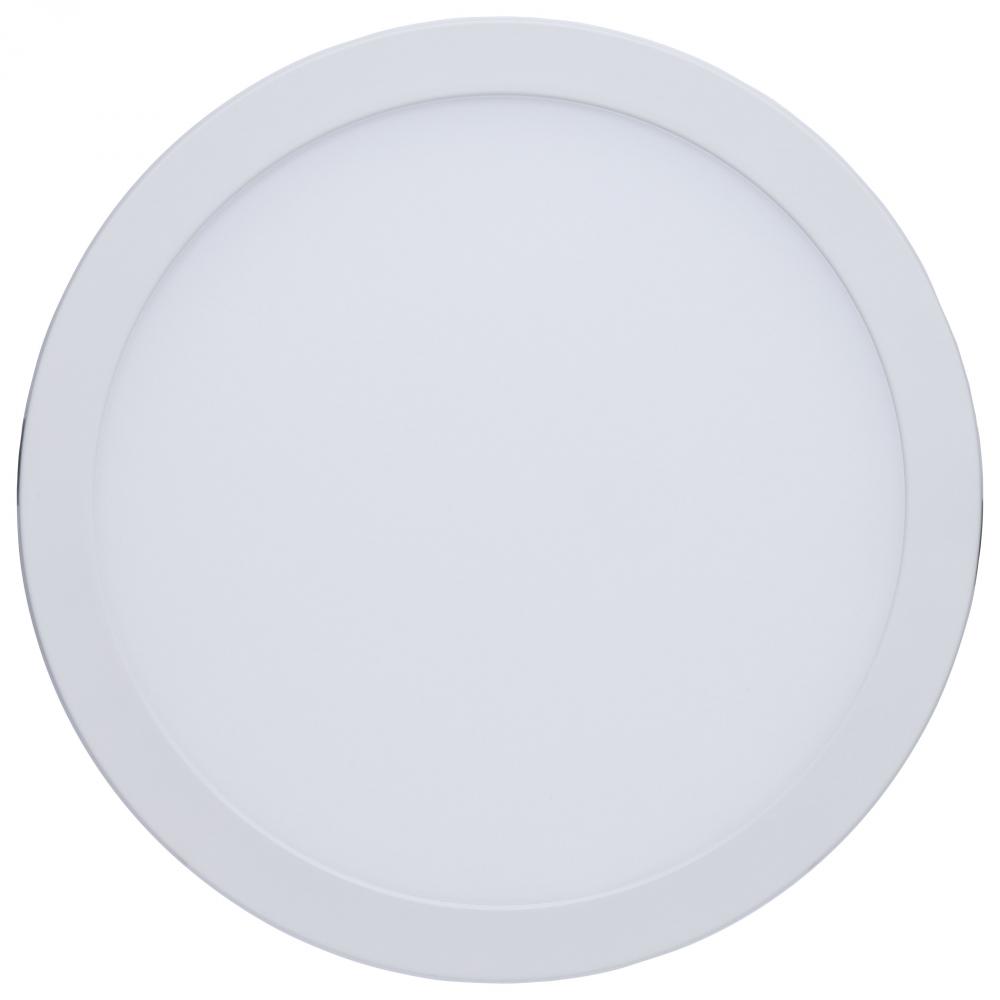

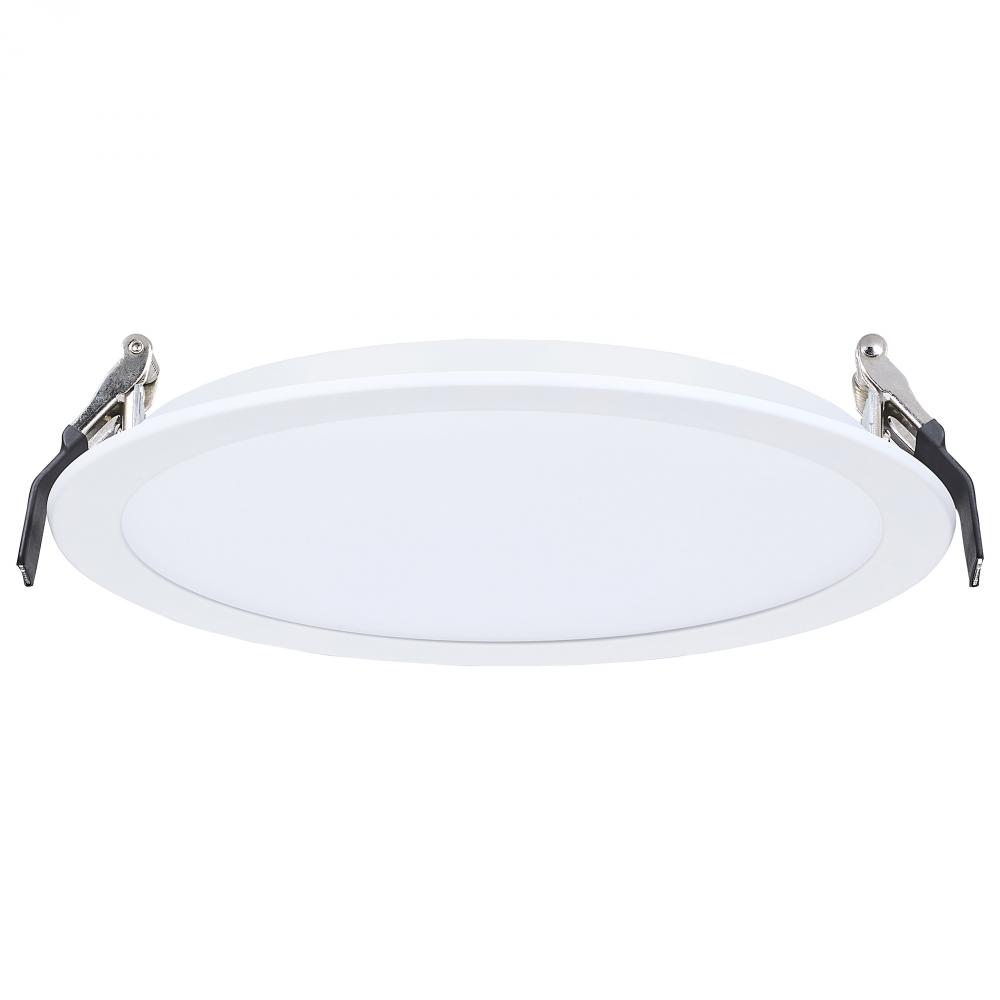

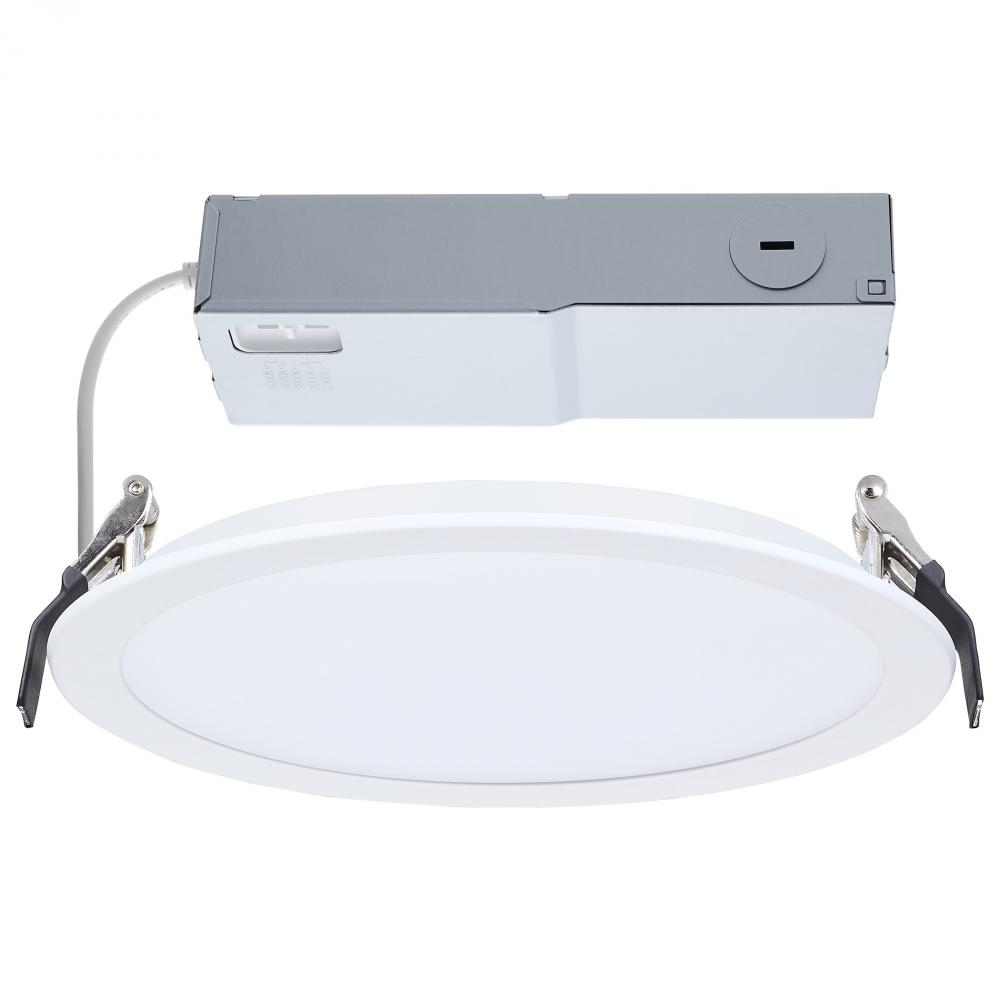

20 Watt; 8 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; Round; White Finish
 Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Direct Wire
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
8.9
Dimmable:
Yes-Dimmable
Each Height:
9.06
Each Length:
9.21
Each Width:
2.68
Lumens:
2000L
Tariff Code:
9405.11.6010
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.190A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
Can Size:
8 in.
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
Cambodia
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Triac at 120V / 0-10V at 120-277V
Dimming Type:
Dual Dimming
Each Cube:
0.1294
Each Quantity:
1
Efficacy:
100.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
3994413
FCC Compliant:
Yes
Feature 1:
8-inch Diameter
Feature 10:
FT6 Cable Included for Commercial Plenums
Feature 2:
Dual Dimming
Feature 3:
2000 Lumens
Feature 4:
20W
Feature 5:
Wet Location Rated
Feature 6:
AT Rated
Feature 7:
Suitable for Bathrooms
Feature 8:
90 CRI
Feature 9:
5 CCT Selectable
Finish Family:
White
Fixture shape:
Round
Has Camera:
No

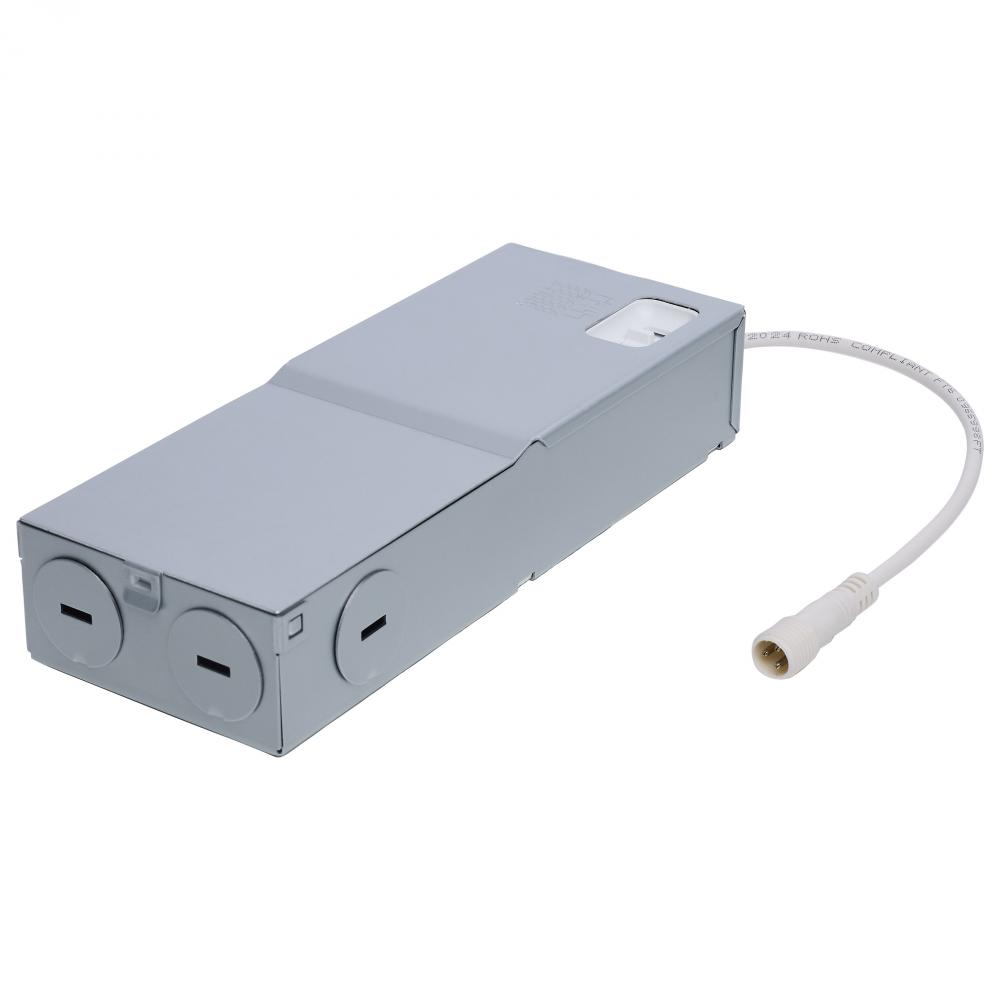

Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Polycarbonate (PC)
Long Description:

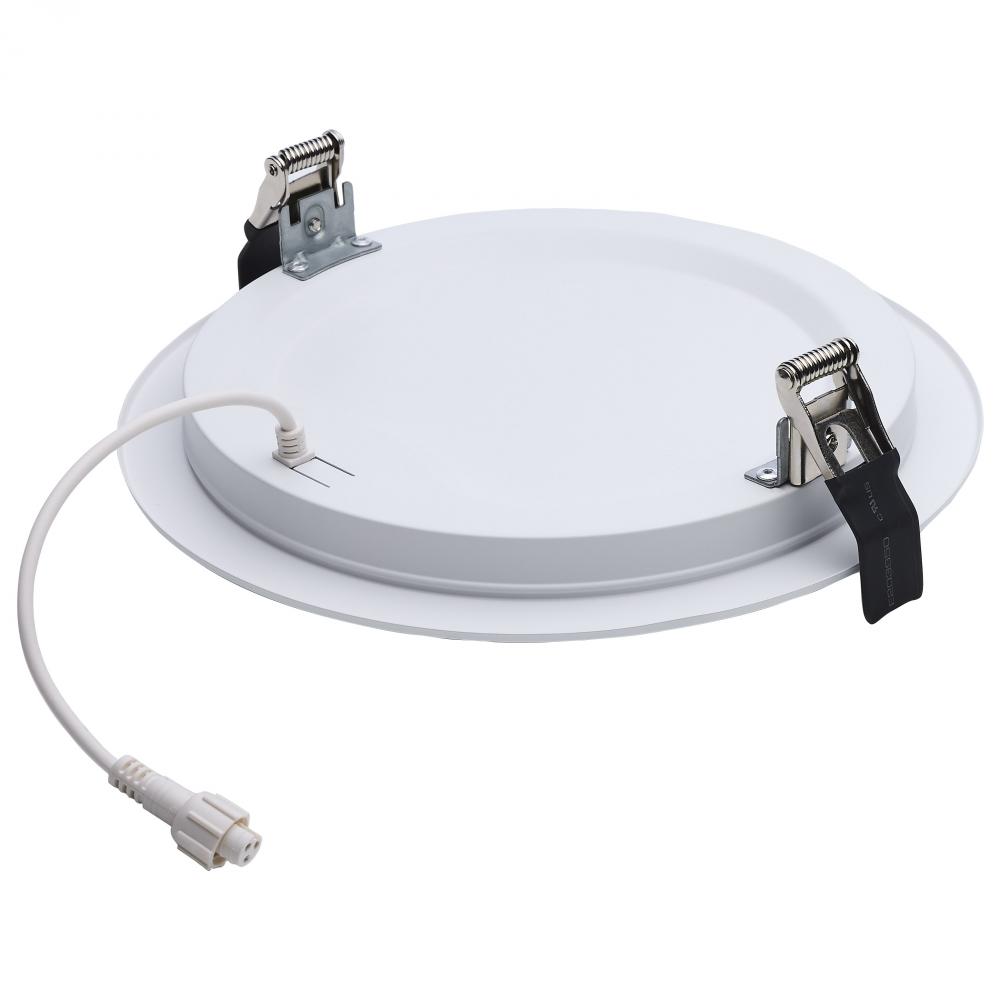

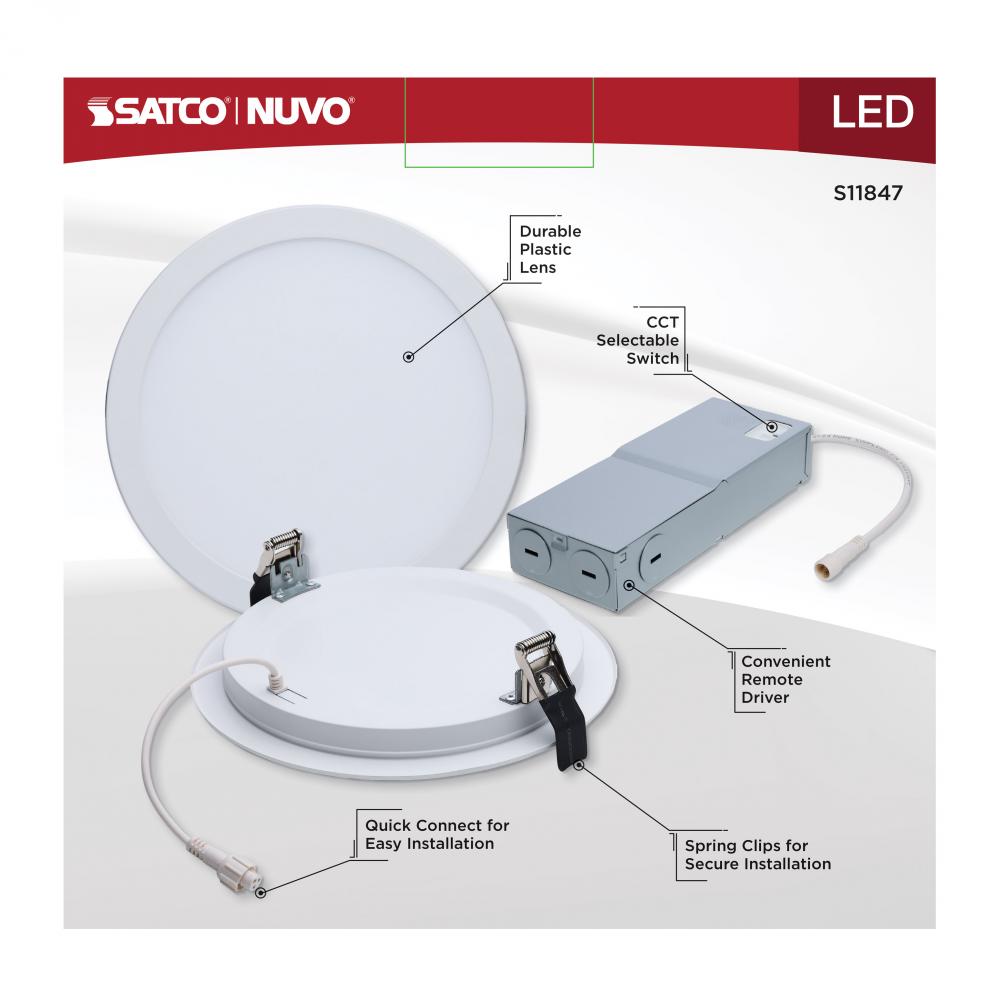

SATCO NUVO's S11847 LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide 8-inch diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation
Material:
Steel
Mounting Diameter:
7.87
Mounting Height:
3.94
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation to create the
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
20WLED/DW/8/CCT/RND/FL/DD
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Material:
Steel
Wattage Selectable:
No
Weight Lb.:
1.61
