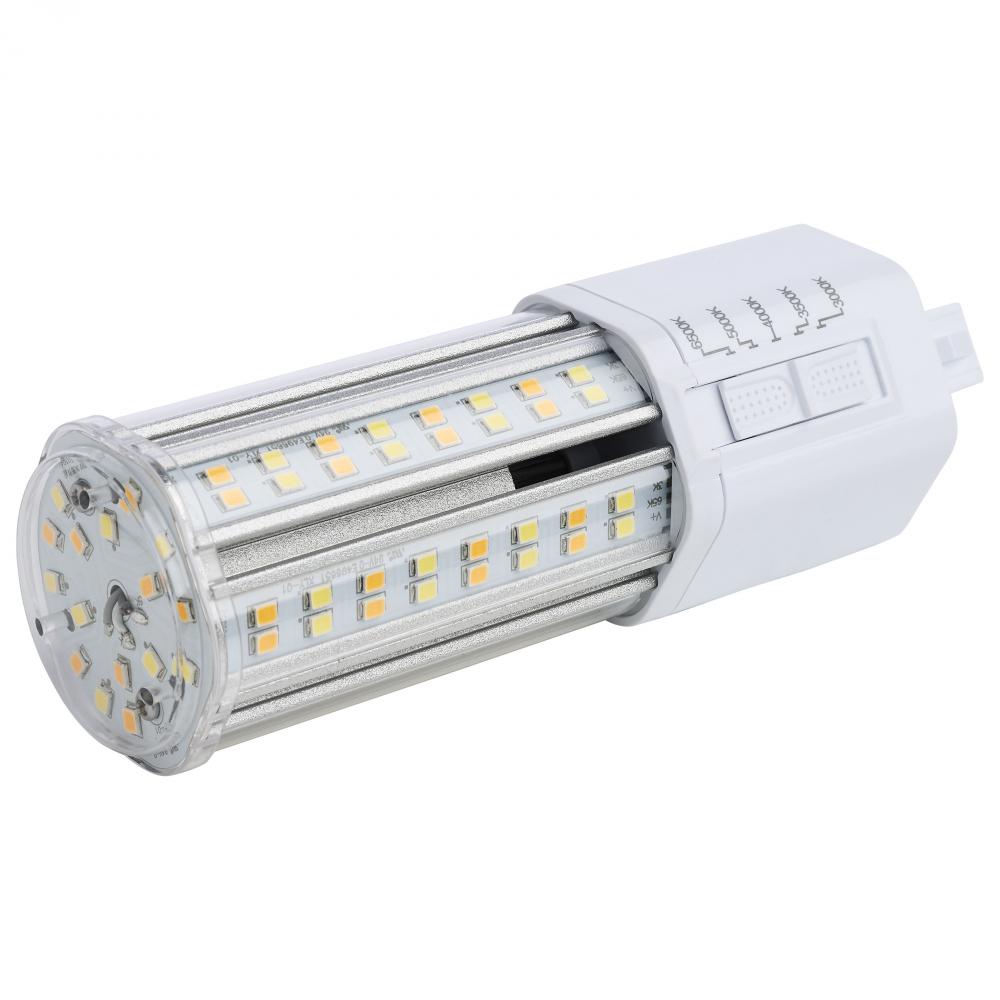

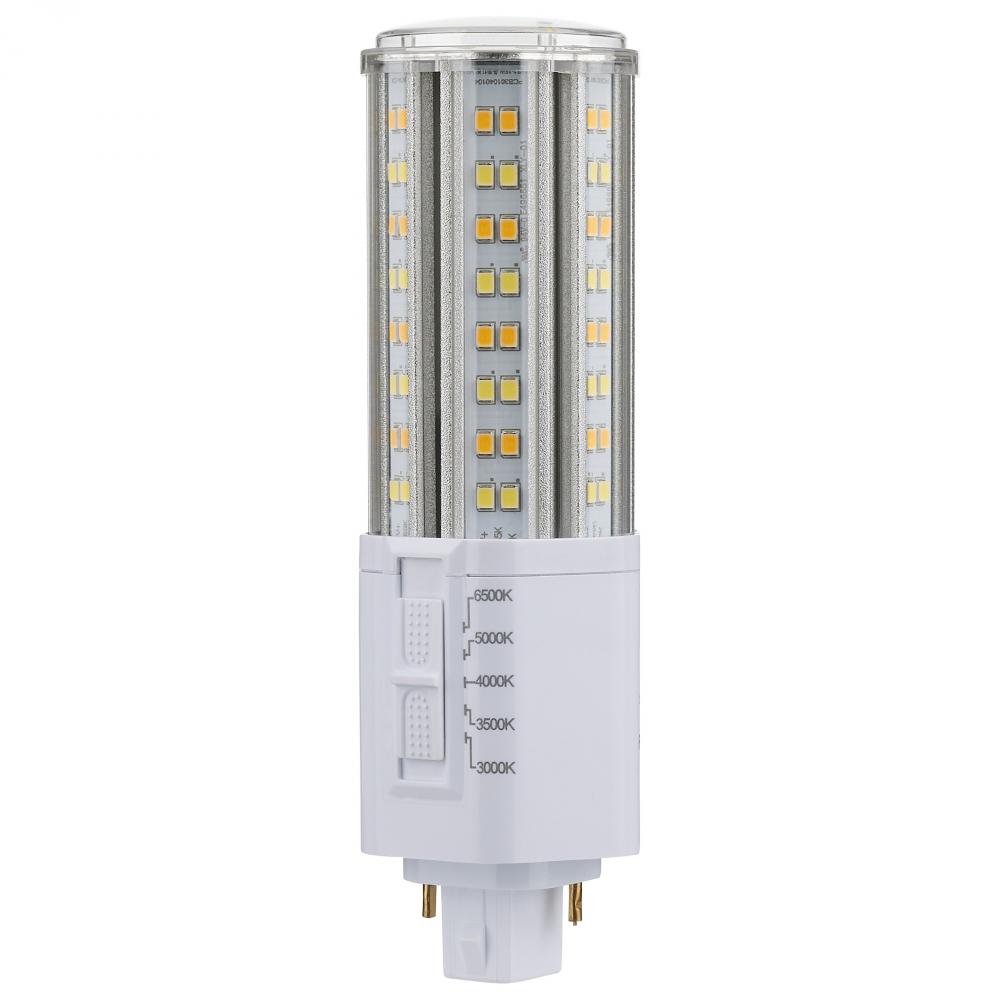

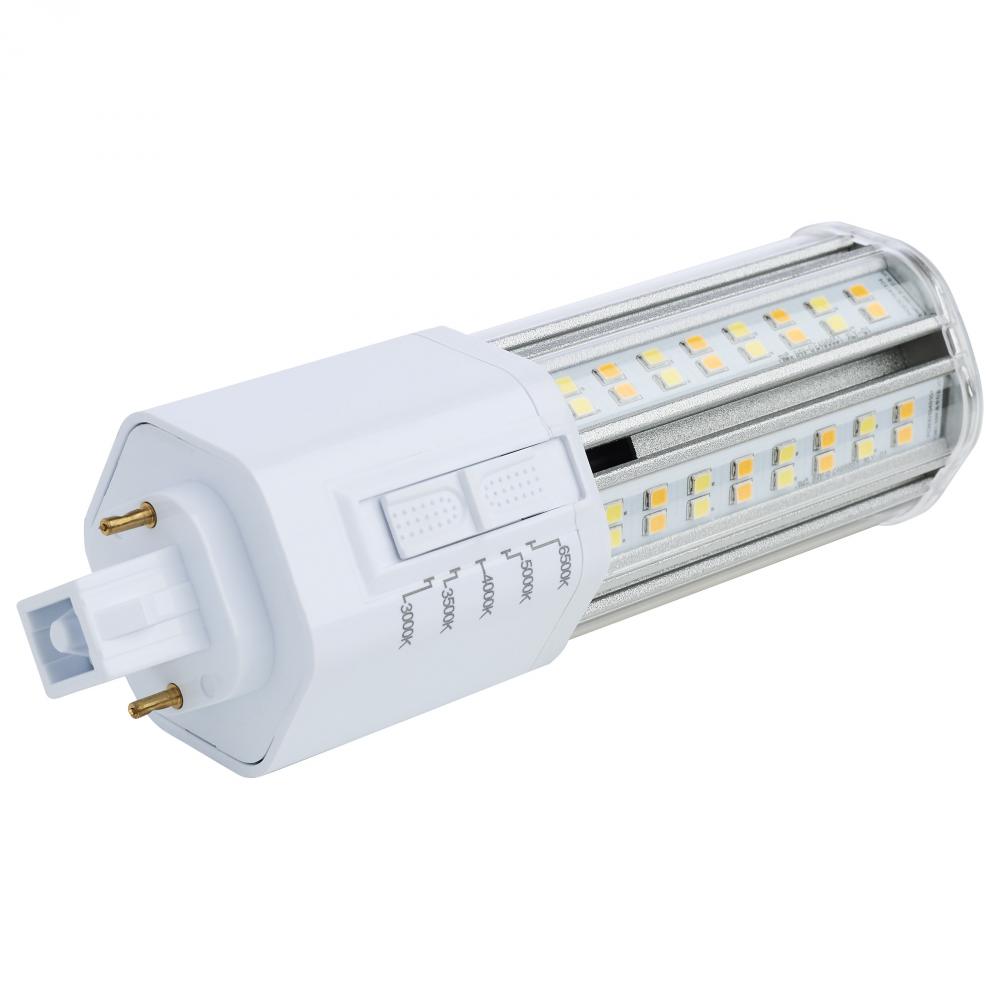

14 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 (40UTV9J)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
39
00
/
/ 1
($39.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40UTV9J
Dimensions:
Width: 1.95"
White
Availability:
- Manufacturer has 1040 items available.
Description
Details
Downloads
14 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 Volt
Internal #:
40UTV9J
Category:
Light Bulbs
Subcategory:
Compact Fluorescent (CFL) Bulbs
Lumens:
1601-2600
Kelvin:
3001-3500
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V/277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
PL
Diameter:
1.95
EA Length:
2.56
Harmonized Codes:
8539.52.0091
Length:
5.89
Lumens:
1750L-1820L
Shap Carton Width:
2.36
Ship Carton Height:
7.17
Ship Weight:
0.5
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.4
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
300
Bulb ANSI Base:
G24d
Bulb Base:
G24d (2-Pin)
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0251
Cartons Per Unit:
1

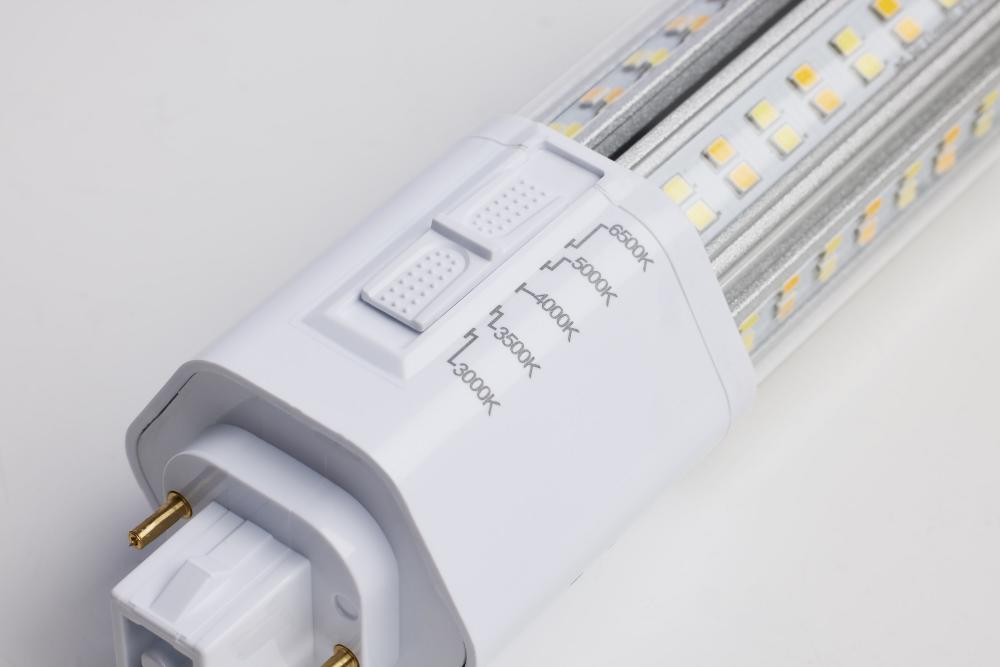

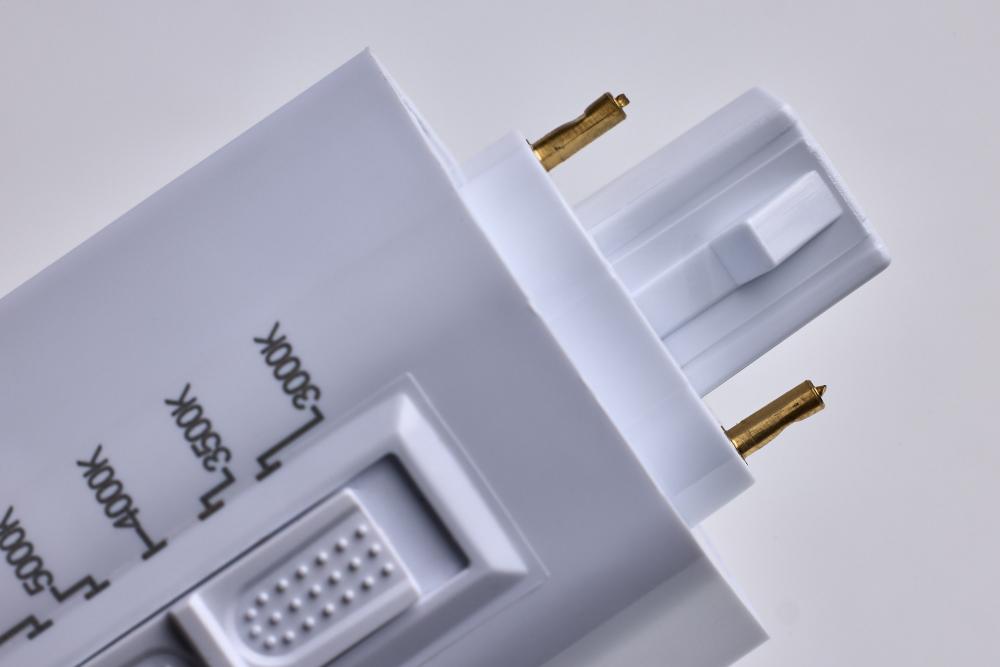

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
82
DLC Approved:
No
Efficacy:
125.00/127.50/130.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Both
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 10:
G24d Base
Feature 2:
High Lumen Output
Feature 3:
Rated for Extreme Temperatures
Feature 4:
300 Degree Beam Angle
Feature 5:
26W Fluorescent Replacement
Feature 6:
Damp location rated
Feature 7:
Type B Ballast Bypass
Feature 8:
Rated for Enclosed Fixtures
Feature 9:
120/277V Dual Voltage
Flourescent Equivalent:
26W
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Suggested wattage equivalency = 26W CFL
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
Designed to deliver impressive brightness, SATCO|NUVO's S21413, 14-watt LED High Lumen PL Lamps outshine traditional 26-watt fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their a
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +50C (+122F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
16
RoHS Compliant:
Yes
Romance Copy:
Designed to deliver impressive brightness, LED High Lumen PL Lamps outshine traditional fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their advanced ballast bypass Type B technology,
SDS class:
LED_Lamp
Short Description:
14W/PL/LED/HL/5CCT/G24
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
14W
Additional Information:
- Country of Origin- China
