Part Number: 40UTQCZ / Vendor ID #: 4799

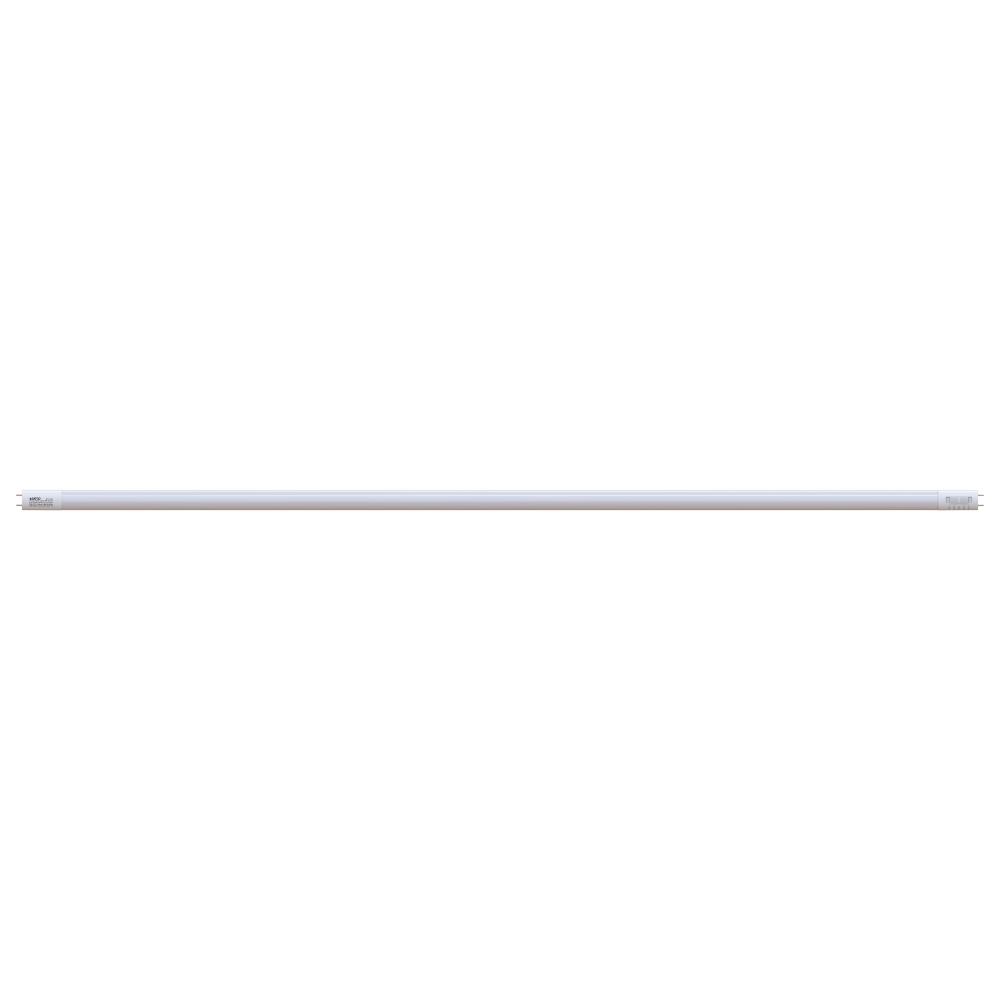

14 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt
$16.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 63930 items available.
Dimensions
Width: 1.00"
Product Overview
14 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt
 Standard Information
Category:
Lamps
Subcategory:
LED Lamps
Lumens:
1601-2600
Kelvin:
3001-3500
Refinement Options
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
47.8
Harmonized Codes:
8539.52.0051
Length:
47.17
Lumens:
1700L/1700L/1800L/1800L/1800L
Shap Carton Width:
0.9399999999999999
Ship Carton Height:
0.9399999999999999
Ship Weight:
0.45
Warranty:
5-Years
Weight:
0.45
Additional Info:
Non CCT Selectable options are S39913-S39916
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0244
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-9MV7GT
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
121.43/125.00/128.57 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
MOL: 47.17 inches, MOD: 1.00 inch
Feature 2:
Medium Bi Pin base
Feature 3:
CCT Selectable
Feature 4:
Rated for 50,000 hours
Feature 5:
Damp Location Rated
Feature 6:
Single or double-ended wiring
Feature 7:
5-Year Warranty
Flourescent Equivalent:
32W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Incandescent Equivalent:
75W
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Material:
Glass / Plastic
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
4
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K
SDS class:
LED_Lamp
Short Description:
14T8/LED/48-5CCT/BP/SE-DE
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Wattage Selectable:
No
Watts:
14W
