14 Inch LED Cloud Fixture 0-10V Dimming; CCT Selectable (40JJNXE)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
98
00
/
/ 1
($98.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JJNXE
Dimensions:
Height: 3.55"
Width: 14.00"
White
Availability:
- Manufacturer has 629 items available.
Recommended Items
Description
Details
Downloads

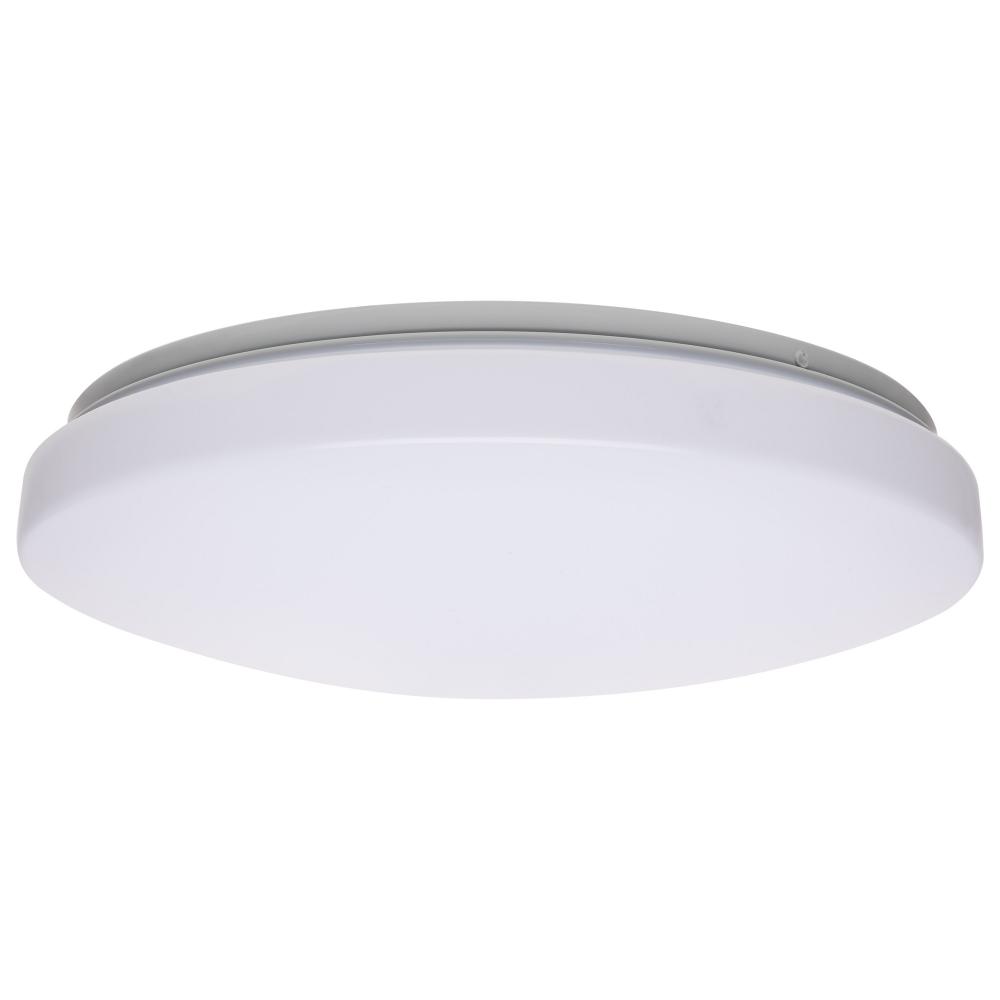

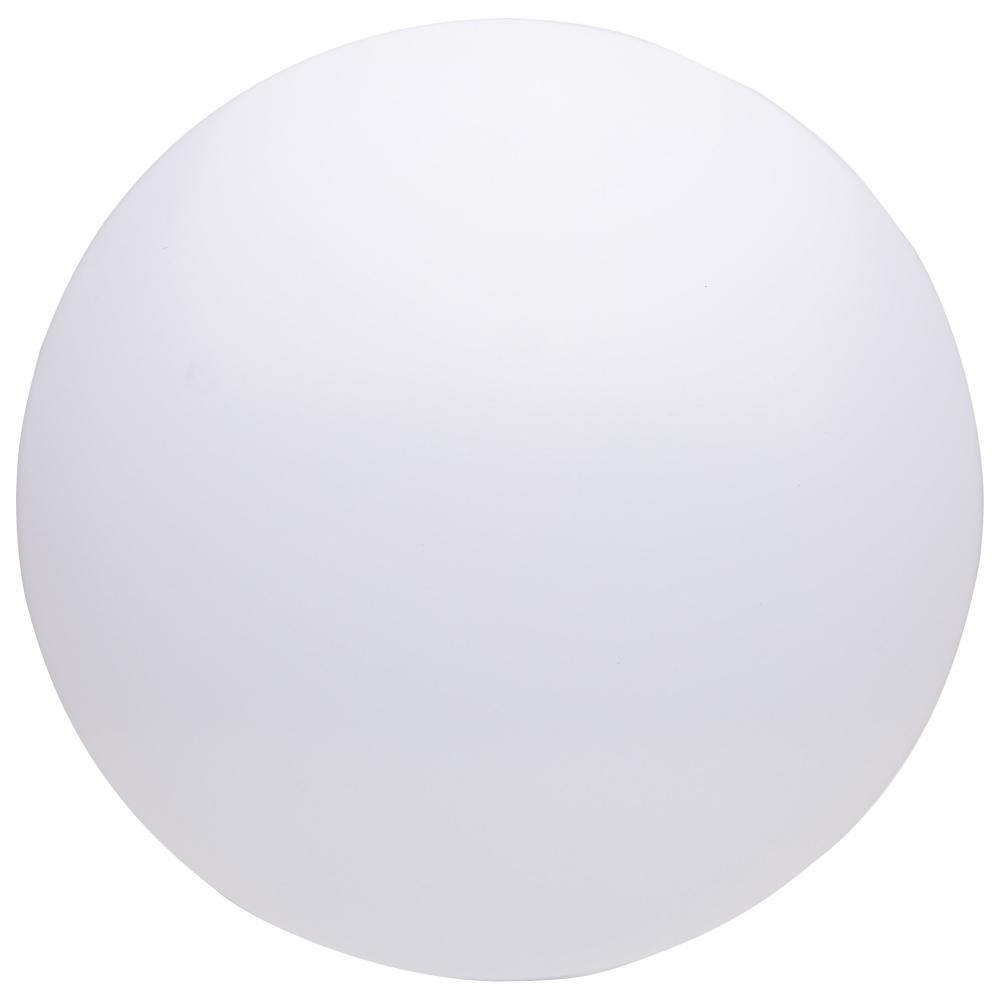

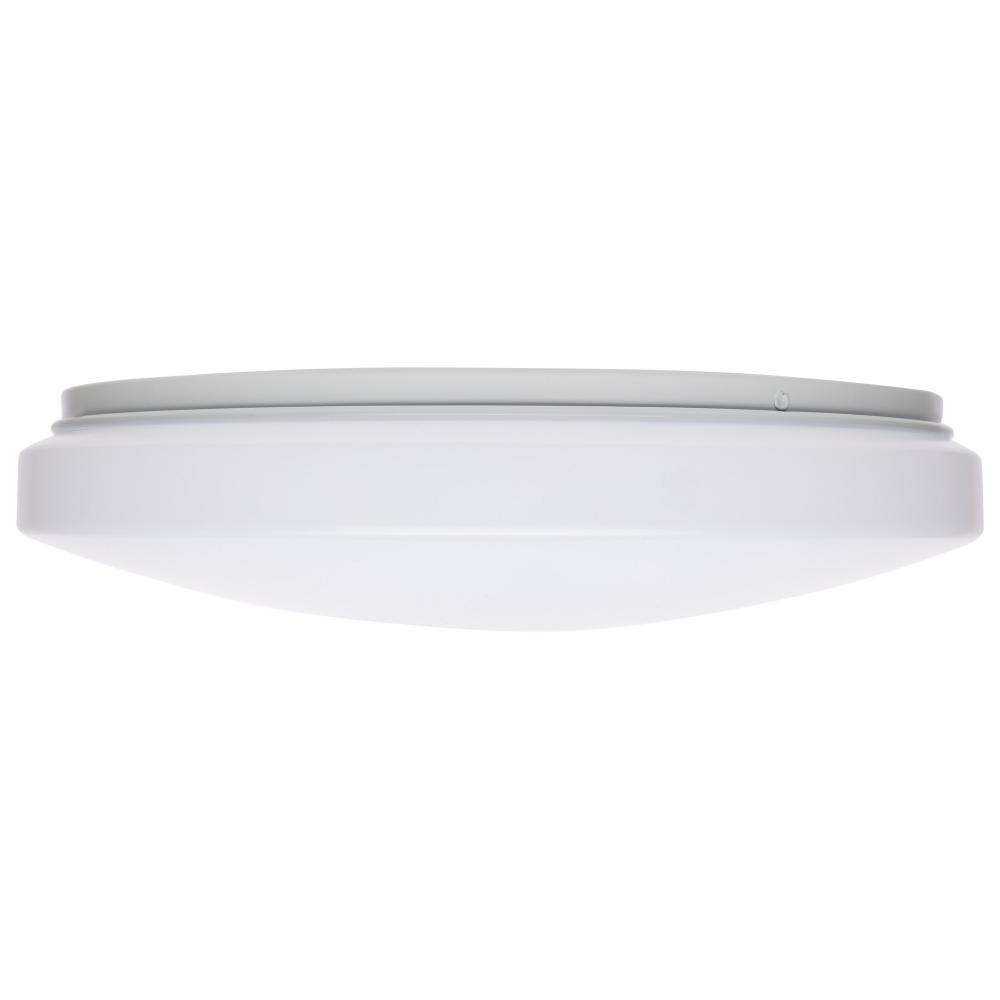

14 Inch LED Cloud Fixture 0-10V Dimming; CCT Selectable
Internal #:
40JJNXE
Category:
Flush Mounts
Subcategory:
Bowl Flush Mounts
Option:
Energy Star
, LED
, Prop 65
Lumens:
1101-1600
Kelvin:
4001-4500
Category:
Close-to-Ceiling
Sub Category:
Flush
Style:
Contemporary
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
14
Dimmable:
Yes-Dimmable
Each Height:
15.75
Each Length:
3.74
Each Width:
15.75
Lumens:
1450L/1550L/1450L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Amps:
0.167-0.722A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Connection:
Hardwire
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Each Cube:
0.5369
Each Quantity:
1
Efficacy:
72.50/75.00/77.50 LPW
ES Category:
Ceiling Mount
ES Unique ID:
ESID-2394226
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable (3000K, 4000K, 5000K)
Feature 2:
Dual Voltage 120V/277V
Feature 3:
90 CRI
Feature 4:
Damp location rated
Feature 5:
Durable PMMA Cover
Feature 6:
Slim Refined Style
Finish Family:
White
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Acrylic
Long Description:
Introducing SATCO's 62-1226, 20-watt LED Cloud Fixture, the perfect lighting solution for any high traffic common area. With its simple and refined designed, this dimmable fixture will complement any space. Featuring ColorQuick CCT selectable technolog
Material:
Steel
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Quantity In Pack:
1
R9 Value:
73
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
LED Cloud Fixtures have a simple, refined design featuring ColorQuick CCT Selectable technology for even more versatility. Available in 11 inch or 14 inch sizes with a white PMMA acrylic diffuser, these fixtures are a perfect choice for illuminating high t
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
14" ACRYLIC LED FLUSH FIXTURE
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
1.82
