Part Number: 40UTX7W / Vendor ID #: 4799

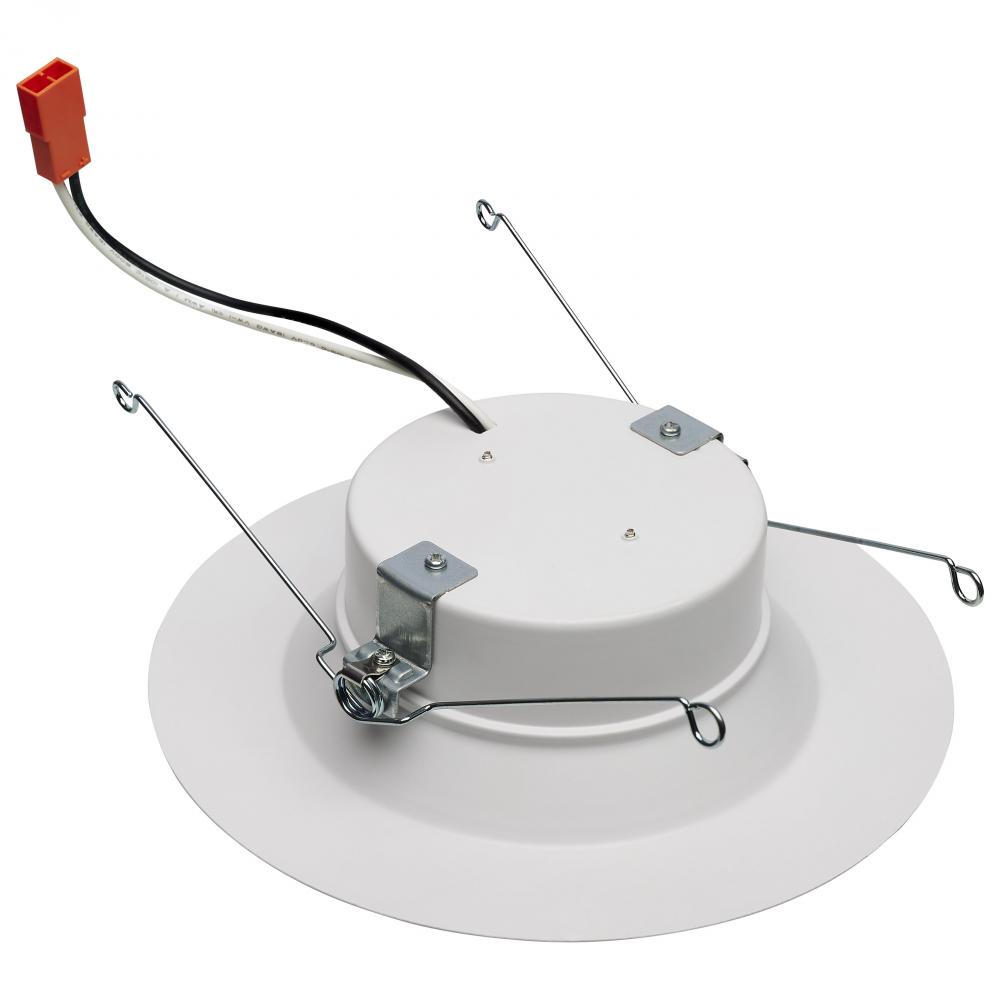

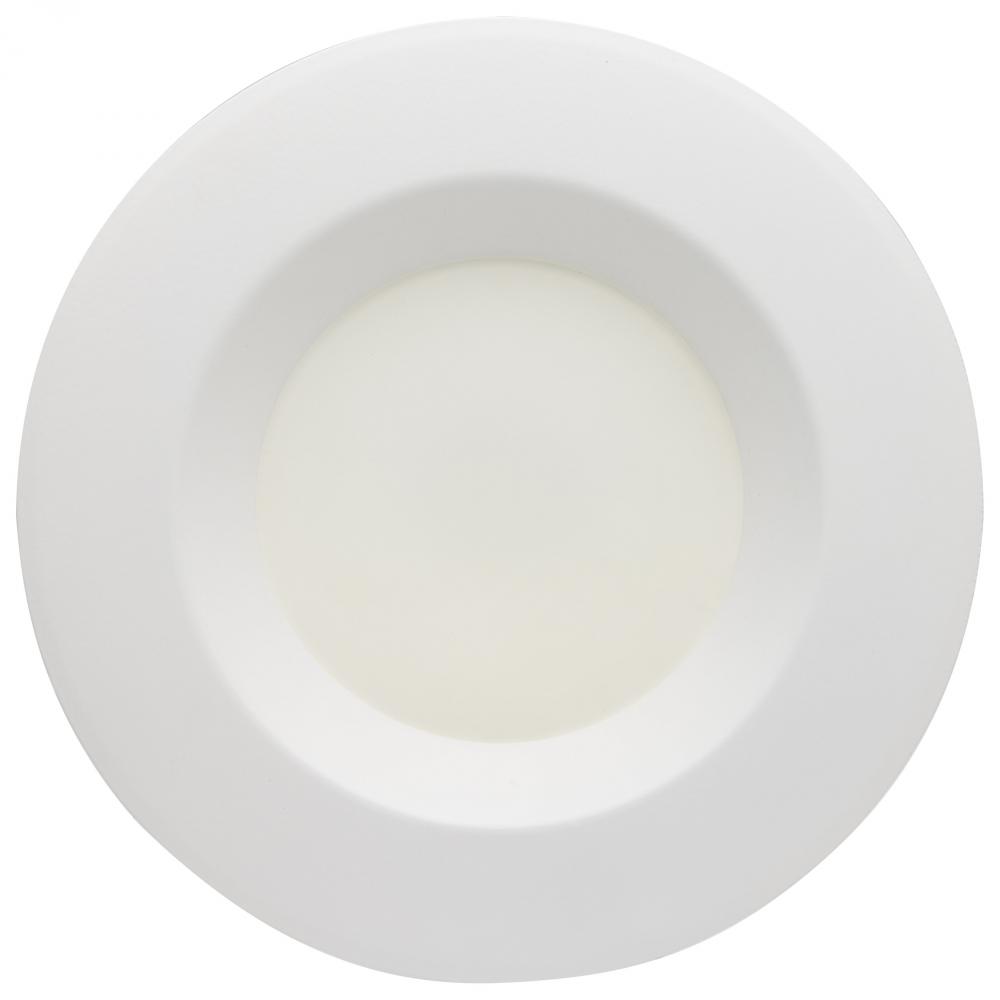

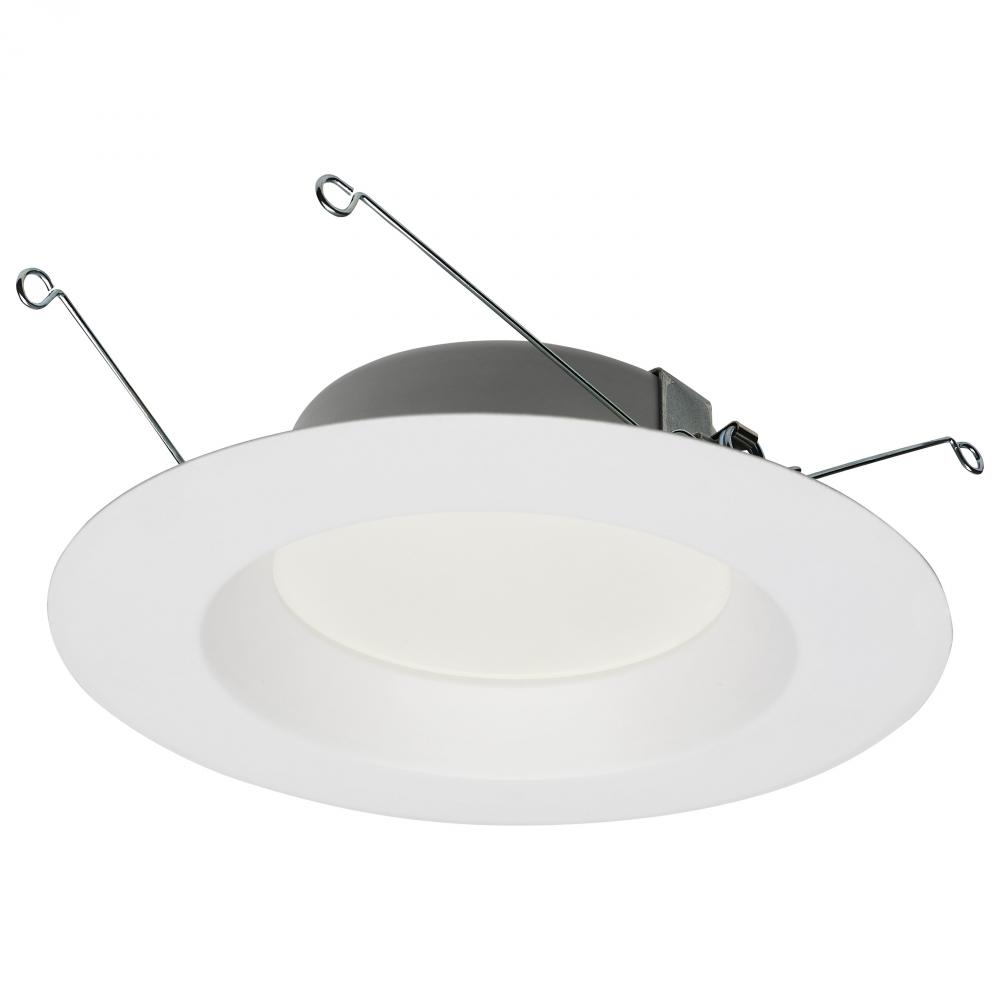

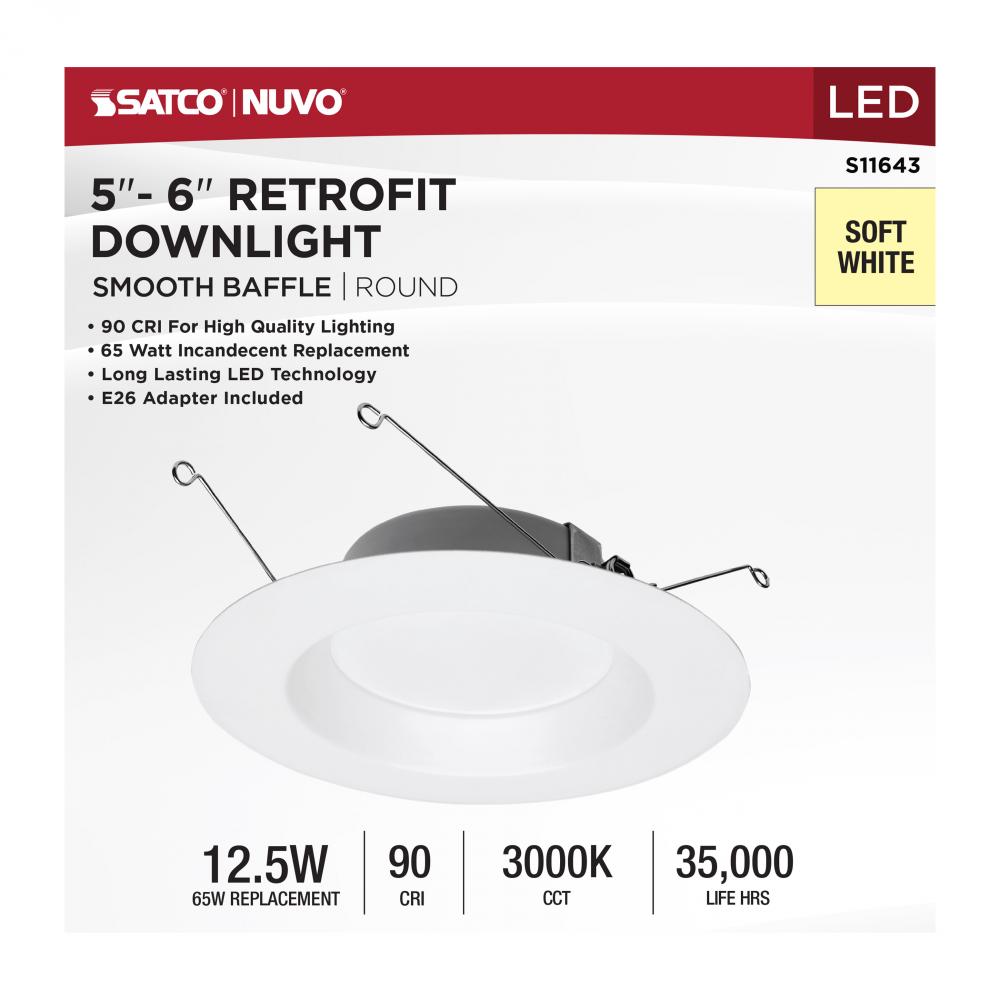

12.5 Watt LED Downlight Retrofit; 5-6"; 3000K; 120 Volts; Dimmable; White Finish
$19.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 308 items available.
Dimensions
Height: 1.97"
Width: 7.36"
Product Overview
12.5 Watt LED Downlight Retrofit; 5-6"; 3000K; 120 Volts; Dimmable; White Finish
 Standard Information
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Avg Rated Hours:
35000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White
Diameter:
7.36
Dimmable:
Yes-Dimmable
Each Height:
8.07
Each Length:
8.07
Each Width:
2.76
Lumens:
900L
Tariff Code:
8539.52.0091
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.104A
ANSI Base:
E26 Adapter
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
Can Size:
5-6 in.
CCT Selectable:
No
CEC:
California T24 2016 - 2025 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.36 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Each Cube:
0.104
Each Quantity:
1
Efficacy:
72.00 LPW
FCC Compliant:
Yes

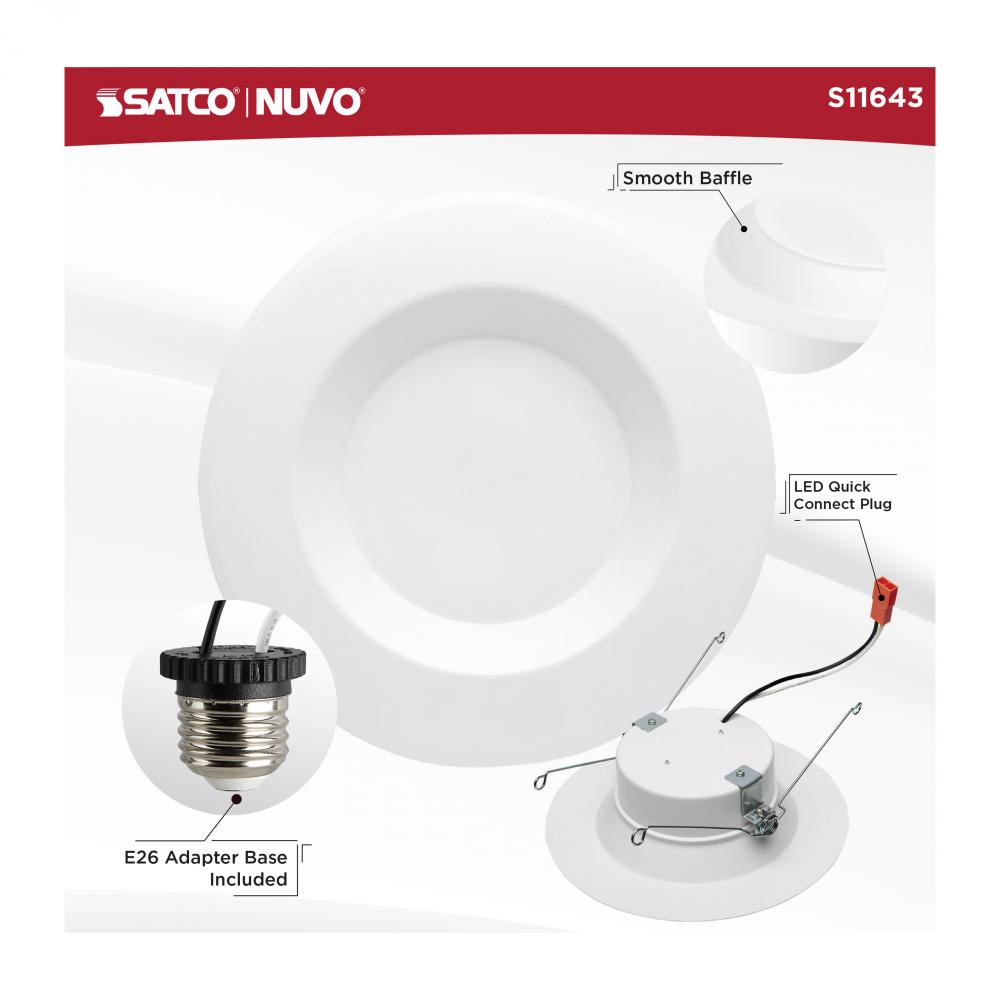

Feature 1:
Smooth Baffle Round
Feature 2:
90 CRI
Feature 3:
E26 Adapter
Feature 4:
Wet Location
Feature 5:
Compatible with 5-6 inch standard housing
Feature 6:
T24 Compliant
Feature 7:
Phase-Cut Dimmable down to 10 percent
Finish Family:
White
Fixture shape:
Round
Has Camera:
No
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Includes:

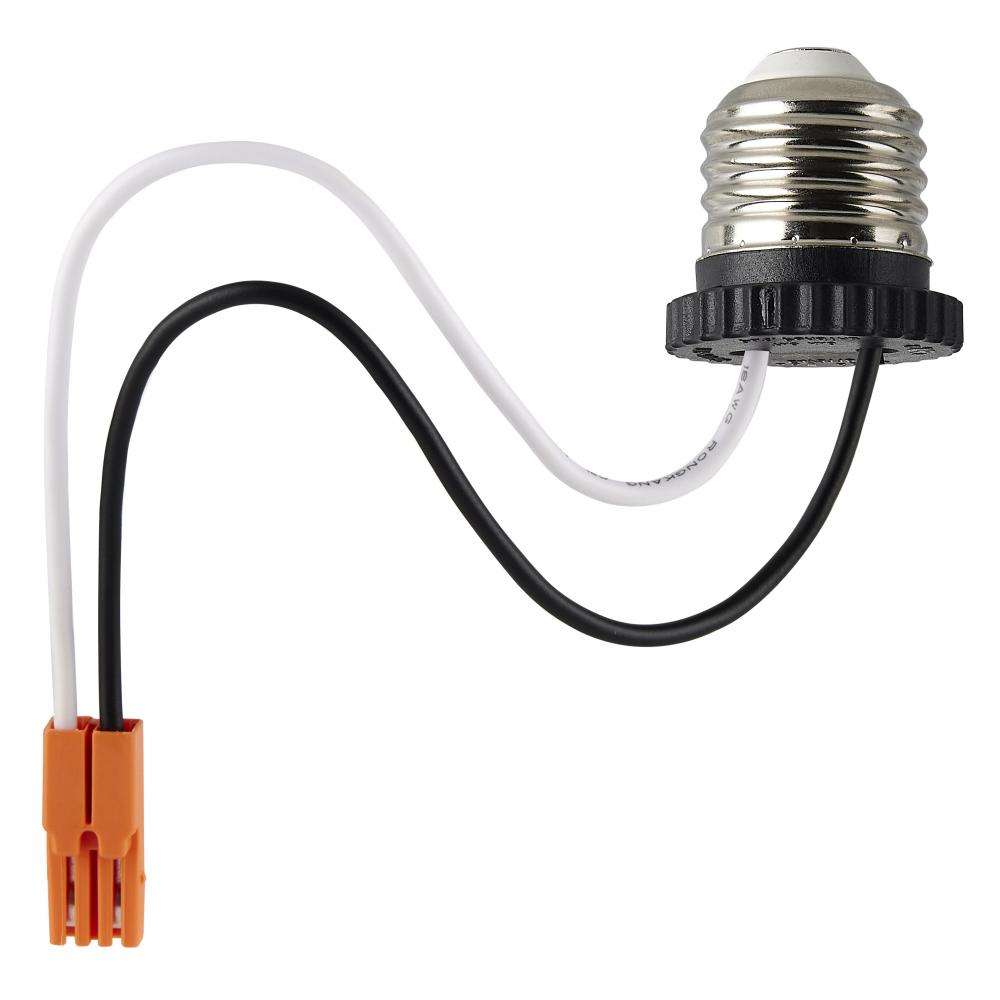

E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
Elevate your lighting with SATCO NUVO's S11643 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color temperature of 3000K, making it the perfect upgrade for existing
Material:
Die-Cast Aluminum
Minimum Compartment Size:
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Elevate your lighting with SATCO NUVO's LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring
Safety Listing:
cULus - Certified;cULus - Classified;cRUus - Recognized Component
SDS class:
LED_Lamp
Short Description:
12.5WLED/RDL/5-6/930/120V
Temperature (CCT):
3000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.6
