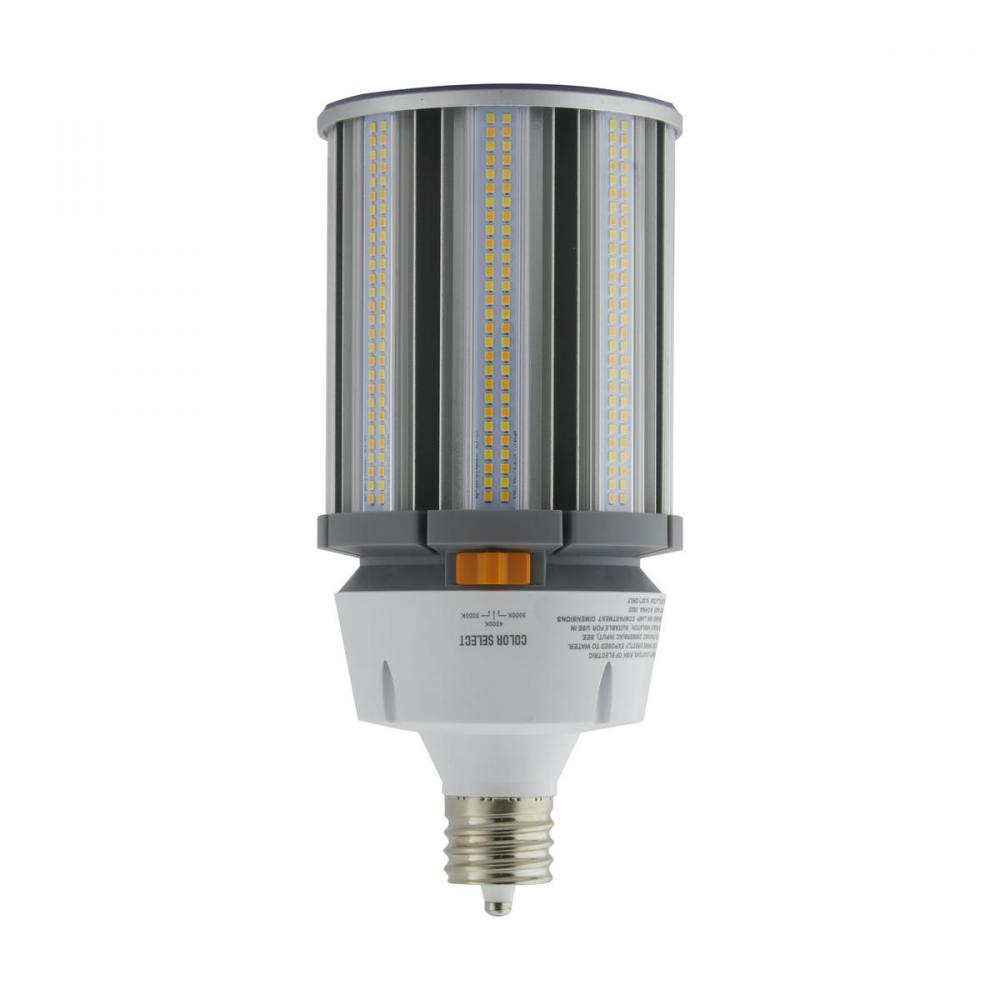

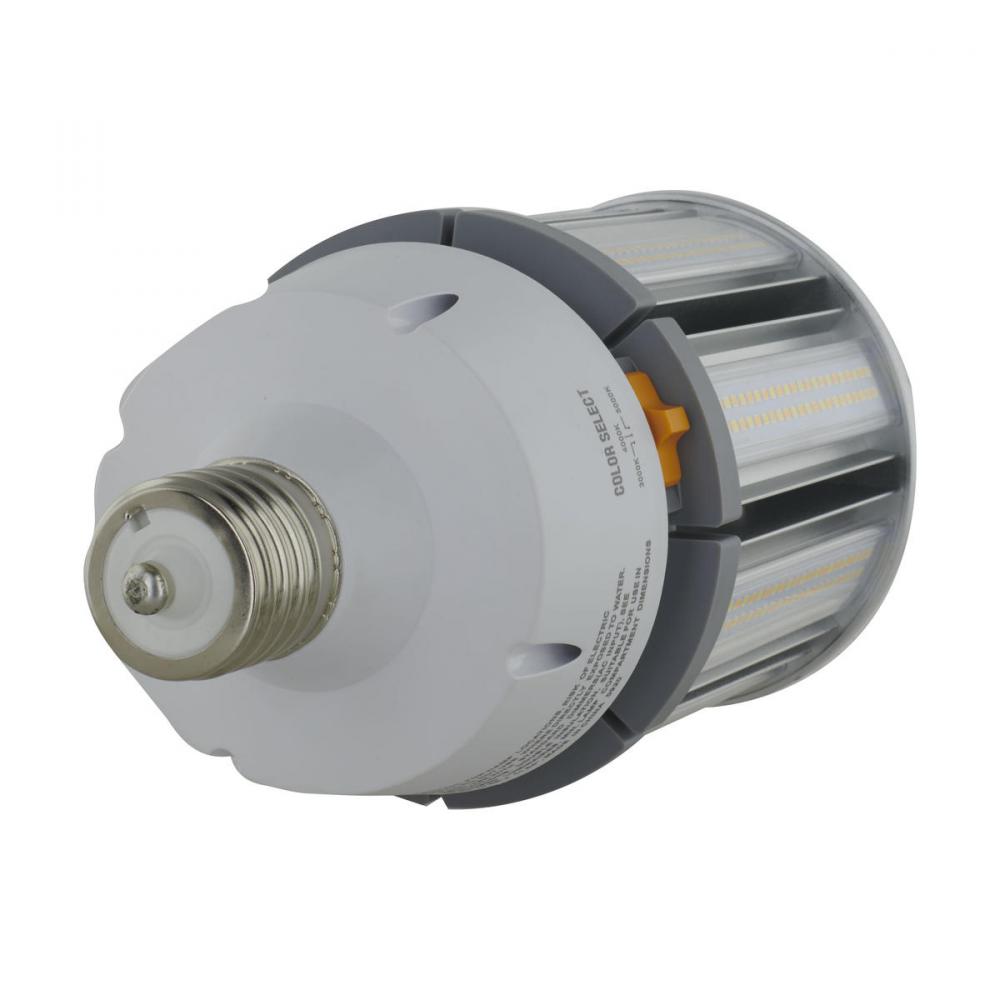

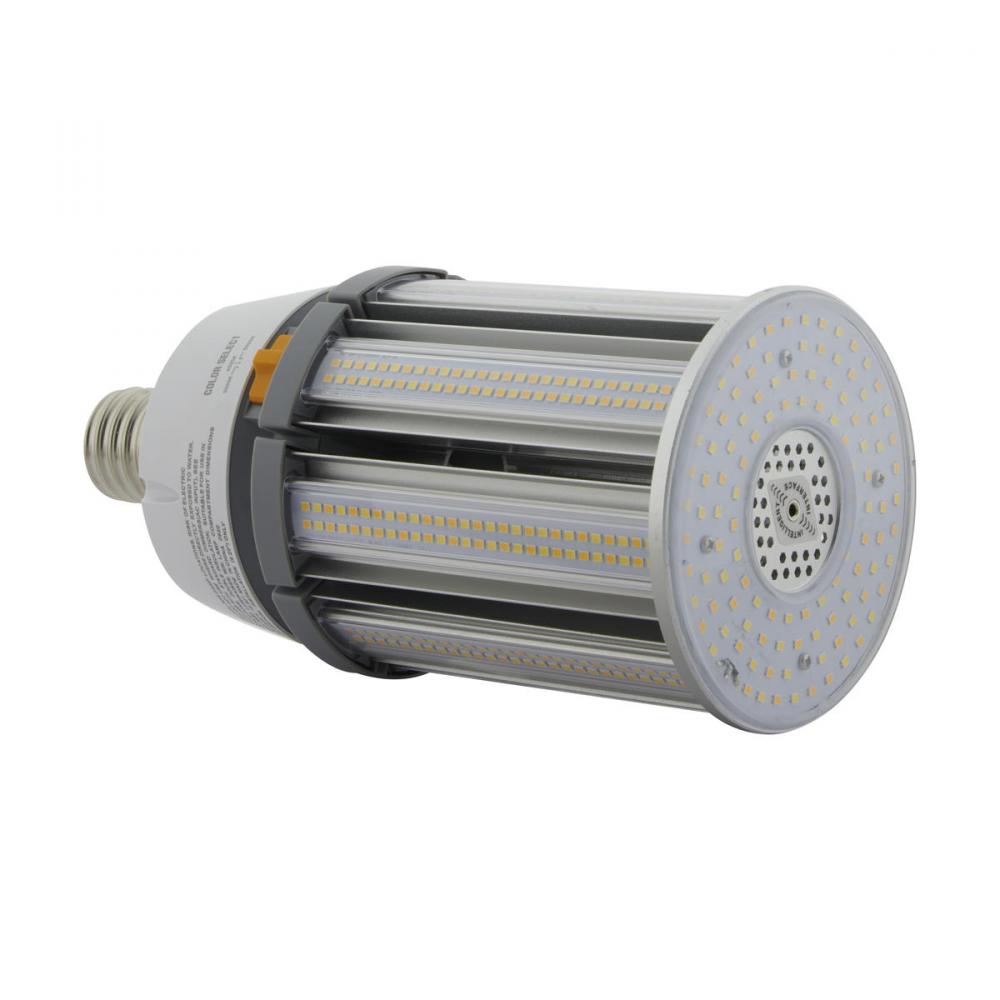

120 Watt; LED HID Replacement; CCT Selectable; Mogul extended base; 100-277 Volt; ColorQuick Technology
Sub-Category:
HID Replacements
Bulb Dimmable:
Yes-Dimmable
Bulb Kelvin:
3000K/4000K/5000K
Harmonized Codes:
8539.52.0091
Ship Carton Height:
12.97
Warranty:
5 Year Limited - Hi-Pro
Bulb Base:
Mogul Extended
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.2271
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Dimmable with optional modules
DLC Classification:
Standard; Standard
DLC ID:
PL48Y83ZQH0J; PLQPOPVP4M03
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy:
130.00/135.00/140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
Feature 1:

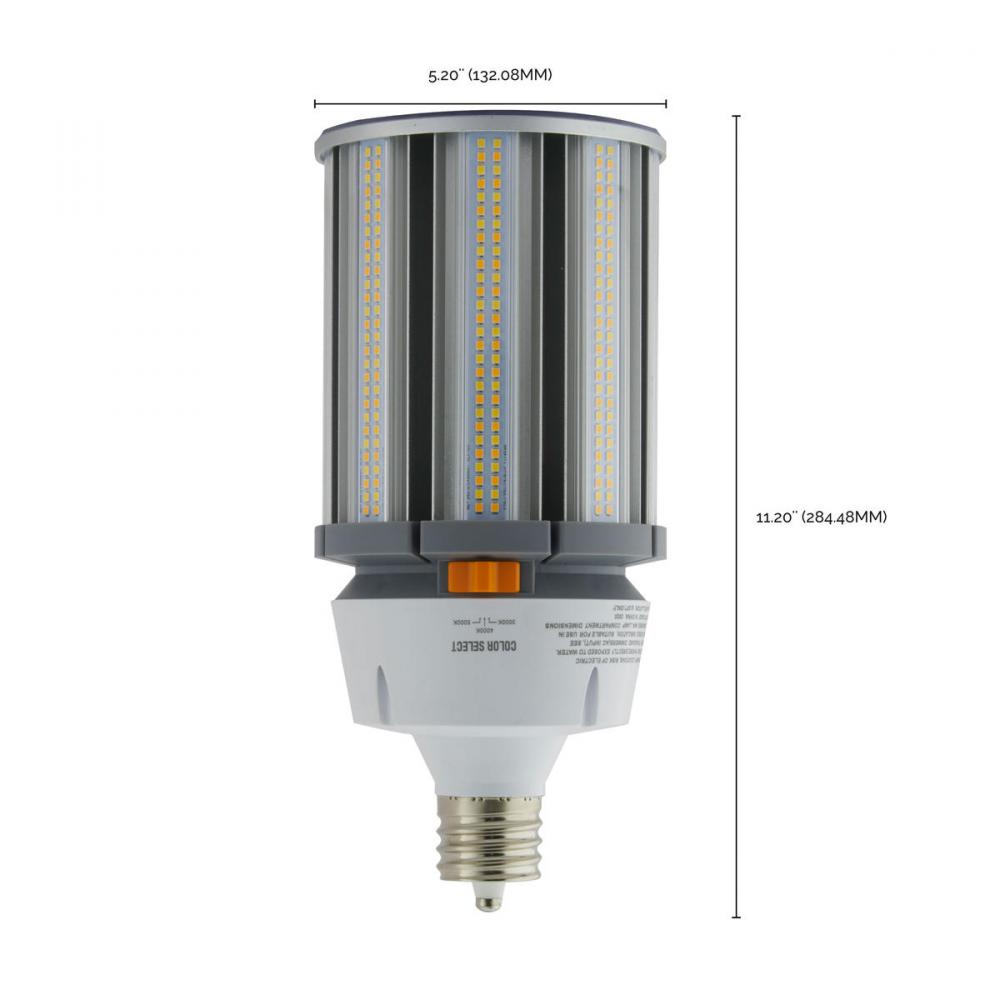

MOL: 11.61 inches, MOD: 5.16 inches
Feature 3:
Material: Aluminum and Polycarbonate
Feature 4:
CCT Selectable
Feature 6:
Rated for 50,000 hours
Feature 7:
Damp location rated for indoor and outdoor use
Feature 8:
FCC and RoHS compliant
Feature 9:
5-year limited warranty
Has Emergency Battery:
No
Housing Color:
White/Grey
Incandescent Equivalent:
750W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
Lens Material:
Polycarbonate (PC)
Long Description:
Satco's S13145 120-watt mogul extended base LED is one of the newest additions to the Hi-Pro LED family. This HID Replacement provides up to 75 percent in energy savings, advanced sensor port technology and is CCT selectable. The omni-directional light
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 9.85 in. Width: 9.85 in. Depth: 12.60 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Romance Copy:
Satco's newest additions to the Hi-Pro LED family provides up to 75 percent in energy savings, advanced sensor port technology and are CCT selectable. The omni-directional light is designed to fully and safely illuminate higher ceiling installations su
Short Description:
120W/LED/HID/CCT/EX39/100-277V
Specification Notes:
This is not to be used with a ballast
Surge Protection:
Built-in surge protection - 4KV
Total Harmonic Distortion:
14.20%
