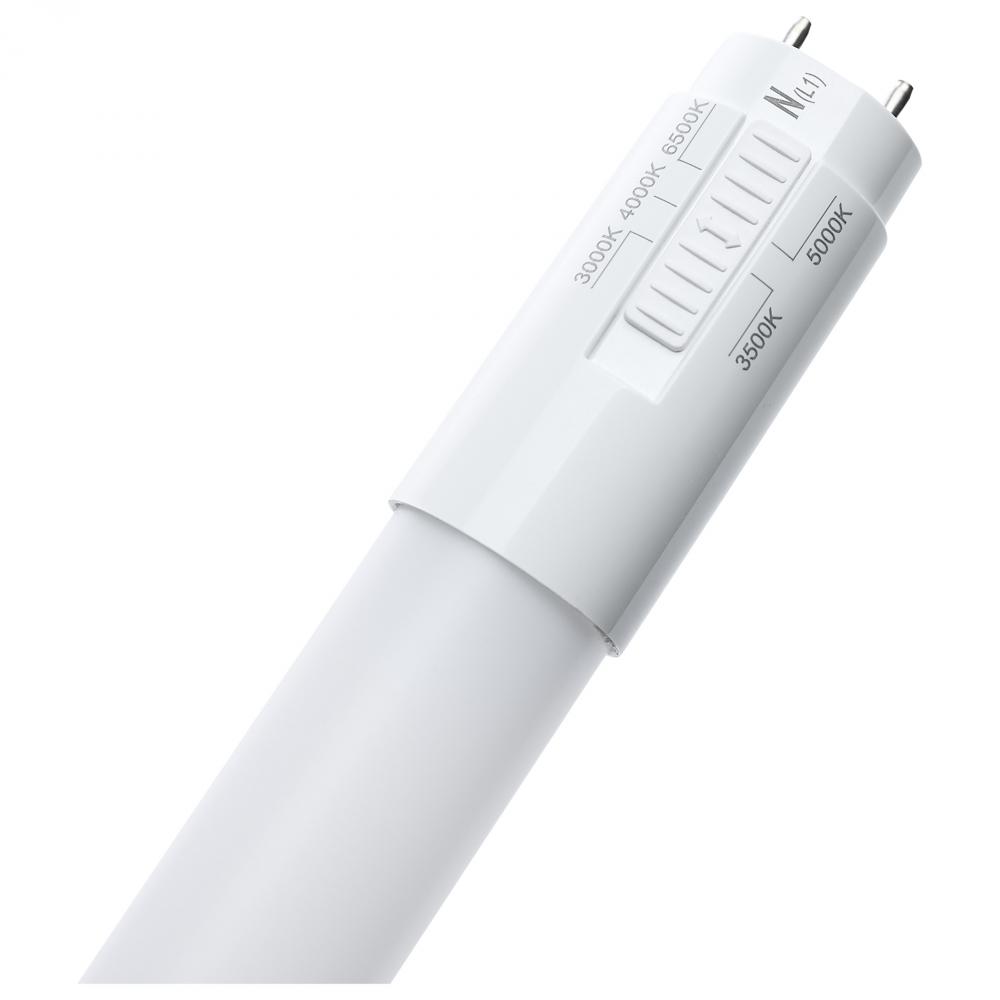

12 Watt T8 LED; 36 Inch; 30K/35K/40K/50K/65K CCT Selectable; Medium Bi Pin Base; Type B Ballast (40UTY6H)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
19
00
/
/ 1
($19.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40UTY6H
Dimensions:
Width: 1.00"
Frost
Availability:
- Manufacturer has 4129 items available.
Description
Details
Downloads
12 Watt T8 LED; 36 Inch; 30K/35K/40K/50K/65K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish
Internal #:
40UTY6H
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
Frosted
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
Harmonized Codes:
8539.52.0051
Length:
35.24
Lumens:
1450L/1500L/1550L/1550L/1500L
Ship Weight:
0.34
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.31
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
83
Dimmable Function:
120V only
Dimming Type:
Triac
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-L7WLBJ
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
120.83/125.00/129.17 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
3-ft
Feature 10:
5-CCT Selectable
Feature 2:
12W
Feature 3:
T8
Feature 4:
Medium Bi-Pin Base
Feature 5:
PET Coated Shatterproof Glass
Feature 6:
120-277V Range Voltage
Feature 7:
Dimmable in 120V Applications
Feature 8:
Type B Ballast Bypass
Feature 9:
Low Optical Flicker - Less than 2-percent flicker
Flicker Free:
Yes
Flourescent Equivalent:
25W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended;Single Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO|NUVO's S11661 LED 3-foot, 12W Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extend
Material:
Glass
Nominal Length:
36
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility
Shatter Proof Text:
PET Coated
Short Description:
12T8/LED/36-5CCT/DIM/LF/BP
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
12W
Additional Information:
- Country of Origin- China
