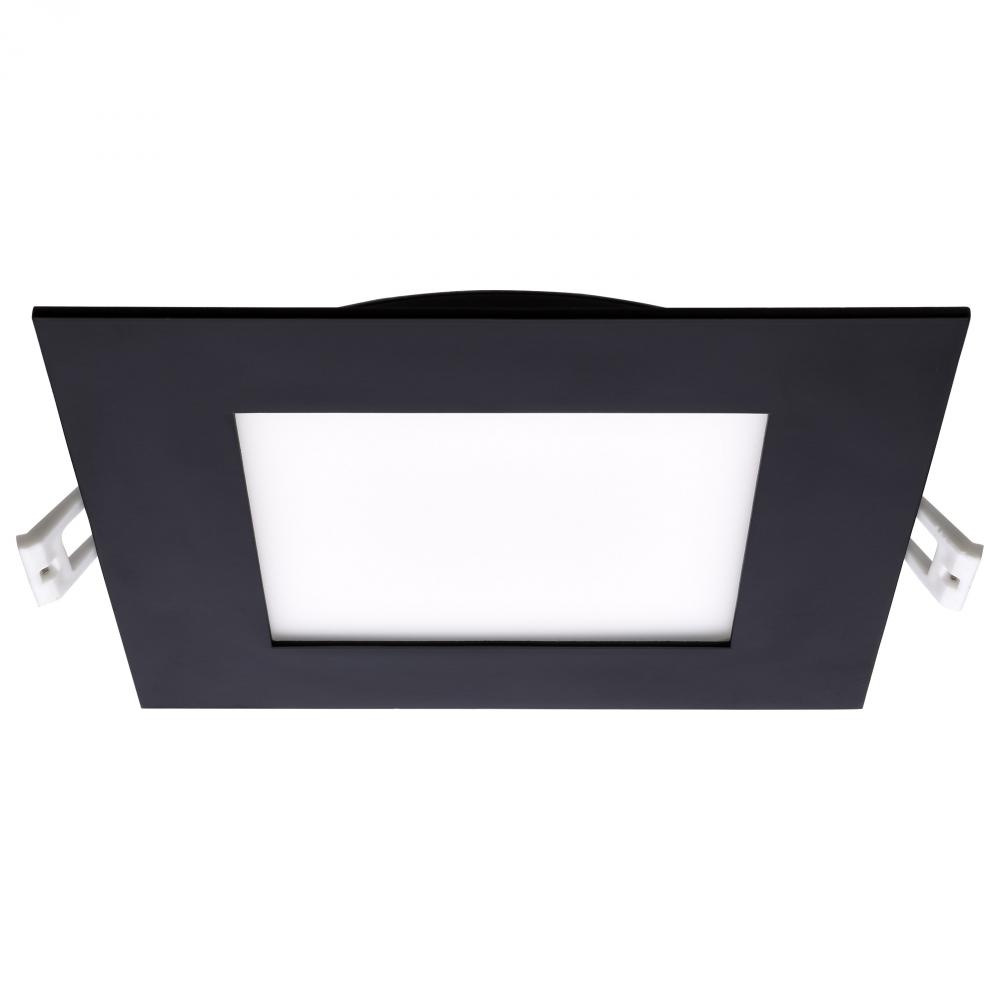

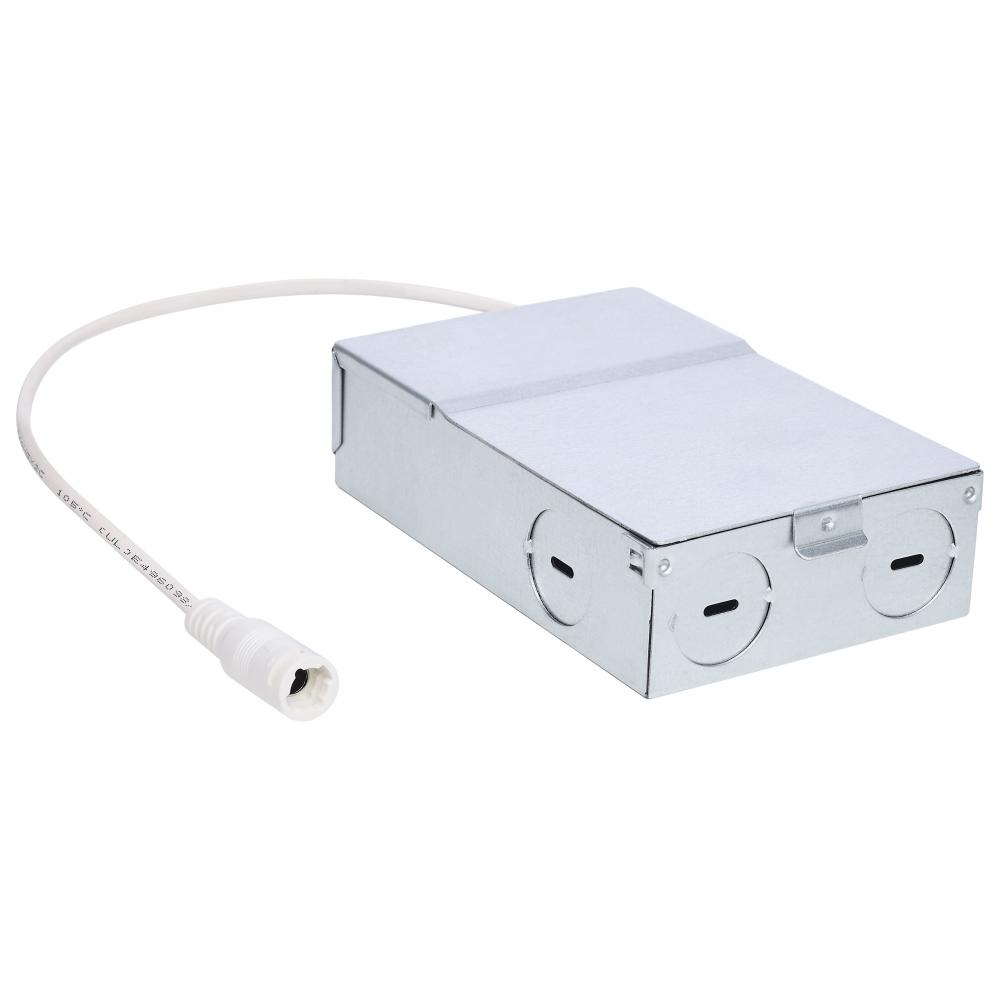

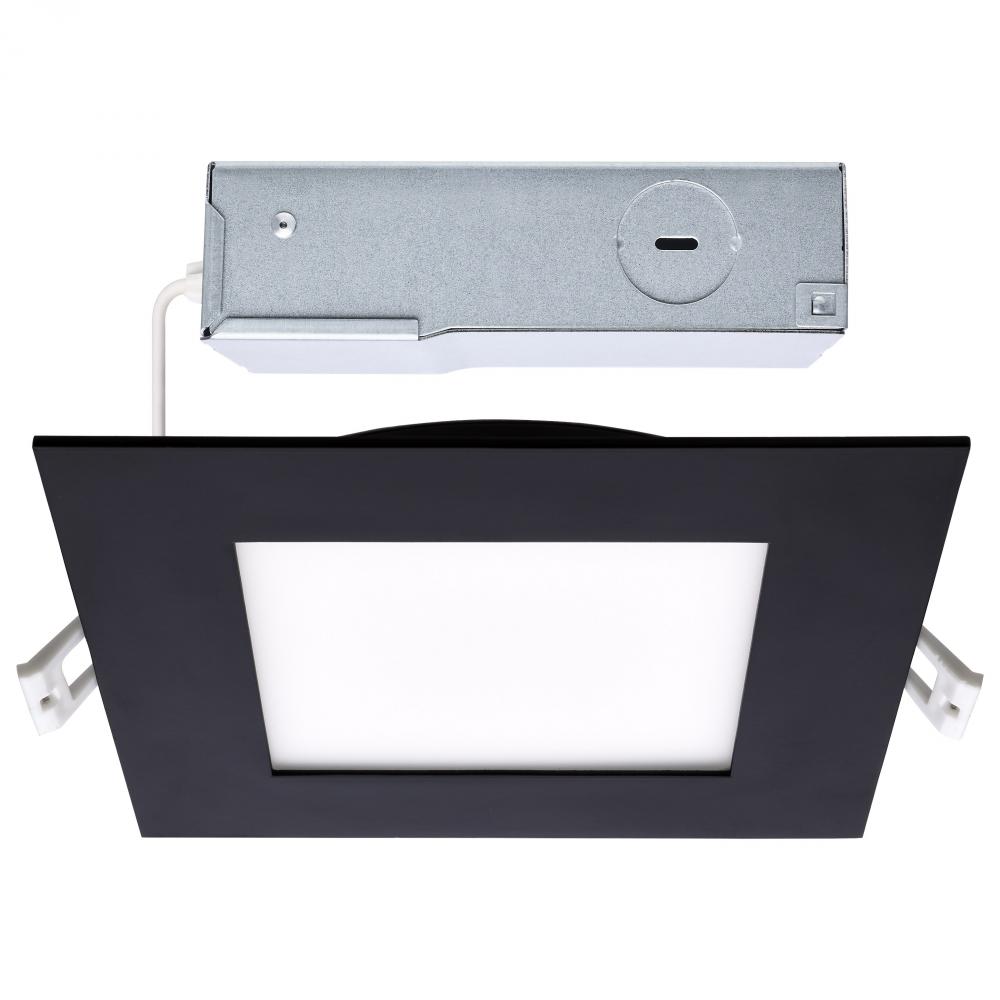

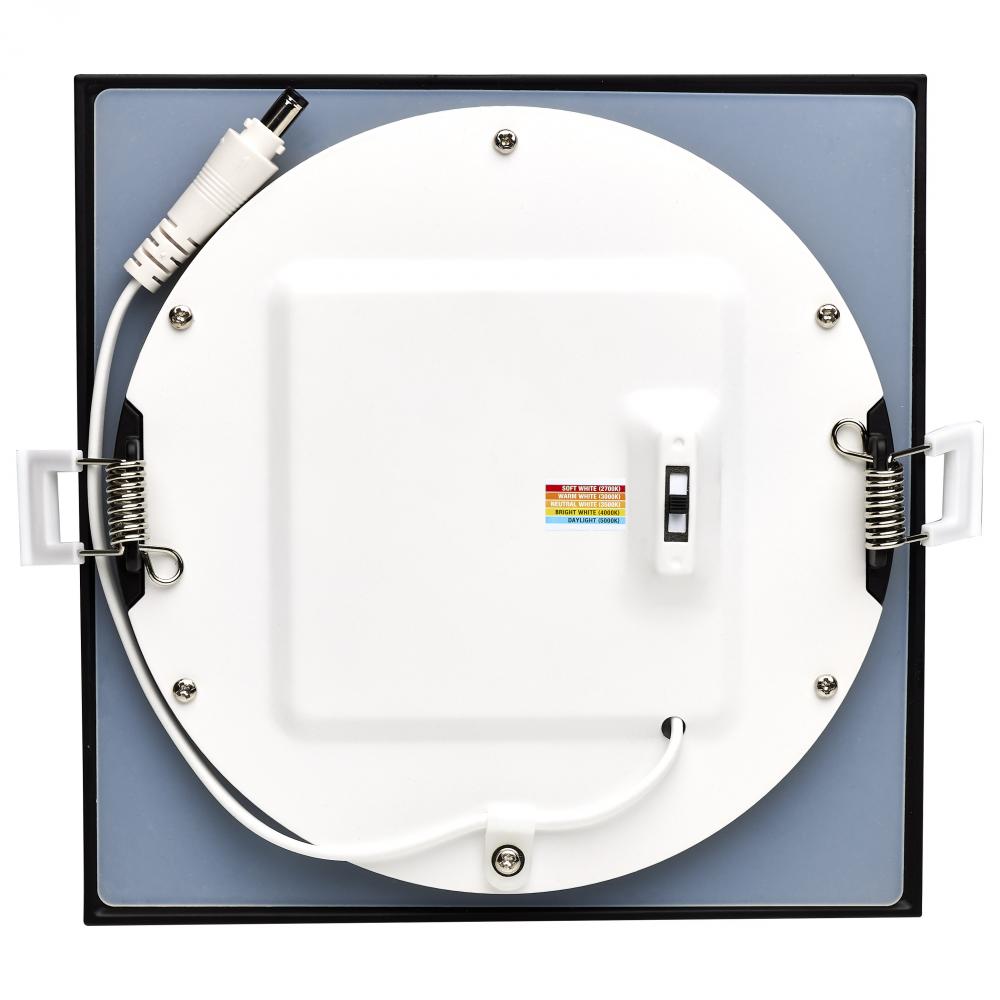

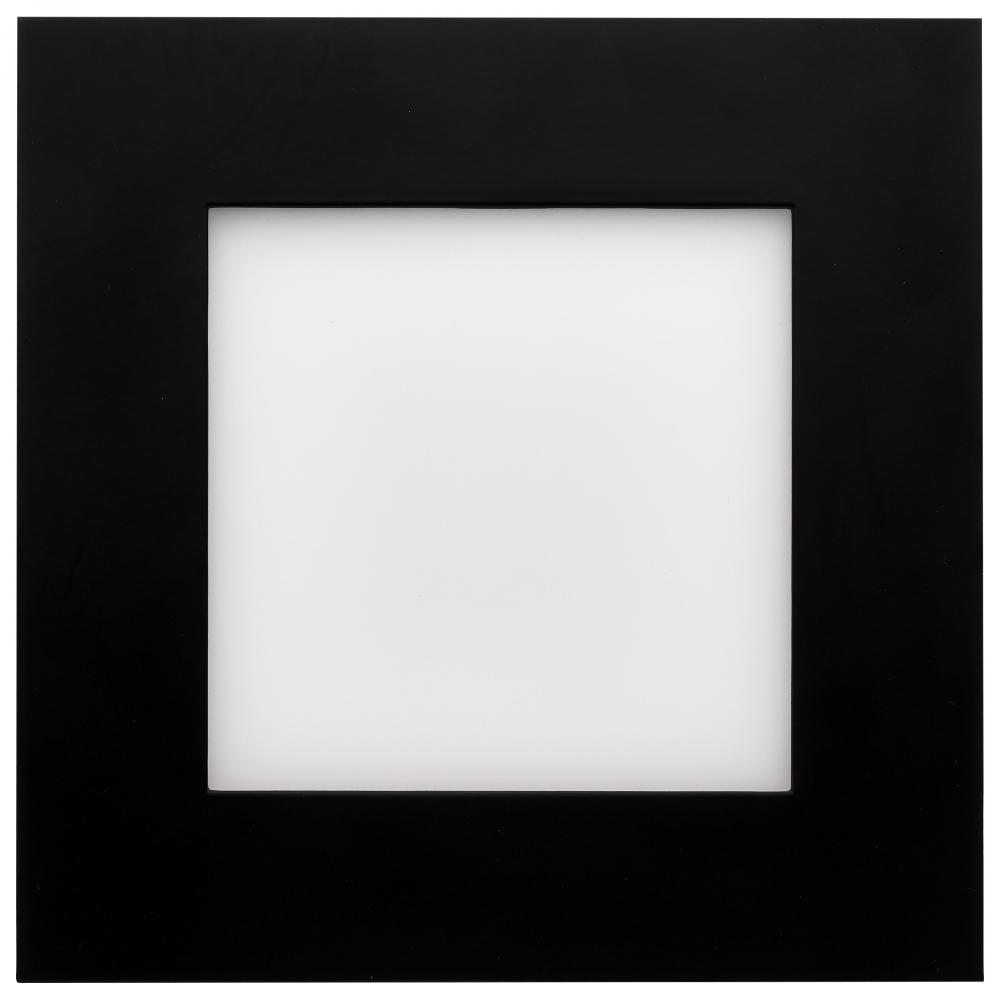

12 Watt LED Direct Wire Downlight; 6-Inch; CCT Selectable; Square; Remote Driver; Black Finish
$45.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer may be Out Of Stock.
Dimensions
Height: 0.99"
Width: 6.75"
Product Overview
12 Watt LED Direct Wire Downlight; 6-Inch; CCT Selectable; Square; Remote Driver; Black Finish
Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
6.97
Each Length:
7.95
Each Width:
2.17
Length:
6.75
Lumens:
1050L
Tariff Code:
9405.11.6010
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.120A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
Yes
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Line Voltage
Each Cube:
0.0696
Each Quantity:
1
Efficacy:
87.50 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4480263
FCC Compliant:
Yes
Feature 1:
Black Finish
Feature 10:
Airtight Rated
Feature 2:
6-Inch Square
Feature 3:
1050 Lumens
Feature 4:
12W LED is a perfect replacement for 75W Incandescent applications
Feature 5:

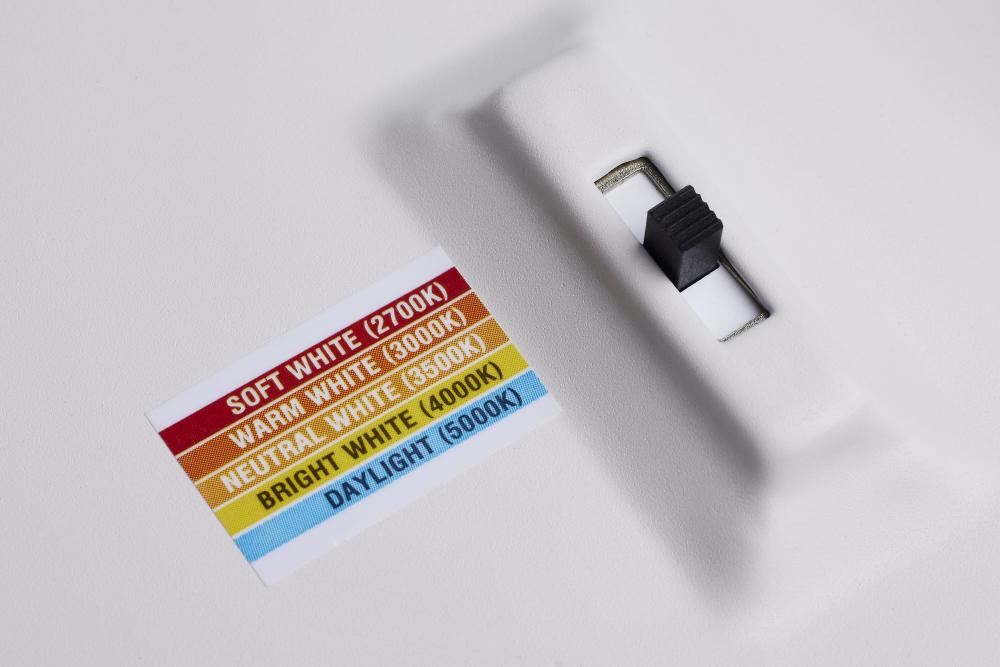

CCT Selectable 2700K/3000K/3500K/4000K/5000K
Feature 6:
90 CRI
Feature 7:
110-Degree Beam Angle
Feature 8:
Wet Location Rated
Feature 9:
IC Rated
Finish Family:
Black
Fixture shape:
Square
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor and Outdoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO'S S11877R1 Plus Series LED Slim Fit Downlights offer exceptional performance and a sleek black 6-inch square trim. ColorQuick Technology allows for the selection from five CCT choices at installation to create the perfect atmosphere for any
Material:
Aluminum
Mounting Height:
1.34
Mounting Length:
6.18
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO'S Plus Series LED Slim Fit Downlights offer exceptional performance and with round and square trims in white or black finish, they're a great choice for a variety of decorative styles. ColorQuick Technology allows for the selection from
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
12WLED/DW/6/CCT-SEL/SQ/RD/BK
Sloped Ceiling Compatible:
Yes
Specification Notes:
Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
Black
Trim Material:
Aluminum
Up Down Installation:
Down
Wattage Selectable:
No
Weight Lb.:
1.19
