Part Number: 40J8NQA / Vendor ID #: 4799

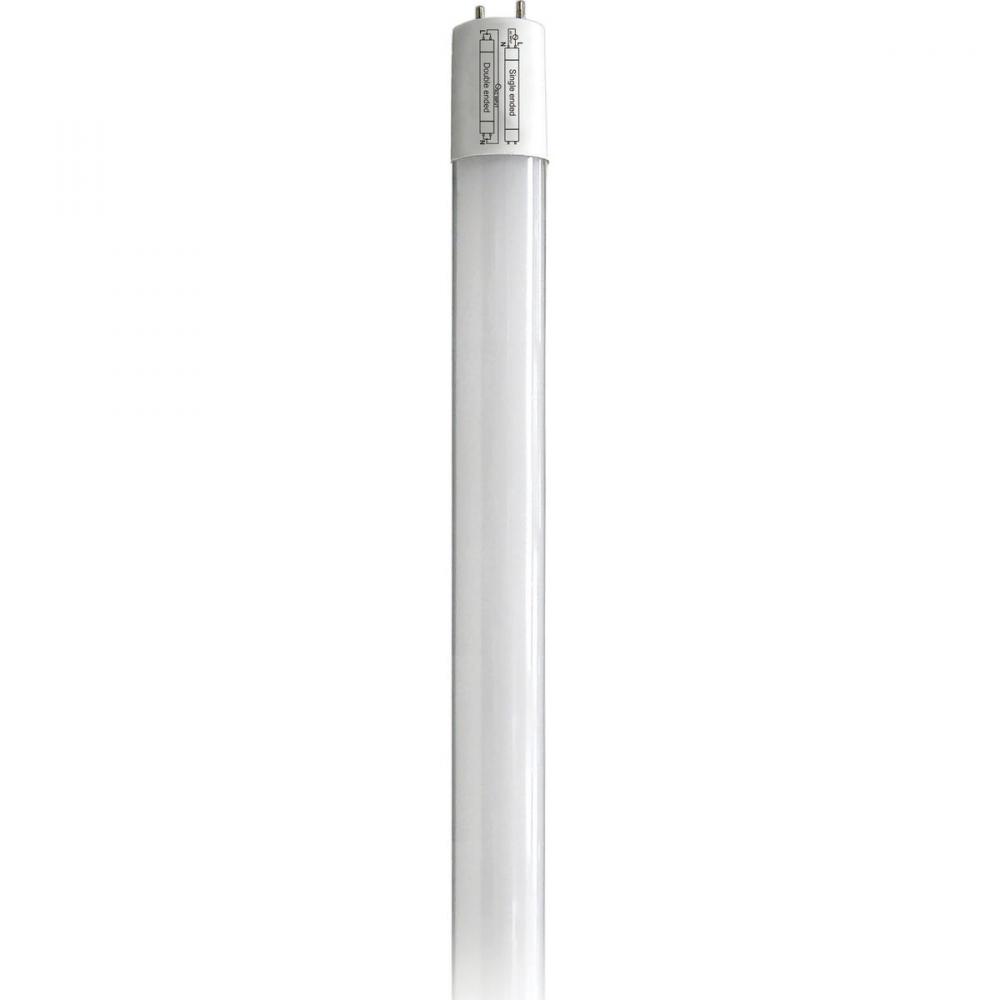

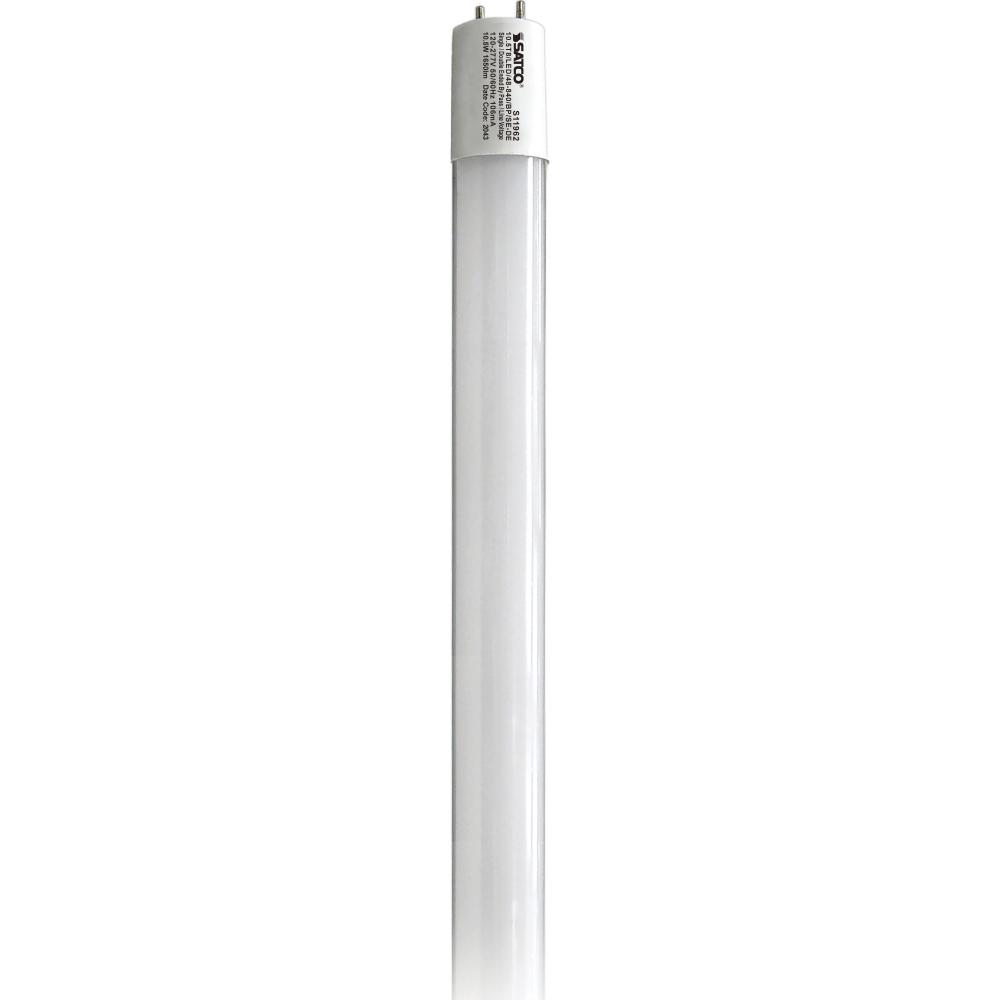

10.5 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B;
$14.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 12257 items available.

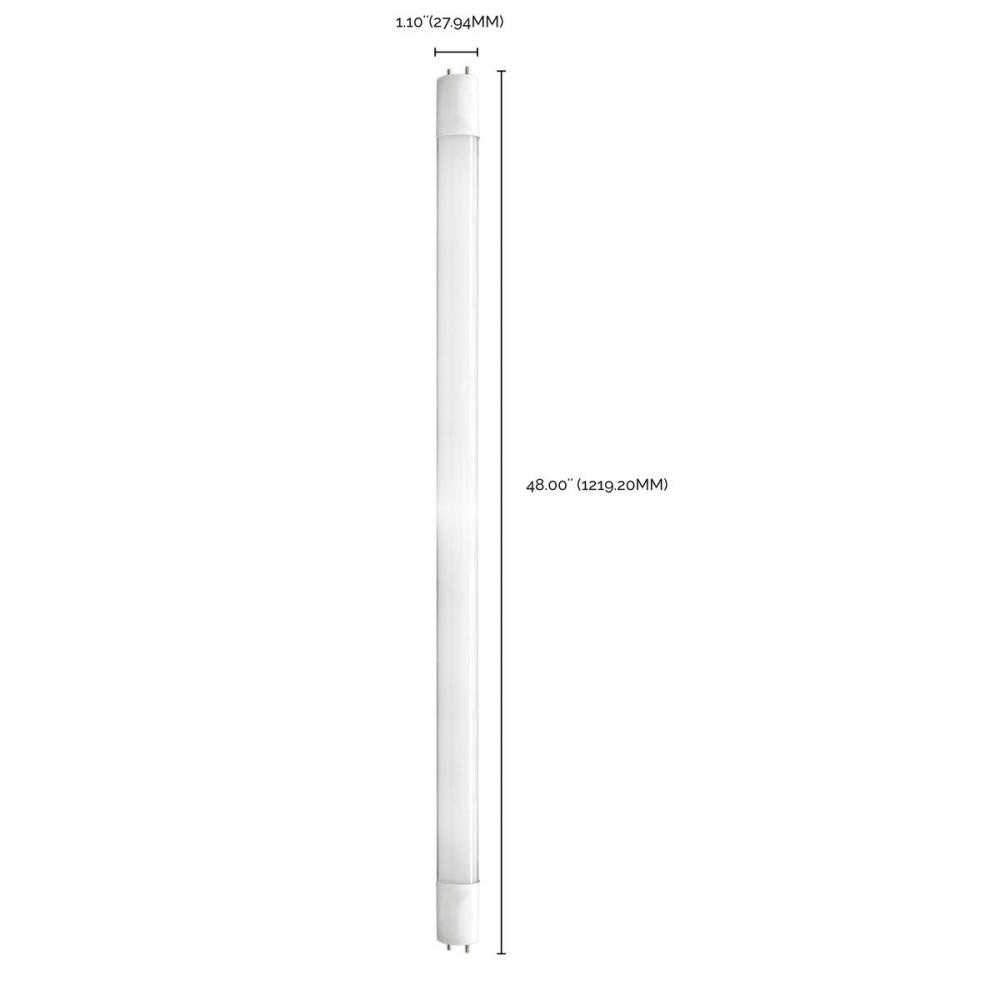

Dimensions
Width: 1.10"

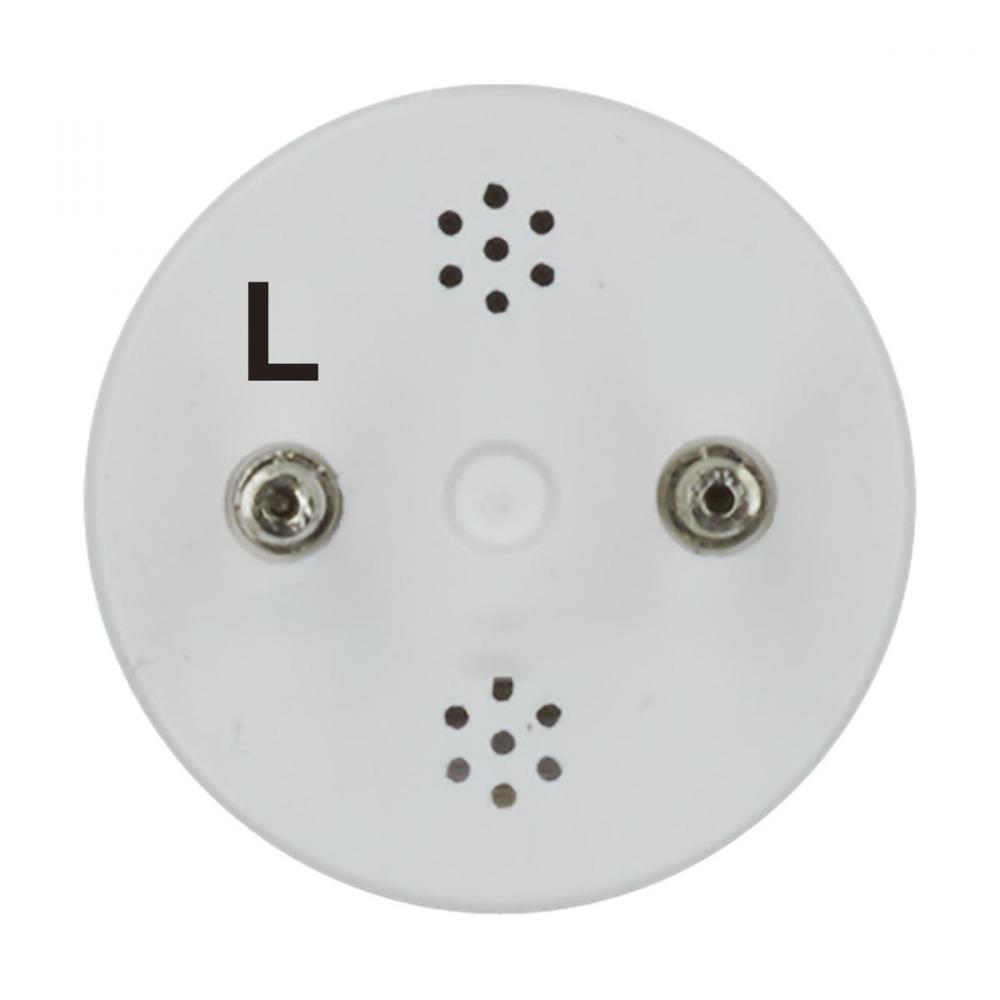

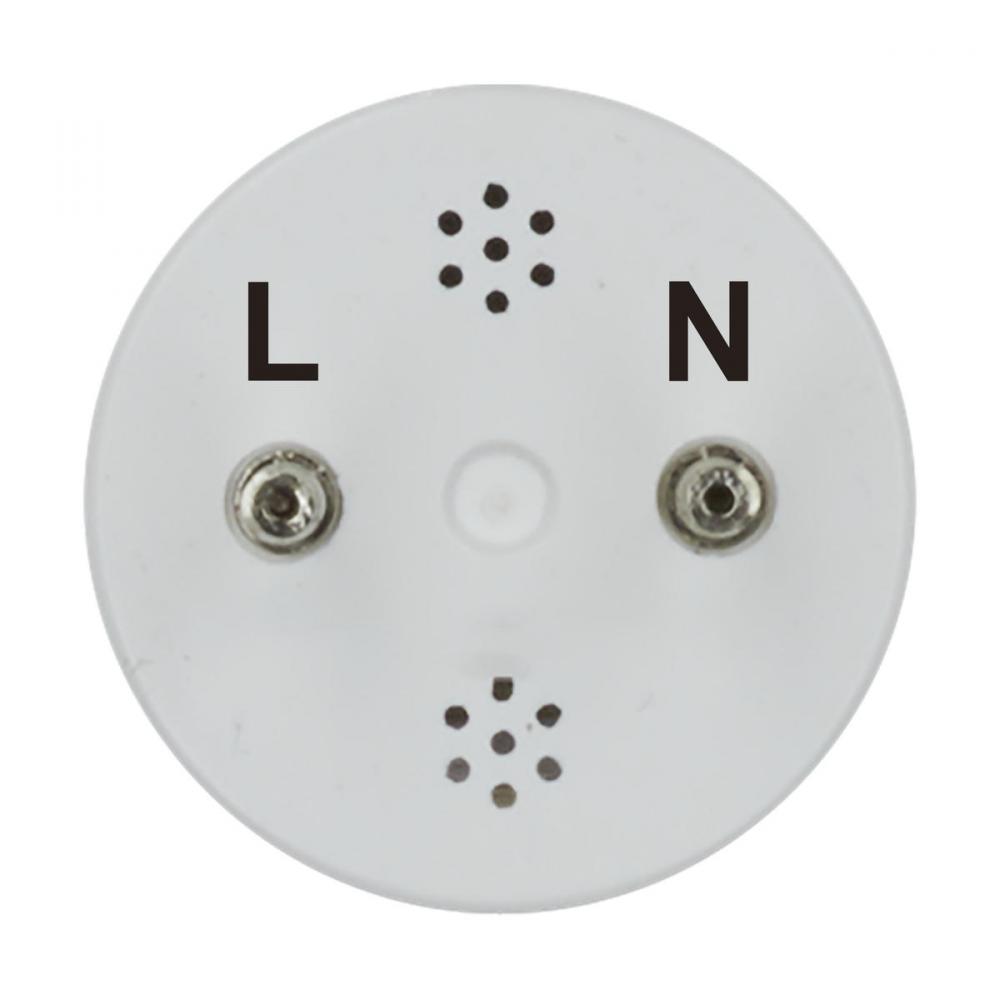

10.5 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
1601-2600
Kelvin:
3501-4000
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
T8
Diameter:
1.1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1700L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.58
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.43
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss White
Burning Position:
Universal
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLQZ0C4WU6ZN
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
161.90 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
4-ft length
Feature 10:
210-degree beam angle
Feature 2:
10.5W
Feature 3:
25W/28W/30W/32W Fluorescent Replacement
Feature 4:
Ballast Bypass Type B
Feature 5:
120-277V Range Voltage
Feature 6:
Damp location rated
Feature 7:
Suitable for use in enclosed fixtures
Feature 8:
rated for use in damp locations
Feature 9:
Glass Tube
Flicker Free:
Yes
Flourescent Equivalent:
25W/28W/30W/32W
Housing Color:
White
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens Finish:
Gloss White
Lens Material:
Glass
Location Rating:
Damp
Long Description:
SATCO's S11962 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, h
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
9
RoHS Compliant:
Yes
Romance Copy:
SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is b
SDS class:
LED_Lamp
Short Description:
10.5T8/LED/48-840/BP/SE-DE
Specification Notes:
Built-in shock resistant circuit - (not hot until both ends are installed)
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
10.5W
Country of Origin- China
